Altelix Vented Fiberglass Weatherproof NEMA Enclosure with Cooling Fan, 200W Heater and 120 VAC Outlets

Altelix SKU: NFC161208VFHA1

$557.88

Lead Time: ESTIMATED Lead Time is 1-2 Business Days From Time of Order Entry

Availability: In Stock as of 5/6/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
  • Includes Equipment Mounting Plate
  • Dual 4" Vents and Thermostat Controlled Cooling Fan
  • Thermostat Controlled 200W Heating System
  • 120VAC Outlets
  • Dual Quarter-Turn Door Latches
  • Bonus Aluminum Bottle Opener Key Now Included!
  • (4) Mounting Feet Included
  • NEMA Type 3R, 3RX / IP24 Rated
  • Optional Lockable Latch Sets Available
Applications
  • Outdoor WiFi Equipment
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment
  • Building Maintenance Areas
  • Building Rooftop or Basement
  • Parking Lots and Garages
  • Warehouses & Loading Docks
  • Weather Stations

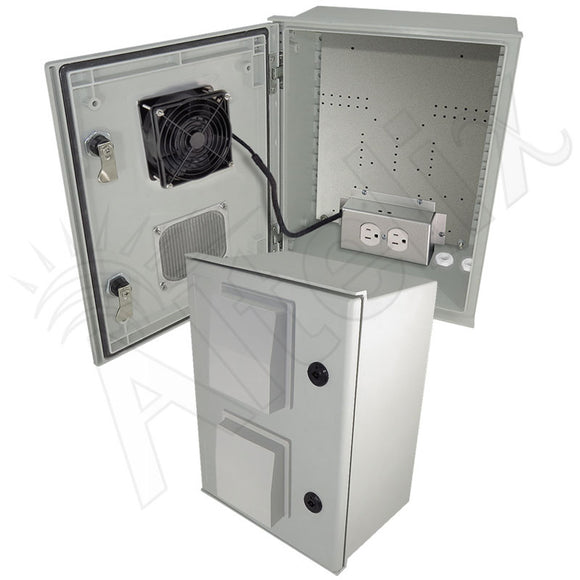

The Altelix Heated and Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

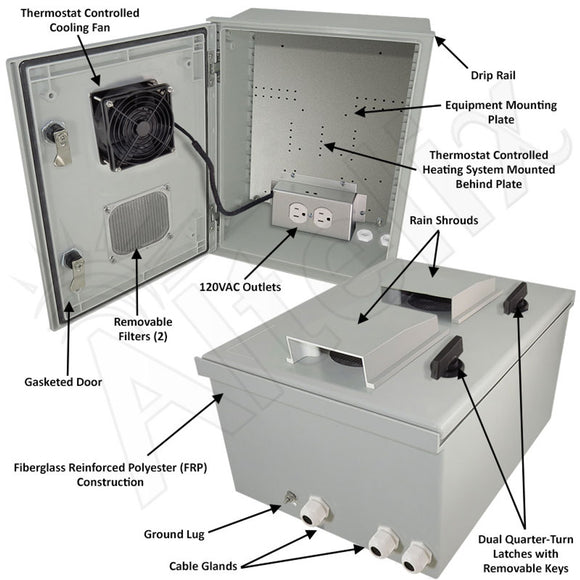

Construction and Features
This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Power
This configuration consists of the vented fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC power outlets. The outlet box is easily removable to facilitate wiring to an external power source.

Cooling Fan Ventilation
This enclosure features dual 4" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the internal aluminum mesh filters are removable for cleaning. Dual fans are also available by request.

This enclosure is also available with a lower fan turn-on temperature of 85°F (30°C). See NFC161208VFHA1-85.

Heater
Ideal for cold environments, this model also features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets. An insulated extreme cold weather model is also available with a 400W heating system.

Equipment Mounting Plate
The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-300-08) and stainless steel (model NMKX-300-08).

Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
