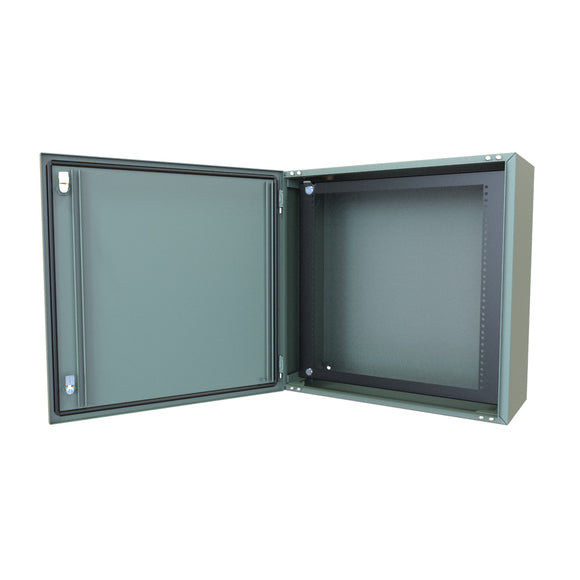

Mounting Rack Rail Swing Frame ESF Series For use with the Eclipse Enclosure Series

$239.43

SKU: ESF2424 Hammond Manufacturing

  • Provides 19" rack mounting with full EIA spacing (punched holes).
  • Hinges allow easy equipment access.
  • Can be hinged from either side.
  • Slotted quarter turn latches provide closure.
  • Optional locking quarter turn latch available by ordering Part No. EQTRL
  • Adding optional locking quarter turn latches provides added security.
  • Complete with 4 depth adjustment brackets.
  • Mounting hardware sold separately.
  • Hardware kit maintains UL, CSA and NEMA ratings when field installed.
  • Finished in black.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.

Accessories

Fits Enclosure Size Rack Spacing Rack
Part No. (AxB) Width Units
ESF2424 24x24 19.00 11U
ESF3024 30x24 19.00 14U
ESF3624 36x24 19.00 17U
