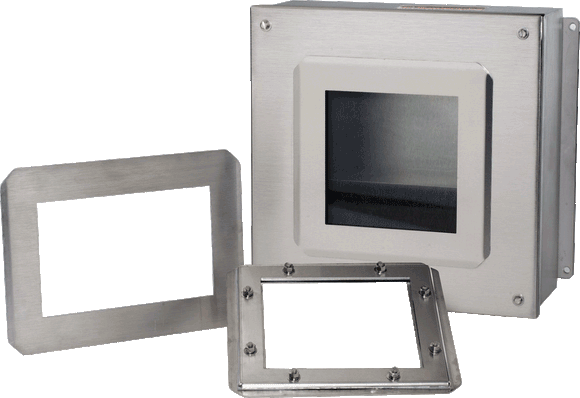

Adalet's window kits for stainless steel enclosures with windows are designed to be used on general purpose NEMA Type 4, 4X, 12 & 13 enclosures.
These Type 316L stainless steel window kits are easily installed by making a cutout in the enclosure door and securing the window and frame in place. The silicone gasket provides a water, oil and dust-tight seal around the perimeter of the window and frame. All mounting hardware is provided, and alternate window sizes and materials are available.
Features
- Type 316 stainless steel frame and retaining plate
- Watertight silicone gasket
- Stainless steel hardware
- Tempered plate glass
- Installed on any stainless steel enclosure 12-16 gauge material
- Various sizes from 3x3 through 24x24
Material
- 14x16 gauge / Type 316L stainless steel
- Stainless steel hardware
- #3 or #4 brushed finish
Catalog Spec Sheet
| Catalog Number |
Viewing Area |
| EWK-0303SS6 |
3" X 3" |
| EWK-0503SS6 |
5" X 3" |
| EWK-0505SS6 |
5" X 5" |
| EWK-0703SS6 |
7" X 3" |
| EWK-0707SS6 |
7" X 7" |
| EWK-0905SS6 |
9" X 5" |
| EWK-0909SS6 |
9" X 9" |
| EWK-1111SS6 |
11" X 11" |
| EWK-1303SS6 |
13" X 3" |
| EWK-1313SS6 |
13" X 13" |
| EWK-1515SS6 |
15" X 15" |
| EWK-1705SS6 |
17" X 5" |
| EWK-1711SS6 |
17" X 11" |
| EWK-1717SS6 |
17" X 17" |
| EWK-2315SS6 |
23" X 15" |
| EWK-2424SS6 |
24" X 24" |
