The quick release latch series is designed to house terminal blocks, instrumentation, and electrical controls.  Suitable for indoor or outdoor applications, these enclosures protect against elements such as oil, water, dirt, and dust.  The raised cover is designed for use when components require additional depth.

Standard Features

•  Eleven standard sizes available
•  Padlock quick release latch for quick entry
•  Raised cover for additional usable depth
•  Full length stainless steel hinged cover
•  Integral mounting flange
•  Cover opens full 180°+
•  Mounting bosses with threaded brass inserts for mounting panel installation
•  Poured polyurethane gasket provides water-tight, dust-tight seal
•  Light weight and impact resistant

Design Options

•  Mounting panels
•  Drilled entries and cut-outs available
•  Molded in custom colors
•  Silk screening, paint, and decals

Material

•  Hot compression molded fiberglass reinforced polyester (thermoset)
•  Non-corrosive and UV resistant
•  Smooth surface, no color variations, swirls, or color pockets
•  Non-flame propagating and chemical resistant
•  Color described as Light Gray

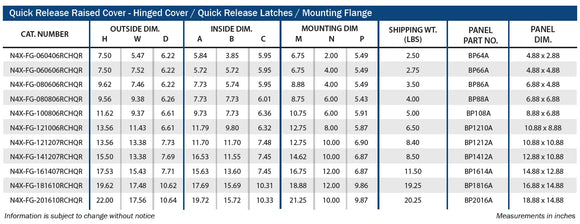

Catalog Spec Sheet

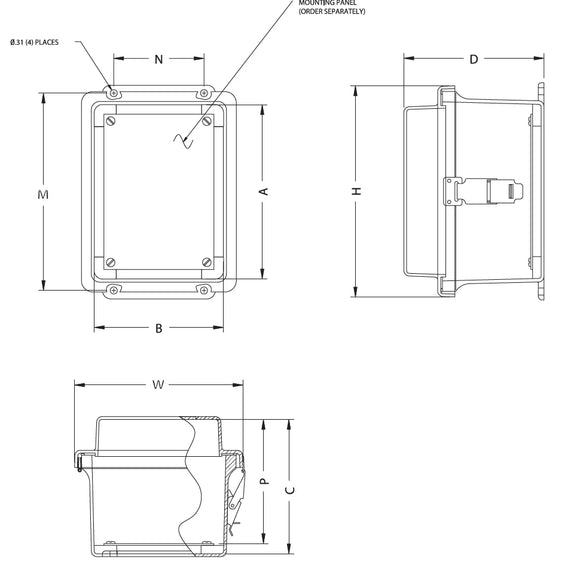

Drawings:
