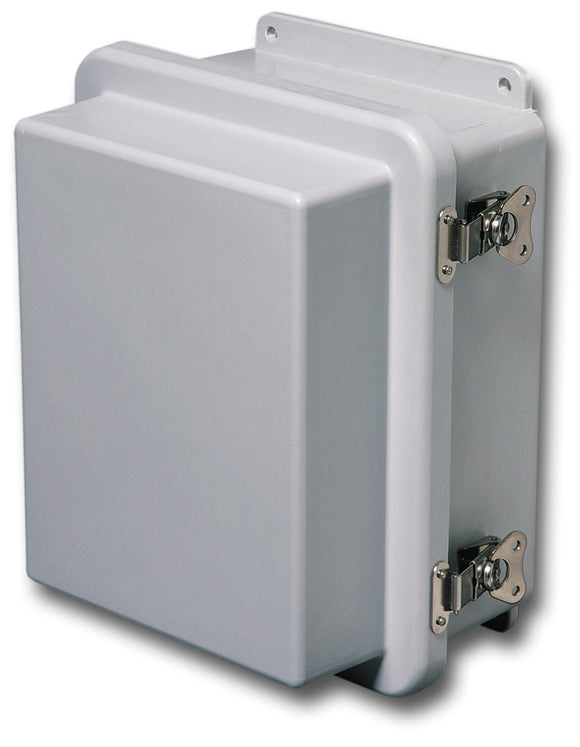

RCHTL enclosures can be used indoors and outdoors to provide a high degree of protection against dust, dirt, oil, and water. It is designed to house terminal blocks, instrumentation, and electrical controls. This product is ideal for applications that require additional depth.
Standard Features
• Eleven standard sizes available
• Twist latch for quick entry
• Raised cover for additional usable depth
• Full length stainless steel hinged cover
• Integral mounting flange
• Cover opens full 180°+
• Mounting bosses with threaded brass inserts for mounting panel installation
• Poured polyurethane gasket provides water-tight, dust-tight seal
• Light weight and impact resistant
Design Options
• Mounting panels
• Drilled entries and cut-outs available
• Molded in custom colors
• Silk screening, paint, and decals
Material
• Hot compression molded fiberglass reinforced polyester (thermoset)
• Non-corrosive and UV resistant
• Smooth surface, no color variations, swirls, or color pockets
• Non-flame propagating and chemical resistant
• Color described as Light Gray
Drawings:
| .pdf files | .dwg files |
| N4X-FG-060406RCHTL_PDF | N4X-FG-060406RCHTL_DWG |
| N4X-FG-060606RCHTL_PDF | N4X-FG-060606RCHTL_DWG |
| N4X-FG-080606RCHTL_PDF | N4X-FG-080606RCHTL_DWG |
| N4X-FG-080806RCHTL_PDF | N4X-FG-080806RCHTL_DWG |
| N4X-FG-100806RCHTL_PDF | N4X-FG-100806RCHTL_DWG |
| N4X-FG-121006RCHTL_PDF | N4X-FG-121006RCHTL_DWG |
| N4X-FG-121207RCHTL_PDF | N4X-FG-121207RCHTL_DWG |
| N4X-FG-141207RCHTL_PDF | N4X-FG-141207RCHTL_DWG |
| N4X-FG-161407RCHTL_PDF | N4X-FG-161407RCHTL_DWG |
| N4X-FG-181610-RCHTL_PDF | N4X-FG-181610RCHTL_DWG |
| N4X-FG-201610RCHTL_PDF | N4X-FG-201610RCHTL_DWG |
