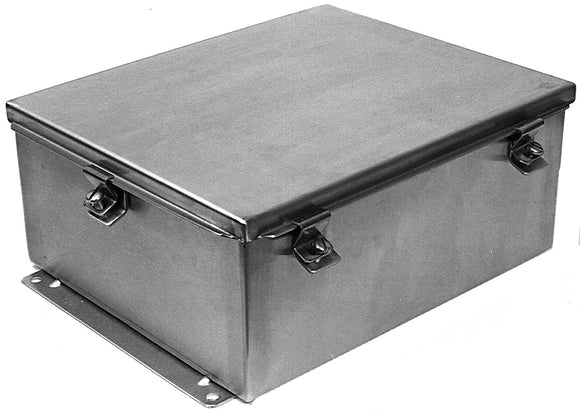

JN4XSS enclosures have continuously welded seams ground to a smooth finish. They also come complete with four 10-32 weld nuts (for mounting optional panels). Grounding studs are provided on the inside of the box and door. Wall mounting back brackets are welded on the top and bottom outside. The JN4XSS cover is sealed with a closed-cell, silicone, foam-in-place gasket and is secured to the enclosure with stainless steel door clamping hardware on four sides. Our new silicone gasket is UV Resistant, Chemical Resistant, and has a broad temperature range. There are no knock-outs or holes in the cover or body. A hardware kit is included.
Standard Features
- Corrosion resistant
- Lift-Off Cover
- Wall mounting flange/feet
- Closed-cell, silicone, foam-in-place gasket
- Stainless steel clamps and screws
- Four #10-32 weld nuts for optional mounting panel
- Grounding studs on inside of box and cover
Design Options
- Painted steel and stainless steel mounting panel
- Laser cut entries or cut-outs
- Terminal blocks or other component assembly
- Swing panel / dead front panel
- Padlock provisions
- Quick release latches
- Epoxy paint or powder coating
- Custom sizes
- 12 gauge material thickness
Material
- 12 and 14 gauge / Type 304 stainless steel
- Stainless steel hardware
- #3 / #4 brushed finish
