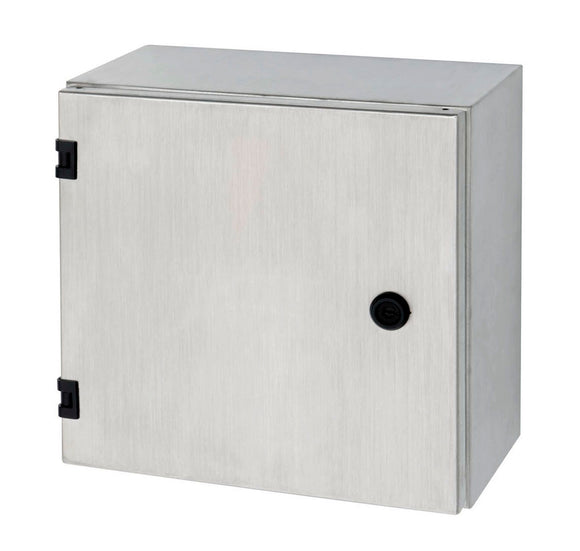

Victory Series (AVSS) 304 Stainless Steel Enclosures with Hinge and Quarter Turn Latches

Adalet SKU: AVSS-121206-M10000


Lead Time: All Adalet products vary, we can find this information quickly for you. Currently Stainless Steel has a 5-6 week lead time and Fiberglass has an 8-10 week lead time.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at and we can give you the most accurate and up-to-date information.

Victory Series enclosures feature a streamlined design with a flush door and latches that accommodate any electrical or electronic application.

Adalet has designed these enclosures to use quarter-turn latches instead of hold-down clamps, which are often inadequately secured after servicing, leaving equipment vulnerable to the elements. The Victory Series stainless steel electrical enclosures are used indoors and outdoors to house such items as electronic and electrical controls; instrumentation systems; and pneumatic, hydraulic and machine tool controls.

Designed to provide protection against dust, dirt, oil and water, these custom stainless steel enclosures are used in petrochemical plants, dairies, breweries, food processing areas and similar environments where they are subject to frequent high pressure hosing and generally wet conditions. They are also designed for use in areas where severe corrosion problems exist.


Standard Features

  • Hinged cover with removable stainless steel hinge pin
  • Polyamide coated zinc slotted quarter turn latch
  • Wall mounting flange / foot
  • Watertight urethane gasket
  • Stainless steel clamps and screws
  • Four 3/8” collar studs for optional mounting panel (mounting panels sold separately
  • Grounding studs on inside of box and cover
  • Hinge stiffener

Design Options

  • Painted steel and stainless steel mounting panels
  • Laser cut entries or cut-outs
  • Terminal blocks or other component assembly
  • Print pockets
  • Swing panel / dead front panel
  • Padlock provisions
  • Epoxy paint or powder coating
  • Custom sizes
  • 12 gauge material thickness
  • Drip shields and sun shields
  • Window kits
  • Various quarter turn inserts


  • 14 and 16 gauge / Type 304 stainless steel
  • Stainless steel hardware
  • #3 or #4 brushed finish


    Catalog Spec Sheet



    .pdf files  .dwg files
    AVSS-121206 AVSS-121206
    AVSS-161206 AVSS-161206
    AVSS-161606 AVSS-161606
    AVSS-201606 AVSS-201606
    AVSS-202006 AVSS-202006
    AVSS-241606 AVSS-246106
    AVSS-242006 AVSS-242006
    AVSS-242406 AVSS-242406
    AVSS-161208 AVSS-161208
    AVSS-161608 AVSS-161608
    AVSS-162008 AVSS-162008
    AVSS-201608 AVSS-201608
    AVSS-202008 AVSS-202008
    AVSS-202408 AVSS-202408
    AVSS-241608 AVSS-241608
    AVSS-242008 AVSS-242008
    AVSS-242408 AVSS-242408
    AVSS-243008 AVSS-243008
    AVSS-302008 AVSS-302008
    AVSS-302408 AVSS-302408
    AVSS-303008 AVSS-303008
    AVSS-362408 AVSS-362408
    AVSS-363008 AVSS-363008
    AVSS-363608 AVSS-363608
    AVSS-202012 AVSS-202012
    AVSS-242012 AVSS-242012
    AVSS-242412 AVSS-242412
    AVSS-303012 AVSS-303012
    AVSS-362412 AVSS-362412
    AVSS-363012 AVSS-363012
    AVSS-363612 AVSS-363612
    AVSS-423612 AVSS-423612
    AVSS-483612 AVSS-483612
    AVSS-603612 AVSS-603612
    AVSS-242416 AVSS-242416
    AVSS-363016 AVSS-363016
    AVSS-483616 AVSS-483616
    AVSS-242420 AVSS-242420
    AVSS-302420 AVSS-302420
    AVSS-363020 AVSS-363020
