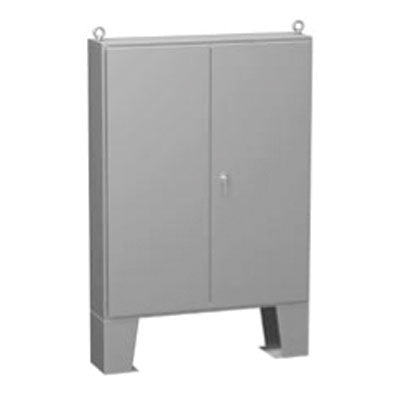

1422 FM Series Painted Steel Double Door Enclosures with 3 Point Latch and Floor Mounting Feet Includes Inner Mounting Panel

Hammond Manufacturing SKU: 1422A8F

$1,772.80

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.  Provides a degree of protection from falling dirt, dust, oil and water.

    Construction

    • Enclosures are formed 14, 12, or 10 gauge steel as noted.
    • Smooth, continuously welded seams without knockouts, cutouts or holes.
    • Body stiffeners are provided in enclosures for extra rigidity.
    • Heavy duty lifting eyebolts are provided with reinforced support angles.
    • 12" floor stands are welded to the enclosure.
    • Gasketed overlapping doors eliminate the need for a center post.
    • Continuously hinged doors may be removed by pulling the hinge pin.
    • Doors are secured with a three point latch and operated with a key locking automotive type handle.
    • Latch rods are equipped with rollers for easier door closing.
    • Oil resistant gaskets are permanently secured.
    • A removable 10 gauge inner panel is included in enclosures 60" and larger. Smaller sizes include a 12 gauge inner panel.
    • Provision for light kit mounting.
    • Panel supports are provided in enclosures 60" and larger for easy panel installation.
    • Collar studs are provided for mounting inner panels.
    • A grounding stud is provided in the enclosure for each door and a bonding stud is pro­vided on the door.
    • A literature pocket is provided for the inside of the door.

    Finish

    • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
    • Removable inner panel is finished in white powder coating.
