Altelix Insulated Fiberglass Weatherproof NEMA 4X Enclosure with 200W Heater & 120 VAC Outlets

Altelix Insulated Fiberglass Weatherproof NEMA 4X Enclosure with 200W Heater & 120 VAC Outlets

Altelix SKU: NF141206HA1-Z

$377.62

Lead Time: ESTIMATED Lead Time of 1-3 Business Days' Time of Order Entry

Availability: In Stock as of 1/28/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

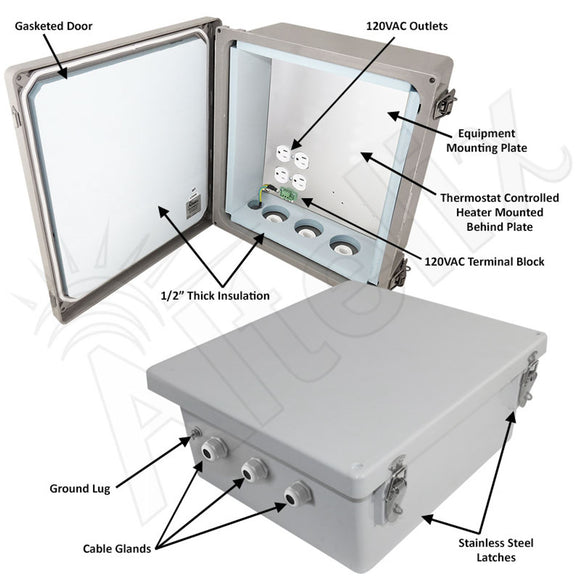

Features
  • Insulated FRP Fiberglass Enclosure
  • Thermostat Controlled 200W Heating System
  • (4) Pre-Wired 120VAC Outlets
  • Removable 120VAC Terminal Block
  • Aluminum Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure and Insulation
  • Pole Mounting Kit Available
 Applications
  • Rapid Deployment Systems
  • Harsh Cold Weather Environments
  • Refrigerated Warehouses
  • Food Processing Facilities
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Weather Stations



Insulated Heated NEMA 4X Protection with Power Outlets

The Altelix NF141206HA1-Z Insulated Heated NEMA Enclosure is deal for extreme cold environments.

Thermostat Controlled 200W Heating System
This enclosure features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for your equipment. An insulated extreme cold weather model is also available with a 400W heating system.

Thermal Insulation
This heated enclosure features 0.50 inch (12.7mm) thick RF Transparent insulation attached to all interior sides of the enclosure.

120VAC Power Outlets
This enclosure features four pre-wired 120VAC power outlets. A quick-connect terminal strip provides easy wiring by a qualified installer.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).
