Altelix 14x12x8 Fiberglass Weatherproof Vented WiFi NEMA Enclosure with 120 VAC Outlets and Non-Metallic Equipment Mounting Plate

Altelix 14x12x8 Fiberglass Weatherproof Vented WiFi NEMA Enclosure with 120 VAC Outlets and Non-Metallic Equipment Mounting Plate

Altelix SKU: NF141208VMA1

$285.51

Lead Time: TYPICALLY Ships Same Day on Orders Placed before 11:00AM EST

Availability: In Stock as of 1/29/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

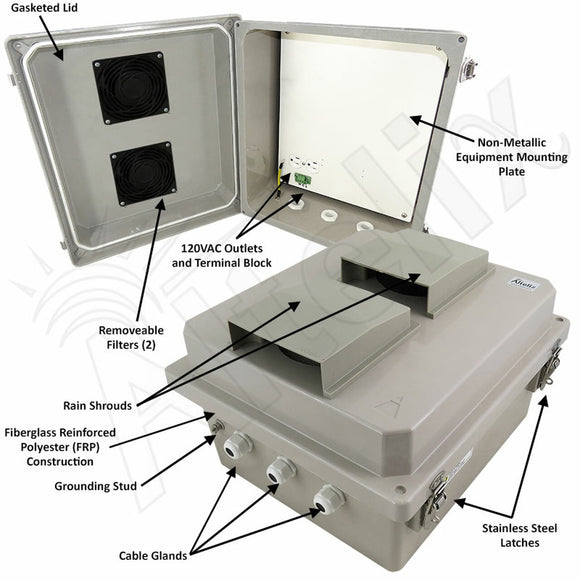

Features
  • Easy to Drill RF Transparent Blank 5mm Thick Non-Metallic Polyester Equipment Mounting Plate
  • Two (2) 4" Vents with Rain Shields and Screens
  • (2) Pre-Wired 120VAC Outlets
  • Removable 120VAC Terminal Block
  • Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
 Applications
  • Rapid Deployment Communications
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor Use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Battery and Charger Box

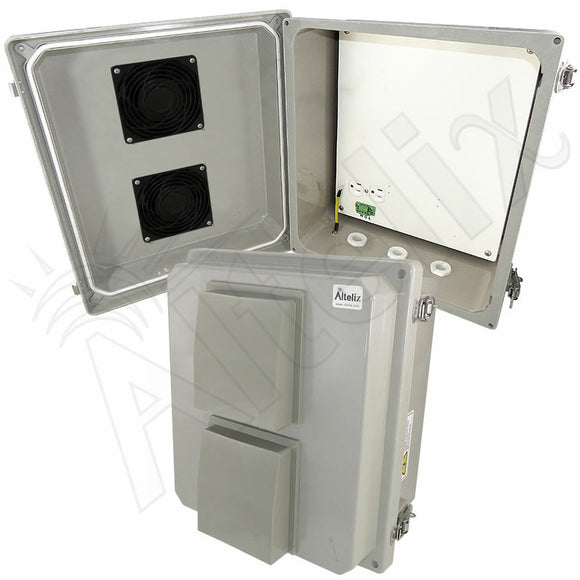

RF Transparent Vented WiFi NEMA Enclosure with 120VAC Power Outlets

The Altelix NF141208VMA1 features two 4 inch air vents covered by rain shields with cleanable screens and a non-metallic RF transparent 0.20" (5mm) thick polyester equipment mounting plate. This enclosure provides two pre-wired 120VAC power outlets and a terminal strip, facilitating easy hard-wiring by a qualified installer. It is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

Wireless Compatibility
This RF transparent enclosure and non-metallic equipment mounting plate are ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear. The generous size of this enclosure accommodates a wide range of equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. The enclosure features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).
