Altelix 19" Wide 6U Rack NEMA 4X Steel Weatherproof Enclosure with 120 VAC Outlets and Power Cord

Altelix SKU: NS242412A1C-R6U

$607.88

Lead Time: ESTIMATED Lead Time of 1-2 Business Days' Time of Order Entry

Availability: Call For Availability As Of 5/23/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • (4) 120VAC Outlets
  • Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
  • Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
  • Dual quarter-turn door latches with key
  • Bonus Aluminum Bottle Opener Key Now Included!
  • Epoxy polyester textured light gray powder coat finish
  • NEMA Type 4, 4X / IP66 Rated
Applications
  • 19" Rack Mountable Equipment
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mountable Audio/Video Equipment
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage



The Altelix 19" Rack 6U NEMA 4X Steel Weatherproof Enclosure with 120VAC Power and Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

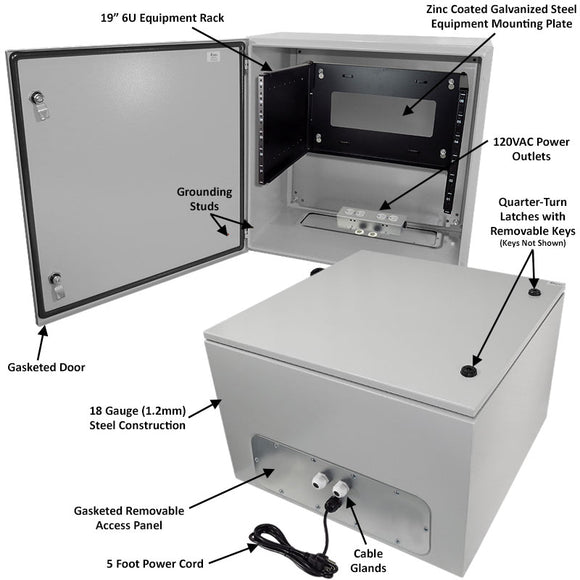

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.

Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

Removable Power Module
Features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

Internal 6U 19" Equipment Rack
Features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique sire requirements.

Installation Note: This 6U rack has an adjustable depth from 9.5" (241.3mm) to 15.5" (393.7mm). Before ordering, please check the dimensions of the equipment to be installed to ensure proper fit.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
