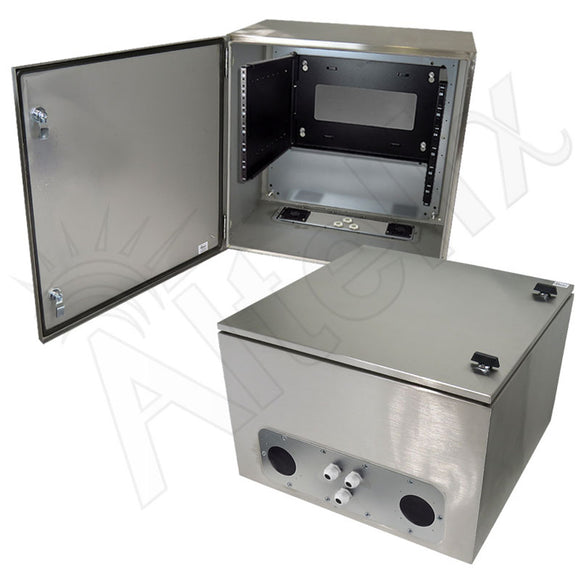

Altelix 24x24x16 Vented 19" Wide 6U Rack Stainless Steel Weatherproof NEMA Enclosure

Altelix SKU: NX242416VP-R6U

$1,174.99

Lead Time: Estimated To Ship In 1-2 Business Days From Time of Order Entry

Availability: In Stock As Of 7/11/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • (2) 3" vents to help expel heat
  • Heavy Duty Continuous Seam Welded 18 Gauge 304L Stainless Steel Construction
  • Brushed Natural Finish
  • Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
  • Dual Quarter-Turn Door Latches with Key
  • Bonus Aluminum Bottle Opener Key Now Included!
  • NEMA Type 3R, 3RX / IP24 Rated
Applications
  • 19" Rack Mountable Equipment
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mountable Audio/Video Equipment
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Agriculture Processing Facilities
  • Mining Operations and Refineries
  • Food Processing Facilities
  • Commerical Kitchens

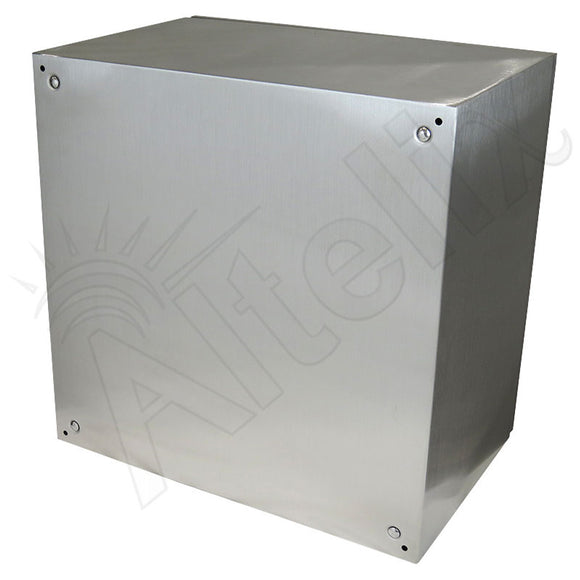

The Altelix NX242416VP-R6U 19" Rack 6U Vented Stainless Steel Weatherproof Enclosure with Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

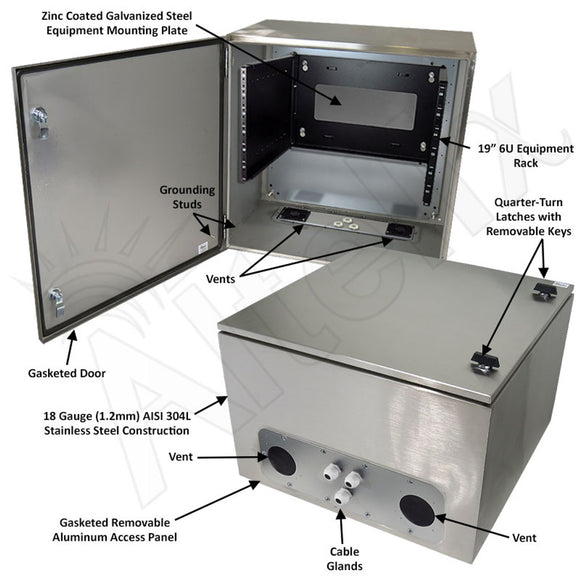

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) AISI 304L stainless steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. Both the enclosure and door feature a brushed natural finish.

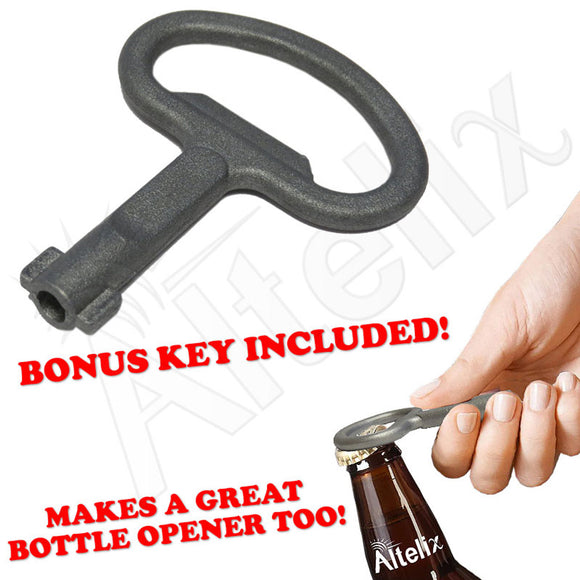

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

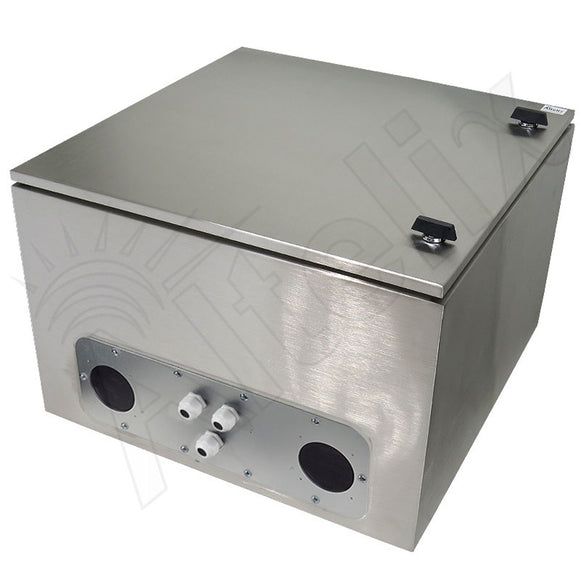

Removable Access Panel with Ventilation
The NX242416VP-R6U features a removable access panel that attaches to the bottom of the enclosure. Constructed of rugged aluminum it features two 3" vents to help expel heat from within the enclosure. Weatherproof cable glands are provide on the panel for cable entry into the enclosure.

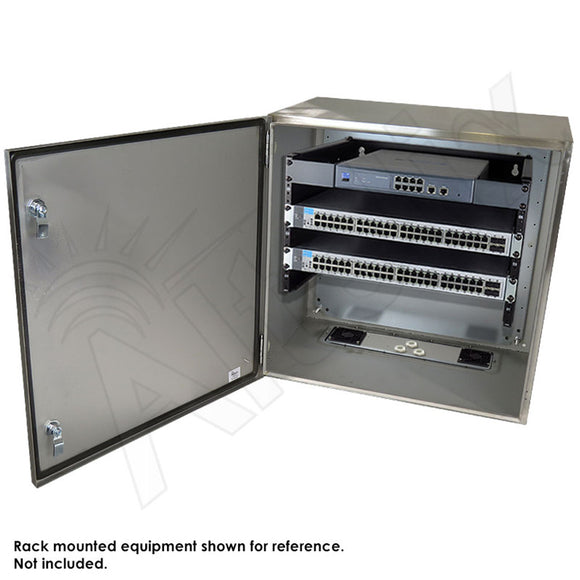

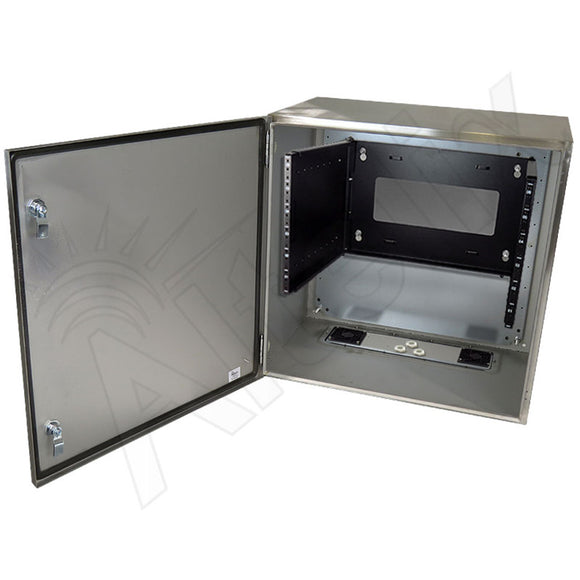

Internal 6U 19" Equipment Rack
The NX242416VP-R6U features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements.

Installation Note: This 6U rack has an adjustable depth from 9.5" (241.3mm) to 15.5" (393.7mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Cable Glands

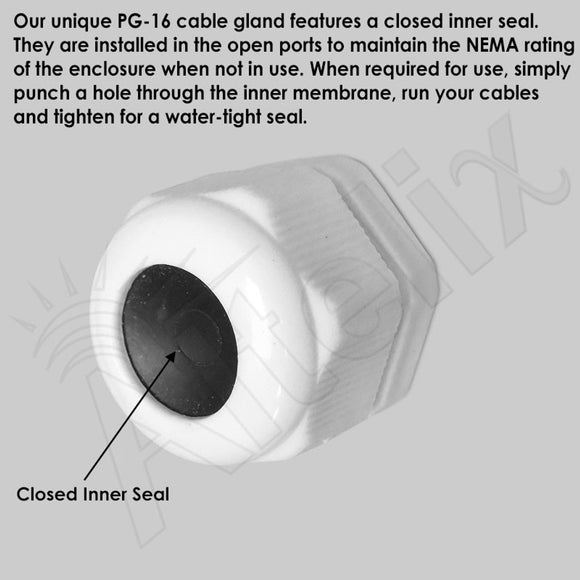

The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

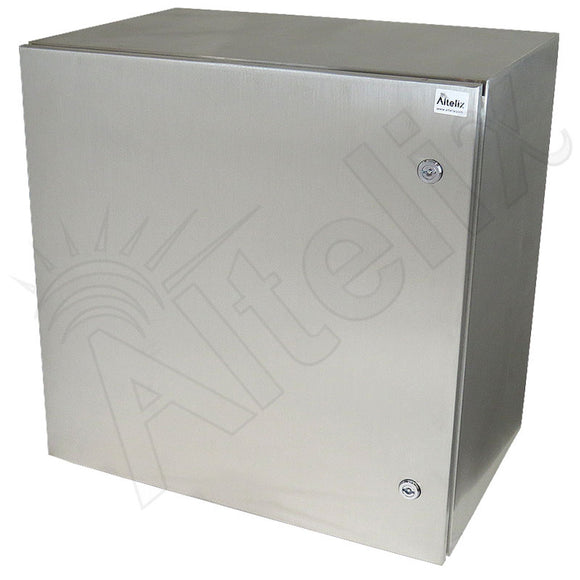

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Customization
This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.

We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.



Material Continuous Seam Welded 18 Gauge (1.2mm) AISI 304L Stainless Steel
Color Natural

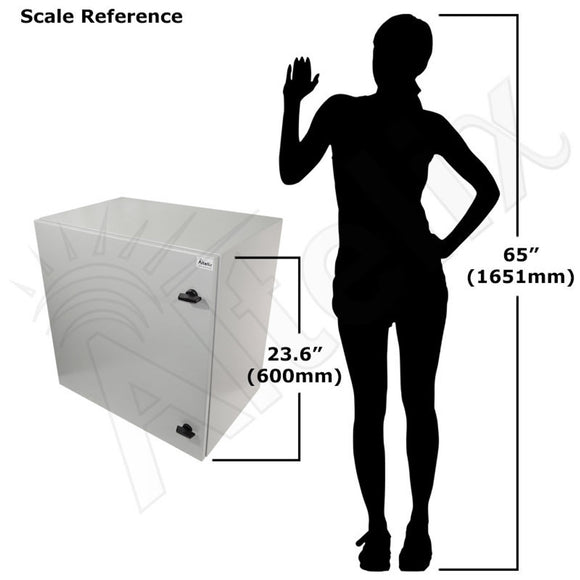

Exterior Dimensions
(Height x Width x Depth)
23.6 x 23.6 x 15.7 Inches
(600 x 600 x 400 mm)
Interior Dimensions*
(Height x Width x Depth)
18.0 x 20.0 x 14.1 Inches
(457 x 508 x 358 mm)
Rack Frame 19" Width 6U
Rack Frame Weight Capacity 75 lbs (34kg)
Equipment Plate Material 18 Gauge (1.2mm) Zinc Coated Galvanized Steel
Equipment Plate Dimensions 22.2 x 21.6 In. (565 x 550 mm)
Weight 58.2 lbs. (26.4 kg)
Ratings NEMA Type 3R, 3RX / IP24
