Altelix Ceiling Mount Enclosure - 14x12x6 PoE Powered Fiberglass FRP with Cooling Fans

Altelix Ceiling Mount Enclosure - 14x12x6 PoE Powered Fiberglass FRP with Cooling Fans

Altelix

$328.75

Lead Time: Estimated To Ship In 2 Business Days From Time Of Order Entry

Availability: In Stock As Of 10/21/25

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at enclosurehub@adalet.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • Integral Gigabit PoE/PoE+ Repeater/Power Splitter which provides power+data for up to (2) PoE devices
  • Dual PoE powered thermostat controlled DC cooling fans
  • Designed for ceiling mount applications
  • Features a No-Drill Non-Metallic equipment mounting plate - mount your equipment securely without the need for drilling
  • Stainless steel hinge and quick release latches with padlock hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV stable and highly corrosion resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes cable glands and stainless steel mounting feet
  • RF transparent enclosure
  • Optional mounting kits available
 Applications
  • PoE network equipment deployment
  • Indoor / Outdoor WiFi PoE access points and routers
  • Installation in remote ceiling locations without power
  • Security and surveillance systems
  • Industrial and warehouse environments
  • Public spaces such as airports and transit stations
  • Discreet ceiling mounted enclosures to support guest Wi-Fi and mobile POS systems
  • Ceiling mounted IoT hubs and wireless controllers
  • Protection against theft or damage
  • Concealment of equipment


PoE Powered Fan Cooled Ceiling Mount NEMA Enclosure

The Altelix NF141206CVMFE1 Ceiling Mount PoE Enclosure is ideal for protecting Power-Over-Ethernet (PoE) enabled equipment from harsh environments and tampering. Using a single Ethernet cable to provide power and data, this enclosure can be installed in remote locations with no power outlets available.

Designed for Ceiling Mount Applications

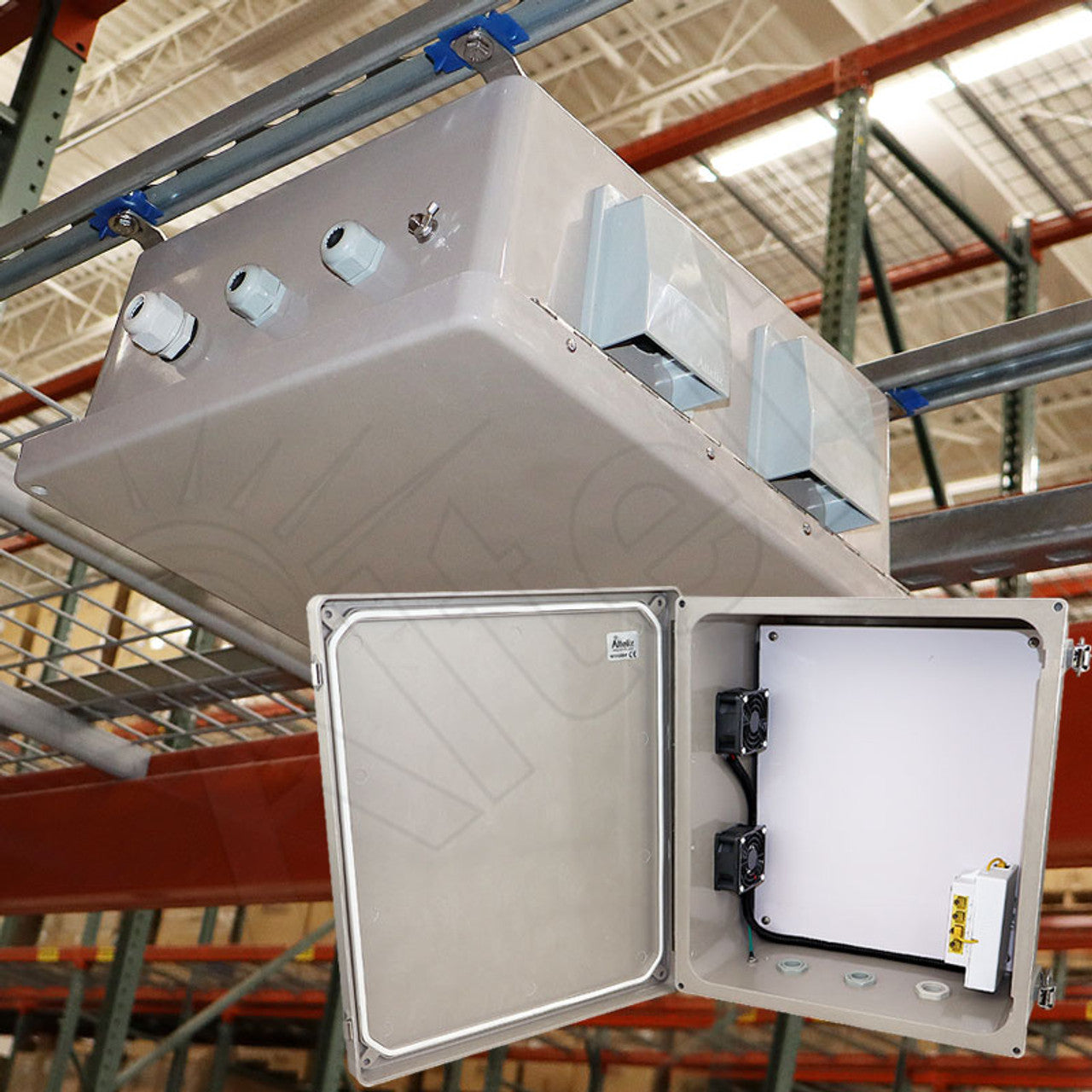

The NF141206CVMFE1 is intended for installation on ceilings in settings such as industrial facilities, commercial buildings, or institutional environments. With the included stainless steel mounting feet, it can be attached to a wide range of ceiling structures. Optional pole mount kits are also available to mount the enclosure to overhead pipes or truss systems.

Integral Gigabit PoE/PoE+ Repeater / Power Splitter

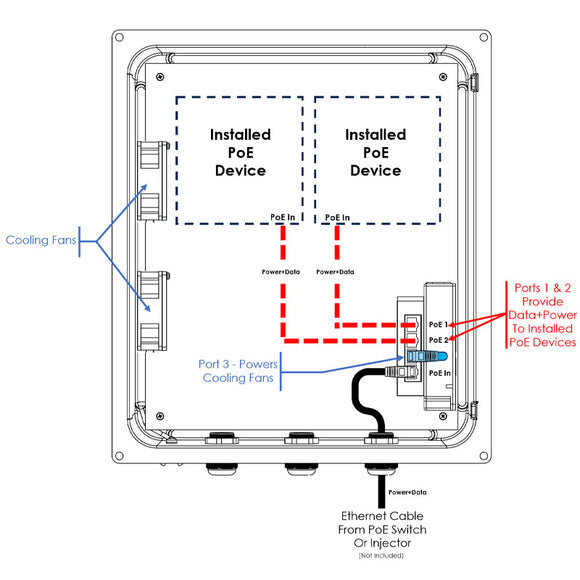

Featured in this enclosure is an integral Gigabit PoE repeater/power splitter mounted to the equipment mounting plate. This Gigabit PoE splitter is used to power the thermostat controlled DC cooling fan as well as providing data+power to one or two PoE enabled devices installed inside the enclosure. The PoE splitter is compatible with IEEE 802.3af/at standards and features 10/100/1000Mbps data speeds.

Dual PoE Powered Cooling Fans
To help manage internal temperatures due to increased heat typical in ceiling environments, the NF141206CVMFE1 features dual thermostat controlled PoE powered DC cooling fans. The low noise, high airflow fans help maintain lower internal temperatures. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Downward facing vent shrouds on the side of the enclosure help prevent water and falling debris from entering.

No-Drill Non-Metallic Equipment Plate
This enclosure includes a no-drill non-metallic 1/4" thick PVC equipment mounting plate. Due to the "No-Drill" design of this plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NF141206CVMFE1 is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will accommodate a wide range PoE wireless equipment.

Extreme Protection Built to Last

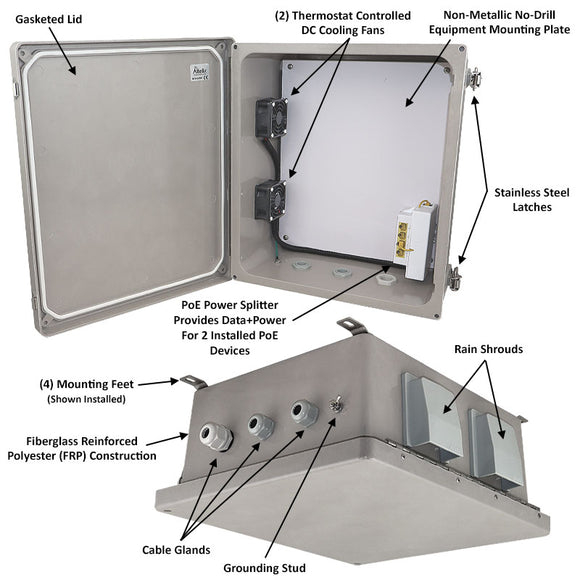

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Cable Glands
This enclosure features three of our unique PG-16 cable glands. The first is a specially designed cable gland which will allow a pre-terminated Ethernet cable to be fed into the enclosure. The second two glands feature a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
