Power Module with Single 120VAC Duplex Outlet for NS242012, NS242412, NS242416, NX242416, NS242424, NS282416 and NS322416 Enclosure

Power Module with Single 120VAC Duplex Outlet for NS242012, NS242412, NS242416, NX242416, NS242424, NS282416 and NS322416 Enclosure

Altelix SKU: NHM20A-A1R2C

$120.53

Lead Time: Estimated To Ship Same Day On Orders Placed Before 11 AM EST

Availability: In Stock As Of 8/9/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at enclosurehub@adalet.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

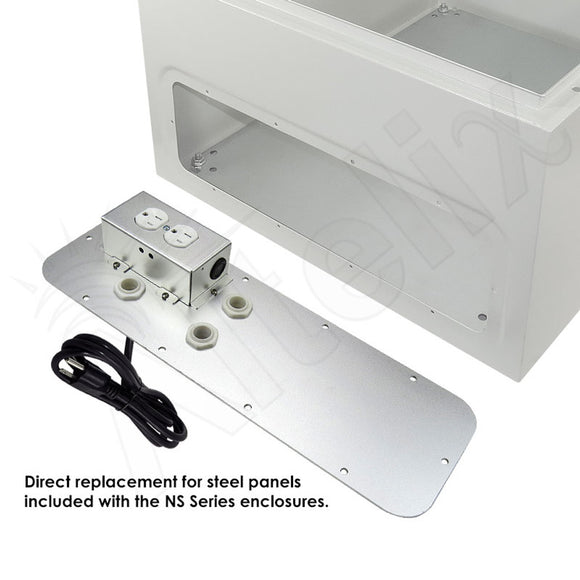

The Altelix NHM20A-A1R2C Power Module with 120VAC Outlets is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures.

Power Module

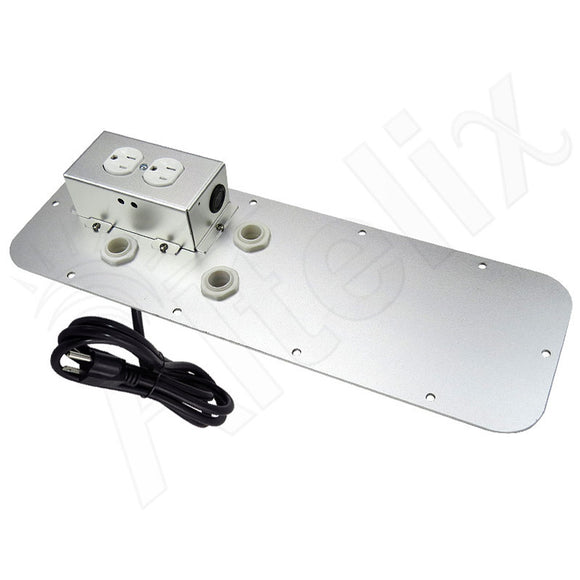

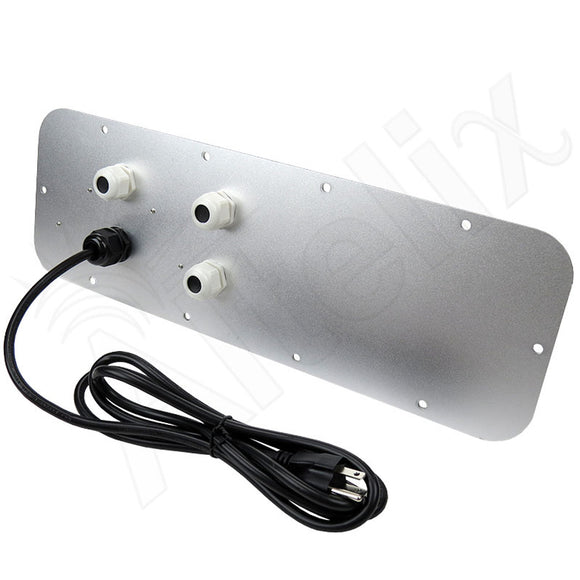

The NHM20A-A1R2C is constructed from 0.10" (2.5mm) thick aluminum and features a single pre-wired duplex 120VAC power outlet (2 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

The NHM20A-A1R2C is for use with the following enclosures:

  • NS242012 Series
  • NS242412 Series
  • NS242416 Series
  • NX242416 Series
  • NS242424 Series
  • NS282416 Series
  • NS322416 Series
Panel Material Aluminum
Panel Thickness 0.10 in. (2.5 mm)
Voltage 120VAC
Power Cord Length 5 Feet (1.5m)

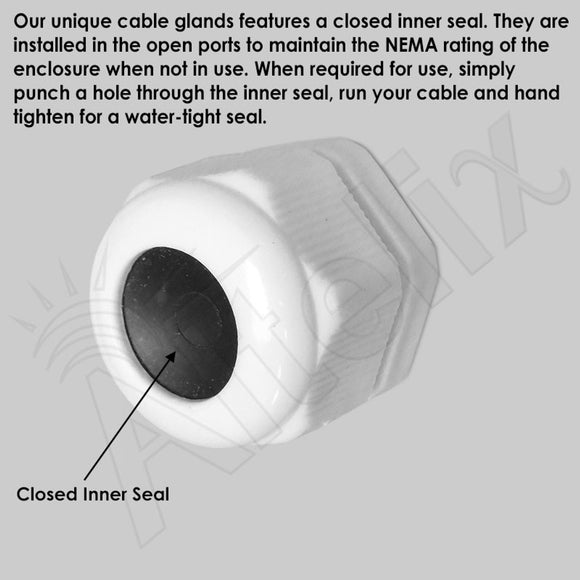

Hole Diameter for Cable Gland 0.875 in. (22.2 mm)
Cable Gland - Cable Diameter Range* 0.1" to 0.3" (2.5 to 7.6mm)
Max. Connector Size That Can Pass Through Cable Gland 0.5" (12.7mm) Wide
*Note:
For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland.
