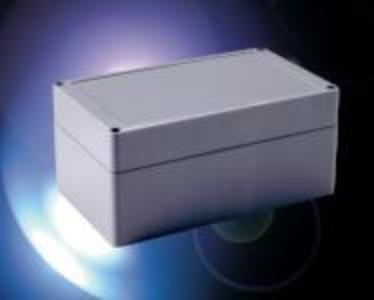

PNR DG Series ABS Plastic Enclosures with Recessed Opaque Cover ($100 Minimum on Orders)

PNR DG Series ABS Plastic Enclosures with Recessed Opaque Cover ($100 Minimum on Orders)

BUD Industries SKU: PNR-2600

$13.38

Lead Time: All BUD products vary, we can find this information quickly for you.

Availability: In stock products will ship within an estimated 3-5 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

These high-impact ABS molded enclosures meet NEMA 1, 2, 4, 4X, 12, and 13 specifications and are ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. Available in a variety of sizes, these molded enclosures are offered in three different versions.



Features



  • ABS plastic body and cover
  • Body/Cover UV stabilized
  • UL94-HB flammability rating
  • Suggested service temperature -40C to 120C.

 Design



  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4X, 12, and 13 specifications
  • UL508-4X listed
  • Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts.
  • Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.



Drawings:

    .pdf files .dxf files
    PNR-2600-DG_PDF PNR-2600-DG_DXF
    PNR-2601-DG_PDF PNR-2601-DG_DXF
    PNR-2602-DG_PDF PNR-2602-DG_DXF
    PNR-2603-DG_PDF PNR-2603-DG_DXF
    PNR-2604-DG_PDF PNR-2604-DG_DXF
    PNR-2605-DG_PDF PNR-2605-DG_DXF
    PNR-2606-DG_PDF PNR-2606-DG_DXF
    PNR-2607-DG_PDF PNR-2607-DG_DXF
    PNR-2608-DG_PDF PNR-2608-DG_DXF
