Industried Large Cabinet Racks Rack Professional Series

Industried Large Cabinet Racks Rack Professional Series

BUD Industries SKU: BRP-12202

$1,037.00

Lead Time: All BUD products vary, we can find this information quickly for you.

Availability: In stock products will ship within an estimated 3-5 business days.

Please chat with us directly or email at enclosurehub@adalet.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

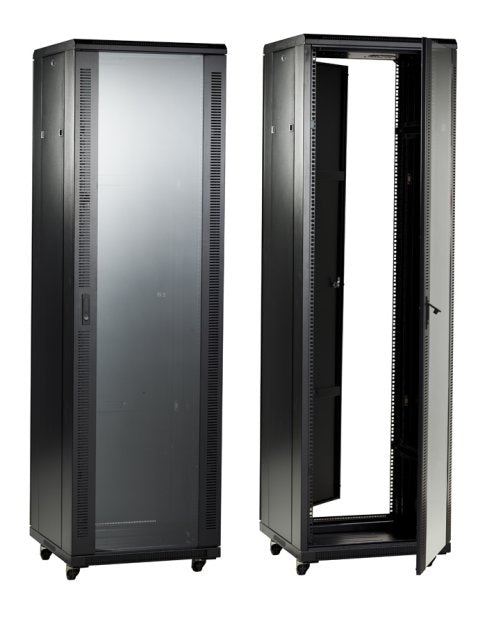

The BudRack Professional Series Cabinet Rack provides all of the features that one expects in a high end Cabinet Rack and more.



Design Features



  • Sturdy and durable steel construction Mounting rails 14 GA, other parts 18 GA.
  • Finished complete with ventilated tempered glass front door, locking rear door, removable sides
  • EIA 310 Compliant for 19" rack-mount equipment
  • Two pairs of fully adjustable panel mounting rails included. The panel mounting rails include unique notch at each "U" point to allow for rapid equipment location identification
  • Top mount fan box installed. Two fans for 23" depth, four fans for 31" depth
  • Includes ventilated shelves (one shelf in the 24U high cabinet, two shelves in the 40U and 45U cabinets)
  • Includes four casters and four levelers (unassembled)
  • Large cutout in base. Cutout comes covered by 2.5" deep metal cover plates that allow for adjustable opening providing as much or as little open space for cable access
  • Two (2) additional 13" x 2.5" cutouts in front and rear of base also come with readily removable covers
  • Vented at top and bottom of sides, which also can be locked
  • Comes fully assembled
  • Finish: Black textured powder coating easy to clean.
  • Other sizes and modifications are available upon request.



BudRack Professional Series



Catalog No.

Drawings

Panel Space

(inches)



"U"

Overall Dimensions

(inches)

Clear Inside Depth

(inches)

Weight

(Lbs.)

 Additional Ventilated Fixed Shelf Catalog No.

Weight

(Lbs.)

Width

Height

Width

Depth

Height
BRP-12202

19.00 42.00 24 23.62 23.62 49.40 20.88 222 SH-12706 5
BRP-12206

19.00 70.00 40 23.62 23.62 77.40 20.88 305
BRP-12208

19.00 78.75 45 23.62 23.62 86.15 20.88 327
BRP-12212

19.00 42.00 24 23.62 31.50 49.40 28.75 254 SH-12708 6
BRP-12216

19.00 70.00 40 23.62 31.50 77.40 28.75 345
BRP-12218

19.00 78.75 45 23.62 31.50 86.15 28.75 370
