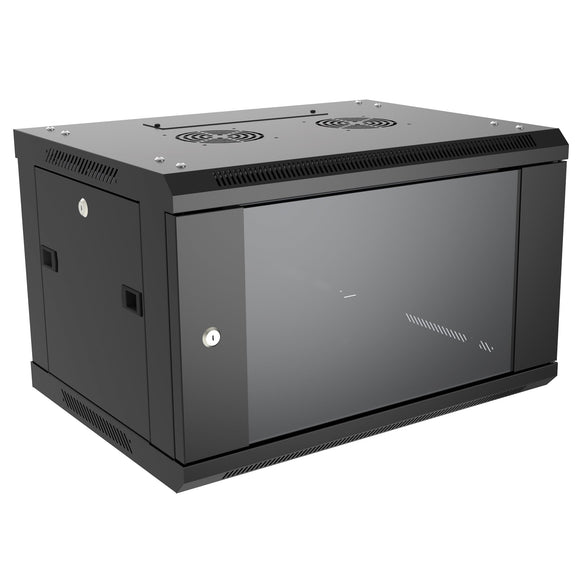

Features
- Constructed in light duty 16-gauge steel.
- Includes two (2) pairs of EIA-310-D compliant 19 inch square hole mounting rails.
- Starter pack of (25) M6 screws, cage nuts and washers included.
- For 10-32 hardware see the CAGKIT Series.
- Rails are adjustable.
- Includes one (1) locking tempered glass lightly smoked reversible front door.
- Includes one (1) pair of locking removable side panels.
- Front and side of frame includes venting for air flow.
- Rear cable access.
- Provision for optional fans on top panel.
- Ships un-assembled some assembly required.
- Finished in black powder paint.
- Tested to 130 lbs (59 kg) of equipment load capacity.
- RoHS Compliant.
Part of the Rack Basics® line of economy rack solutions.
Accessories
Part Details
Click part number for details (e.g., CAD files, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Overall Dimensions | Rack | Mounting Dimensions | ||||
|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Units | Height | Width | Depth | |
| RB-FW6 | 14.65 | 23.62 | 23.62 | 6U | 10.50 | 19.00 | 21.24 |
| RB-FW9 | 19.90 | 23.62 | 23.62 | 9U | 15.75 | 19.00 | 21.24 |
| RB-FW12 | 25.15 | 23.62 | 23.62 | 12U | 21.00 | 19.00 | 21.24 |
| RB-FW15 | 30.40 | 23.62 | 23.62 | 15U | 26.25 | 19.00 | 21.24 |
