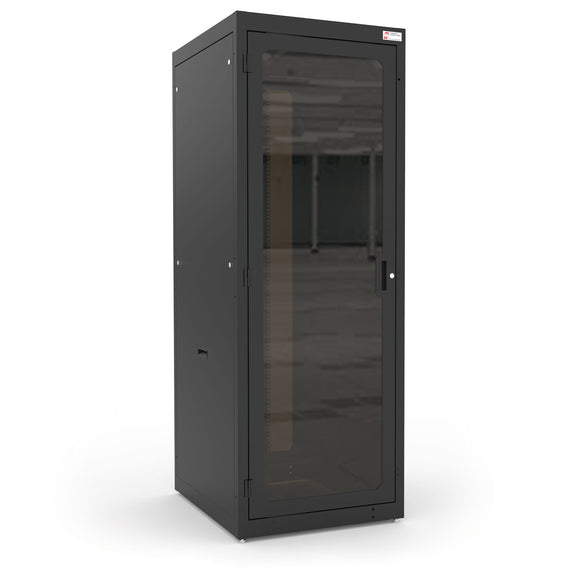

Server Rack Cabinet C4RR Series UL 2416 Rated 3000 lbs|1361 kg Weight Capacity

Server Rack Cabinet C4RR Series UL 2416 Rated 3000 lbs|1361 kg Weight Capacity

Hammond Manufacturing SKU: C4RR247336DBK1

$3,010.83

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

When you need cabinets quickly, our pre-assembled C4RR cabinets are a great option. Based off of our most popular requested configurations, each cabinet is factory configured and is packaged ready-to-ship. Click here to view our C4 Series' components.



Features

  • Constructed in:
    • 14-gauge steel (body)
    • 16-gauge steel (doors and side panels)
    • 12-gauge steel (square hole mounting rails)
  • EIA compliant square hole punched rails with rack unit labels.
  • Zinc-plated mounting rails provide superior surface areas for equipment grounding.
  • The 30” wide C4 rails have cable-tie support and pass-through holes.
  • The 24” wide C4 includes:
    • Generous cabling space
    • Four (4) 3.5” wide cable entry holes on the top
  • The 30” wide C4 includes:
    • Extra generous cabling space
    • Four (4) 3.5” wide cable entry holes on the top
    • Support for up to four optional 4" deep vertical cable managers
  • Vertical cable trays are available for both 24” and 30“ width cabinets.
  • Vertical cable managers are available for the 30" wide cabinets and are 3.5" wide x 4" deep with magnetic latching doors.

Specifications

  • UL Listed 2416 rated for up to 3,000 lbs (1,361 kg) static load rating.
  • Infinite-depth setting using C-channel struts.
  • Zinc-plated mounting rails provide superior surface areas for equipment grounding.
  • Four (4) leveling feet are included with support for optional casters.
  • Grounding studs provided on frame as well as side panels and doors.
  • Finished in textured black powder paint. Additional colours available upon request.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.

Included Components

  • All configurations include:
    • One (1) welded C4 cabinet frame with top cable entry holes
    • Two (2) removable side panels (with 1/4 turn latches)
    • Four (4) leveling feet
    • Eight (8) keys
    • Starter pack of CAGKIT1032-25 screws and cage nuts.
  • C4RR "D" Cabinet Specific Components include:
    • Two (2) pairs infinitely adjustable square hole rails
    • One (1) plexi front door
    • One (1) perforated rear door (65% open area vented)
    • One (1) four (4) fan cutout top panel
    • One (1) vertical cable tray with toolless PDU mounting

  • C4RR "S" Cabinet Specific Components include:
    • Two (2) pairs infinitely adjustable square hole rails
    • One (1) perforated front door (65% open area vented)
    • One (1) split perforated rear door (65% open area vented)
    • One (1) four (4) fan cutout top panel
    • Two (2) vertical cable trays with toolless PDU mounting

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

C4RR "D" Cabinet

Units shown: inch. Switch units to: mm

Part No. Overall Dimensions Rack Usable Mounting Dimensions
Height Width Depth Units Height Width Depth
C4RR247336DBK1 80.08 24.00 36.00 42U 73.50 19.00 34.00
C4RR247342DBK1 80.08 24.00 42.00 42U 73.50 19.00 40.00
C4RR247731DBK1 83.58 24.00 31.50 44U 77.00 19.00 29.50
C4RR247736DBK1 83.58 24.00 36.00 44U 77.00 19.00 34.00
C4RR307736DBK1 83.58 30.00 36.00 44U 77.00 19.00 34.00
C4RR307742DBK1 83.58 30.00 42.00 44U 77.00 19.00 40.00
Overall height includes leveling feet.

C4RR "S" Cabinet

Units shown: inch. Switch units to: mm

Part No. Overall Dimensions Rack Usable Mounting Dimensions Have you seen
Height Width Depth Units Height Width Depth our H1 Series?
C4RR247331SBK1 80.08 24.00 31.50 42U 73.50 19.00 29.50
C4RR247336SBK1 80.08 24.00 36.00 42U 73.50 19.00 34.00
C4RR247342SBK1 80.08 24.00 42.00 42U 73.50 19.00 40.00 H12442U42BK
C4RR247736SBK1 83.75 24.00 36.00 44U 77.00 19.00 34.00
C4RR247742SBK1 83.75 24.00 42.00 44U 77.00 19.00 40.00 H12445U42BK
C4RR307736SBK1 83.75 30.00 36.00 44U 77.00 19.00 34.00
C4RR307742SBK1 83.75 30.00 42.00 44U 77.00 19.00 40.00 H13045U42BK
Overall height includes leveling feet.

Fans for Existing Fan Top

Units shown: inch. Switch units to: mm

Part No. Fan(s) Fan CFM Noise Corded Plug Fan Guards
Included Width (dB) Included
DNFK1AC120 1 4.72 105 56 1 x 72" NEMA 1-15P 2
DNFK2AC120 2 4.72 210 60 1 x 12" daisy chain with NEMA 1-15P 72" lead 4
