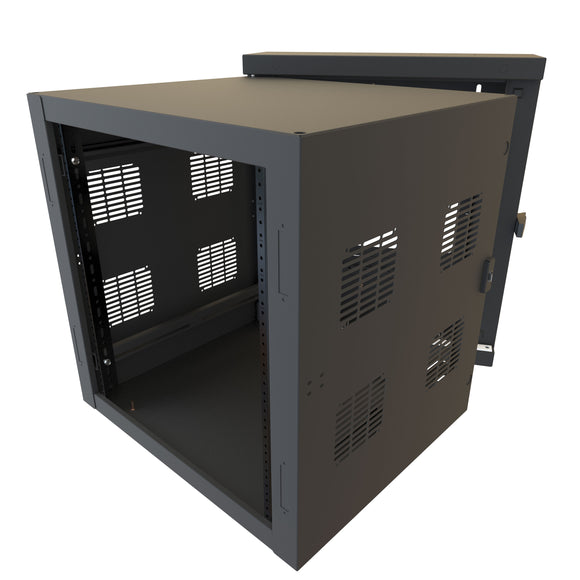

Swing - Out Sectional Wall Mount Rack Cabinet HWC Series Heavy Duty UL Rated 350 lbs (158 kg) Weight Capacity

Swing - Out Sectional Wall Mount Rack Cabinet HWC Series Heavy Duty UL Rated 350 lbs (158 kg) Weight Capacity

Hammond Manufacturing SKU: HWC2412U27BK

$959.17

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.


Features

  • Available in three (3) heights, two (2) widths and two (2) depths.
  • Optional locking doors are constructed in 16-gauge steel. The doors install in minutes and are available in vented, tinted window and solid.
  • The main body is constructed in 16-gauge welded steel and includes four (4) vents for optional fans on the sides of the cabinet.
  • Main body can be installed to swing from left-to-right or right-to-left.
  • Includes one (1) pair of adjustable depth 10-32 tapped EIA compliant mounting rack rails.
    • Thirty (30) inch wide mounting rails include cutouts for optional 1U 19" accessories, such as cable management or power bars.
    • 10-32 tapped rails are easy to remove on-site and replace with square hole rails (sold separately) if needed.
  • Includes starter pack of SCREW1032-50 screws.

Rear Section Features

  • Heavy duty rear bracket is constructed in 14-gauge welded steel and features a spring-hinge pin for easy installation and removal.
  • 2.50” and 2.00” conduit knockouts are located on the side.
  • 3.00", 2.00”, 1.38” and 1.12” conduit knockouts are located on the top and bottom.
  • Fan knockouts/cable access located on the top and bottom.
  • Numerous cable management mounting points included.
  • Heavy duty keyhole for wall mounting.
  • Large openings in rear for cable access.
  • Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit sold separately.

Specifications

  • UL Listed 2416 load rated for up to 350 lbs (158 kg). Static Load tested to 1,400 lbs (635 kg).
  • Rugged sand-textured black powder paint which reduces fingerprints and marks.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements, when door installed.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.

Upgrade the cabinet to be dust-resistant with the HWCF Cabinet Sealing and Filter Kit.

If you require UL and CSA Rated Type 12 or Type 4, consider the EN4DH Series.

Gallery

  • Top-Rear of HWC Showing Fan, Conduit and BNC Laser Knockouts
  • Locking Pull Latch on HWC
  • 19" Rail mount cutouts included on 30" wide models
  • HWC Cabinet shown with suggested installation of the HWCF
  • HWC2427U35BK
  • HWC3018U27BK
  • HWC2412U35BK
  • HWC2418U27BK
  • HWC2418U35BK
  • HWC2427U27BK
  • HWC3012U27BK
  • HWC3012U35BK
  • HWC3018U35BK
  • HWC3027U27BK
  • HWC3027U35BK
  • HWC3012UTR
  • HWCSD2412UBK
  • HWCVD2412UBK
  • HWCWD2412UBK
  • HWC3012USR
  • HWC3012UTR
  • HWC3018USR
  • HWC3027USR
  • HWC3027UTR
  • HWC3018UTR

Accessories

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

24" Wide (Door not included)

Units shown: inch. Switch units to: mm

Part No. Overall Dimensions Rack Mounting (Usable) Dimensions
No Door Height Width Depth Units Height Width Depth
HWC2412U27BK 27.81 24.68 26.78 12U 21.00 19.00 24.50
HWC2412U35BK 27.81 24.68 34.78 12U 21.00 19.00 32.50
HWC2418U27BK 38.31 24.68 26.78 18U 31.50 19.00 24.50
HWC2418U35BK 38.31 24.68 34.78 18U 31.50 19.00 32.50
HWC2427U27BK 54.06 24.68 26.78 27U 47.25 19.00 24.50
HWC2427U35BK 54.06 24.68 34.78 27U 47.25 19.00 32.50

30" Wide (Door not included)

Units shown: inch. Switch units to: mm

Part No. Overall Dimensions Rack Mounting (Usable) Dimensions
No Door Height Width Depth Units Height Width Depth
HWC3012U27BK 27.81 30.68 26.78 12U + 2U 21.00 19.00 24.50
HWC3012U35BK 27.81 30.68 34.78 12U + 2U 21.00 19.00 32.50
HWC3018U27BK 38.31 30.68 26.78 18U + 2U 31.50 19.00 24.50
HWC3018U35BK 38.31 30.68 34.78 18U + 2U 31.50 19.00 32.50
HWC3027U27BK 54.06 30.68 26.78 27U + 4U 47.25 19.00 24.50
HWC3027U35BK 54.06 30.68 34.78 27U + 4U 47.25 19.00 32.50

Optional Doors

Compatible with Cabinet Solid 64% Vented Tinted Window
Height Width
12U 24 HWCSD2412UBK HWCVD2412UBK HWCWD2412UBK
18U 24 HWCSD2418UBK HWCVD2418UBK HWCWD2418UBK
27U 24 HWCSD2427UBK HWCVD2427UBK HWCWD2427UBK
12U 30 HWCSD3012UBK HWCVD3012UBK HWCWD3012UBK
18U 30 HWCSD3018UBK HWCVD3018UBK HWCWD3018UBK
27U 30 HWCSD3027UBK HWCVD3027UBK HWCWD3027UBK

Optional Additional Mounting Rails

Compatible with Cabinet Tapped 10-32 Square Hole
Height Width
12U 24 URR12U -
18U 24 URR18U -
27U 24 URR27U -
12U 30 HWC3012UTR HWC3012USR
18U 30 HWC3018UTR
