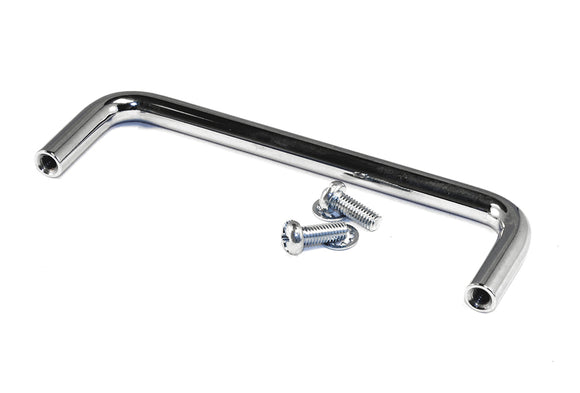

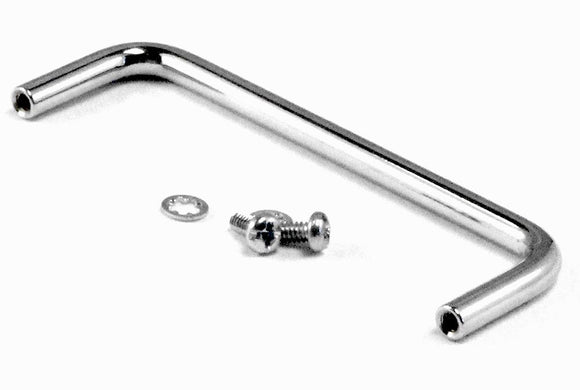

Chassis Handles 1427 Series
Chassis Handles 1427 Series
Chassis Handles 1427 Series

Chassis Handles 1427 Series

$3.88

SKU: 1427B Hammond Manufacturing

Description

Features

  • Material is round steel.
  • Available in Chrome Plated or Black Powder Coated.
  • Sold individually or in pairs (see table).
  • Hardware included.

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch. Switch units to: mm

Chrome Black Black Handle
Part No. Part No. Part No. Mounting Handle Handle Screw Panel
(Sold Individually) (Sold Individually) (Sold in Pairs) Hole Centers Depth Diameter Thread Height
1427B 1427B1BK 1.25 0.62 0.19 4-40 1.75
1427B2 1427B2BK-1 1427B2BK 1.25 1.00 0.19 6-32 1.75
1427D 1.75 0.75 0.19 4-40 5.25
1427E 1427E1BK-1 1427E1BK 2.00 1.00 0.19 6-32 5.25
1427Q 2.25 1.00 0.25 6-32 5.25
1427P 1427P1BK-1 1427P1BK 2.80 1.00 0.25 6-32 5.25
1427G2 1427G2BK 3.00 1.00 0.19 4-40 8.75
1427G3 1427G3BK 3.00 1.50 0.31 10-32 8.75
1427G 3.00 1.75 0.25 8-32 8.75
1427N 1427N1BK 3.50 1.20 0.38 10-32 8.75
1427N2 1427N2BK 3.50 1.50 0.25 8-32 8.75
1427N3 3.50 2.06 0.38 1/4-20 STUD 8.75
1427C1 1427C1BK 4.00 1.30 0.38 10-32 8.75
1427S3 1427S3BK 4.00 1.50 0.31 10-32 8.75
1427S 4.00 1.50 0.25 8-32 8.75
1427S2 1427S2BK 4.00 1.75 0.25 8-32 8.75
1427U3 1427U3BK 4.50 1.50 0.31 10-32 8.75
1427T3 1427T3BK 5.00 1.50 0.31 10-32 12.25
1427T 5.00 1.50 0.25 8-32 12.25
1427T2 5.00 1.75 0.25 8-32 12.25
1427M3 5.25 2.06 0.38 1/4-20 STUD 12.25
1427M 1427M1BK 5.30 1.20 0.38 10-32 12.25
1427W 6.00 1.50 0.25 8-32 12.25
1427W3 1427W3BK 6.00 1.75 0.31 10-32 12.25
1427W2 6.00 1.75 0.25 8-32 12.25
1427L 1427L1BK 7.00 1.30 0.38 10-32 14.00
1427H 8.00 1.63 0.38 10-32 14.00
