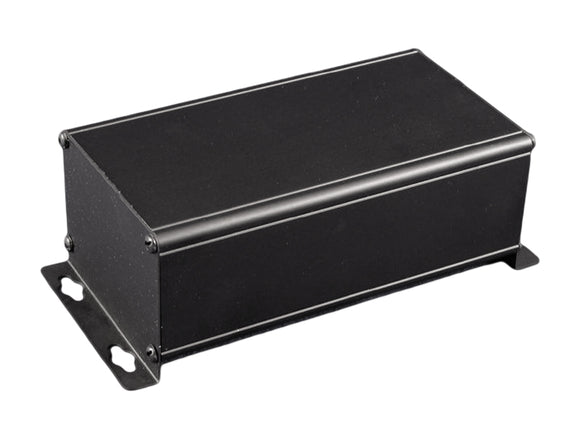

Hammond Wallmount Extruded Aluminum Enclosures 1455ZT Series

Hammond

$18.21
Product Information
SKU: 1455ZT1601 Weight: 1.0 lb

Key Features:

  • Designed to house electronics for equipment interfacing where shelf or wall mounting is required.
  • Consists of an aluminum "U" shaped extrusion body and a slide-in flat aluminum bottom plate.
  • Slide-in plate perfect for easy mounting of components.
  • Steel foot "L" brackets are attached to each end. "L" brackets are punched with 0.31" (7.9 mm) diameter keyholes for easy mounting of enclosure.
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
  • Available in either clear or black anodized finish, the bottom slide-in plate is finished to match.
  • The two end "L" brackets are matched to the enclosure.
  • Includes all assembly hardware.
  • NOTE: Recommended screw torque is 5 lbf/in

Gallery

Anodized
Part Number Color Length Width Height
1455ZT1601 Clear 6.30 3.50 2.20
1455ZT1601BK Black 6.30 3.50 2.20
1455ZT2201 Clear 8.66 3.50 2.20
1455ZT2201BK Black 8.66 3.50 2.20
