Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
Includes Equipment Mounting Plate
Thermostat Controlled 200W Heating System
1/2" Thick Insulation Bonded to Interior of Enclosure
Dual Quarter-Turn Door Latches
Bonus Aluminum Bottle Opener Key Now Included!
(4) Mounting Feet Included
NEMA Type 4, 4X / IP66 Rated
Optional Lockable Latch Sets Available
Outdoor WiFi Installations
SCADA, Remote Terminal Unit
Security and Video Surveillance NVR Systems
Protection of Equipment from Theft or Damage
Concealment of Equipment
Tunnel and Mining Installations
Mills & Refineries
Cement and Chemical Plants
Food Processing Facilities
Warehouses and Loading Docks
Marinas and Marine Terminals
Golf Courses, Resort Properties and Recreational Areas
Building Maintenance Areas
Building Rooftop or Basement
Parking Lots and Garages
Note:THIS IS A SPECIAL ORDER ITEM.

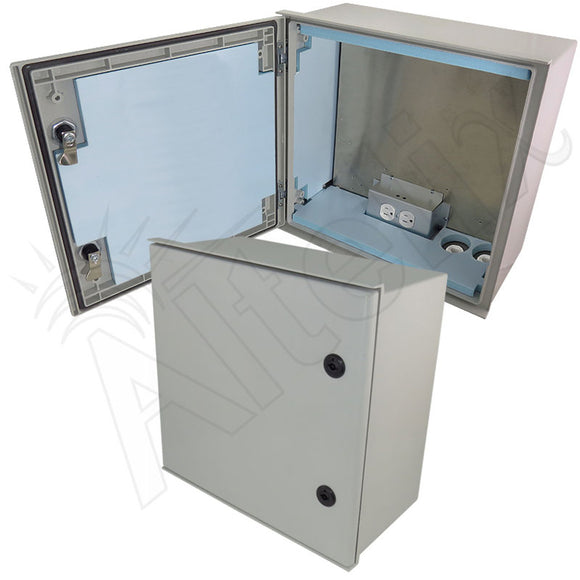

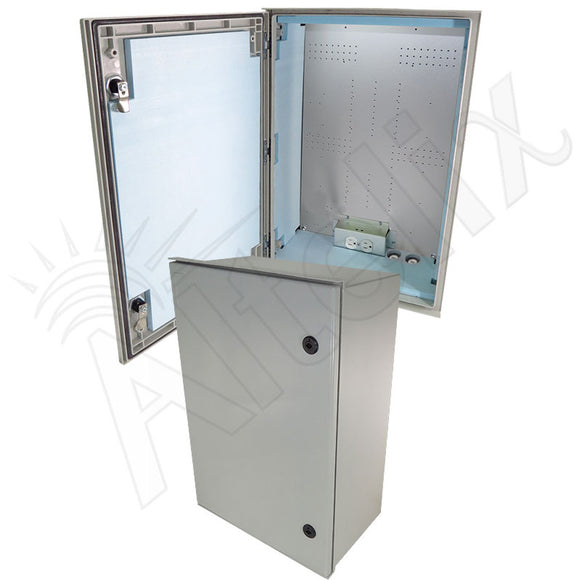

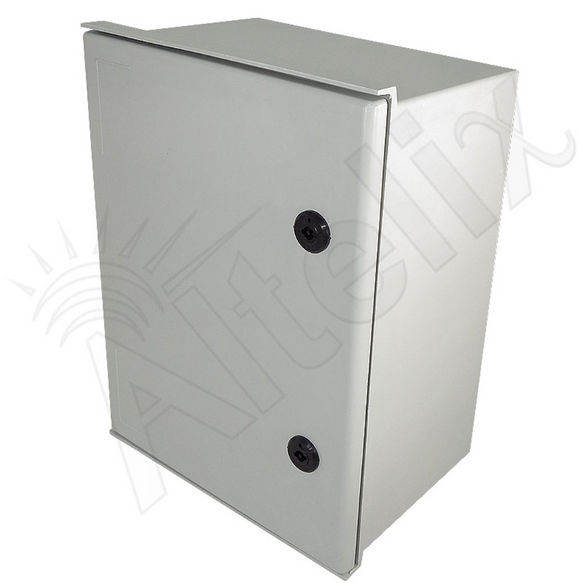

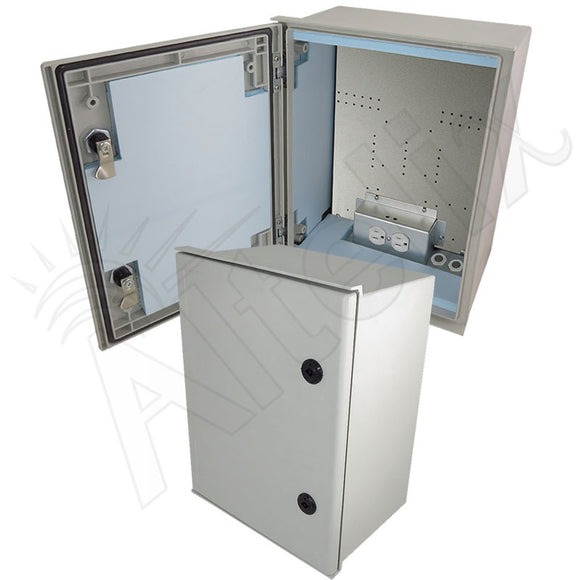

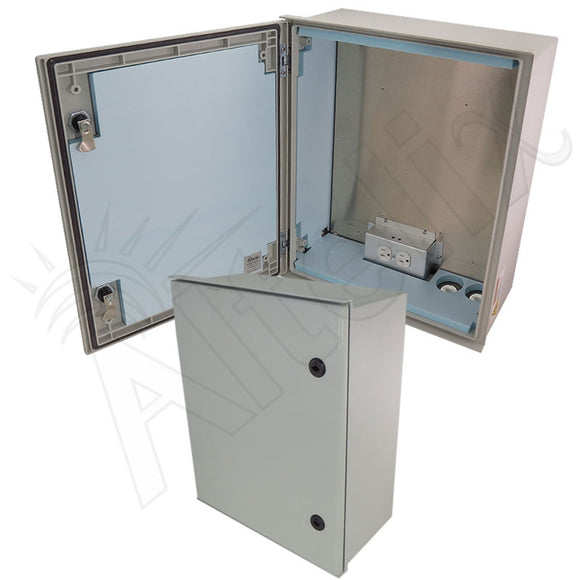

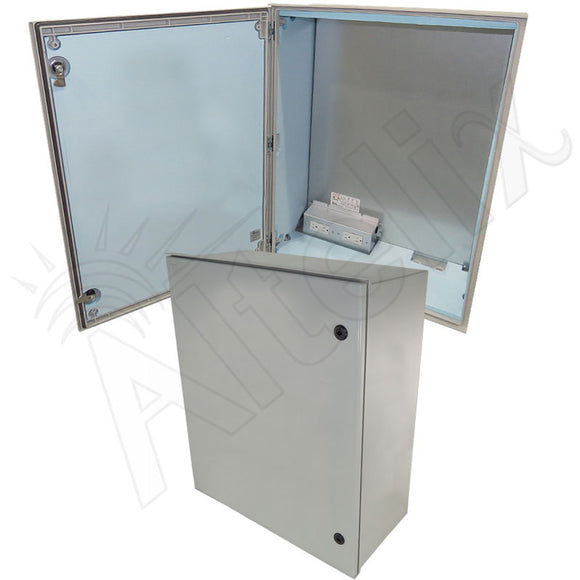

TheAltelix NEMA 4X Insulated Heated Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plateis ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

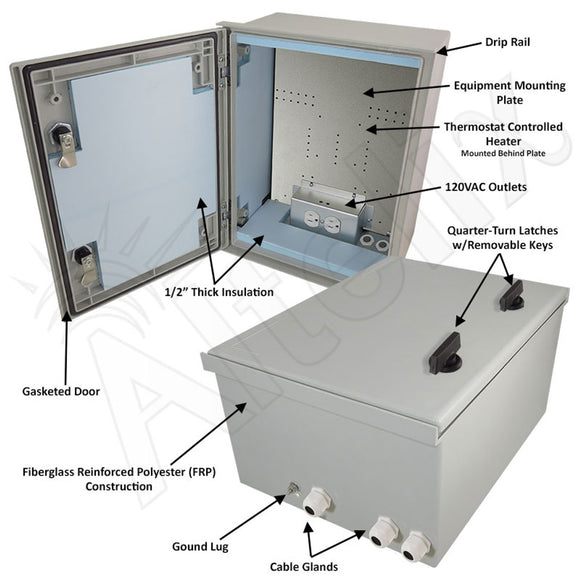

Construction and Features This rugged IP66 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.
Bonus Aluminum Bottle Opener Key This enclosure now includes ourHN-0008Aluminum Bottle Opener Key. A$9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Power This configuration consists of the vented fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC power outlets. The outlet box is easily removable to facilitate wiring to an external power source.
Heater Ideal for cold environments, this model also features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets.
Insulated Enclosure Designed for extreme cold and hot environments, the NFC161208HA1-Z features 0.500 inch (12.7mm) thick insulation bonded to all interior sides of the enclosure.
Equipment Mounting Plate The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Glands The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel and stainless steel.
Optional Lockable Latches For additional protection of internal equipment installed, three lockable latches are available. TheHN-0005is a keyed lock set which includes two keys. Similar to the HN-0005, theHN-0001has an interlock feature that traps the key when it is in the unlocked position. TheHN-0006allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
