Internal 2U 19" Vertical Equipment Rack

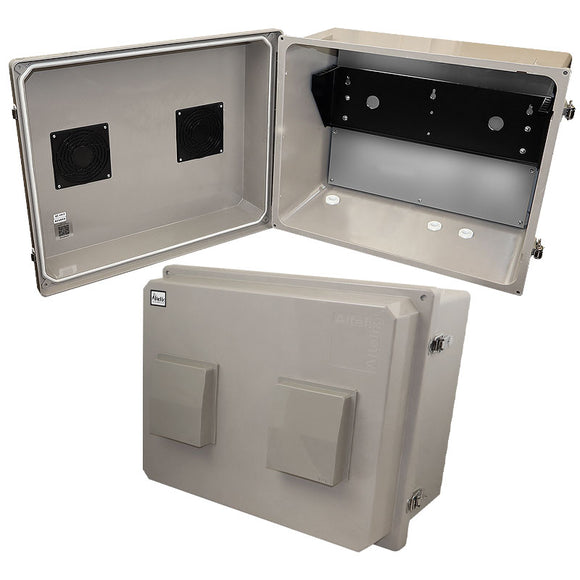

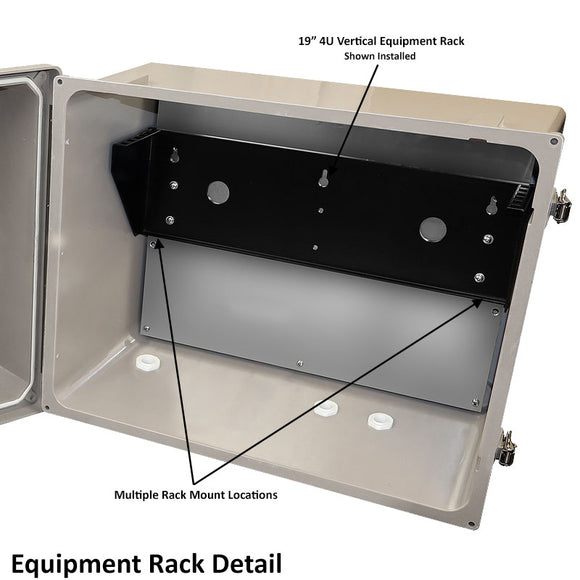

The NF162012VP-RV2U features a standard 19" 4U vertical equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Two mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 2U rack is 12.0" (305mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Vented Weatherproof Enclosure Provides Extreme Protection

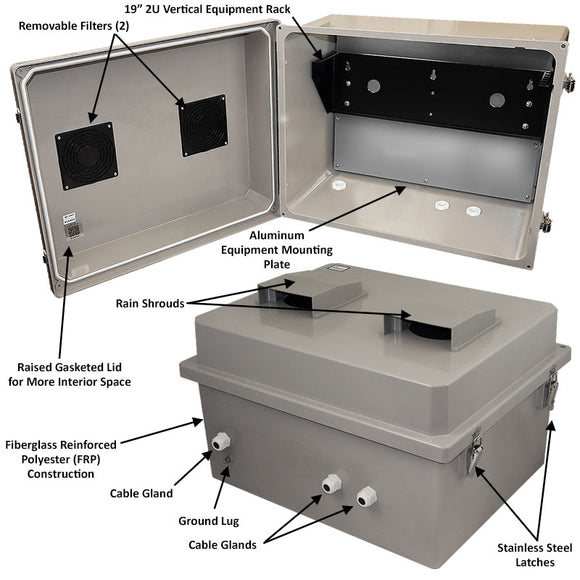

The Altelix NF162012VP-RV2U enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
