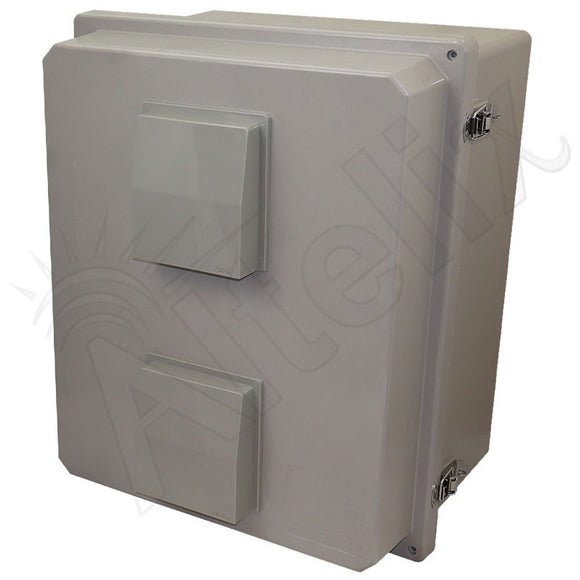

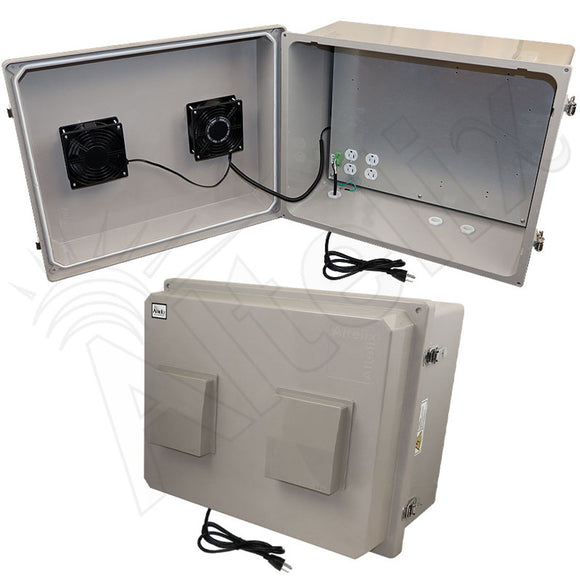

Altelix 20x16x12 Fiberglass Weatherproof Vented NEMA Enclosure with Dual Cooling Fans, 120 VAC Outlets & Power Cord

Altelix SKU: NF162012VFA1C

$561.82

07/12/24 important shipping note: Altelix production is running slower than normal. Products labeled as same day shipping are currently having slightly longer lead times. If you're concerned please reach out to customer service. Thank you in advance.

Lead Time: NF201612VFA1C Is Estimated To Ship Same Day on Orders Placed Before 11 AM EST. NF162012VFA1C Is Estimated To Ship In 1-2 Business Days From Time Of Order Entry.

Availability: In Stock As Of 7/2/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • New 16x20x12 Size Ideal for Wider Equipment as well as 19" Wide Equipment Racks!
  • Dual Thermostat Controlled Cooling Fans with 4" Vents, Rain Shields and Screens
  • Four Pre-Wired 120VAC Outlets and 5 Foot 3-Prong Power Cord
  • Aluminum Equipment Mounting Plate
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
Applications
  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • 19" Wide Equipment Racks (NF162012VFA1C Only)
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure

Plug and Play Power for Easy Setup

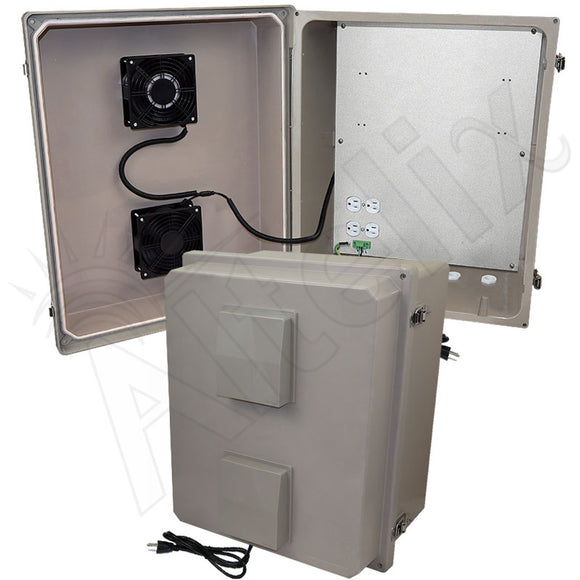

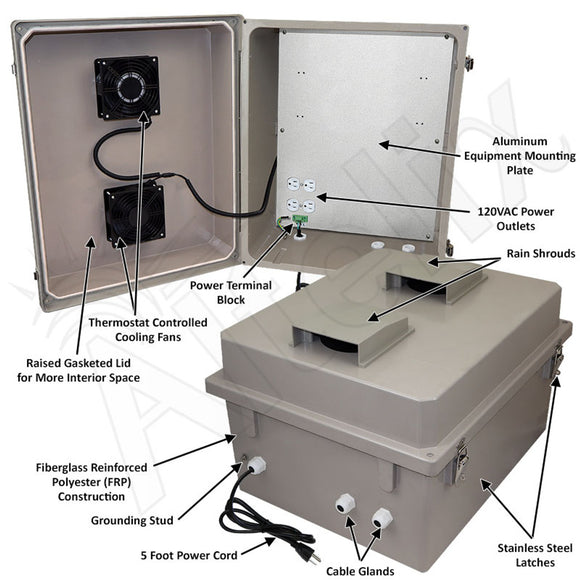

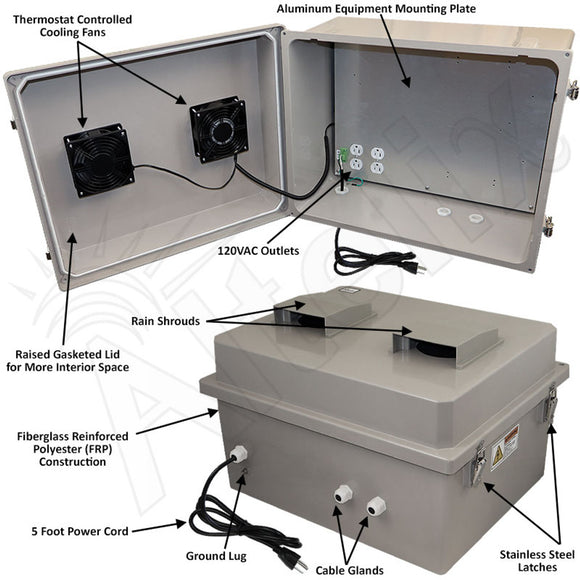

The Altelix NF162012V/NF201612VFA1C Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. The NF162012VFA1C/NF201612VFA1C is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Four pre-wired 120VAC power outlets inside the enclosure provide power to your equipment. The finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Dual Cooling Fans Ventilation

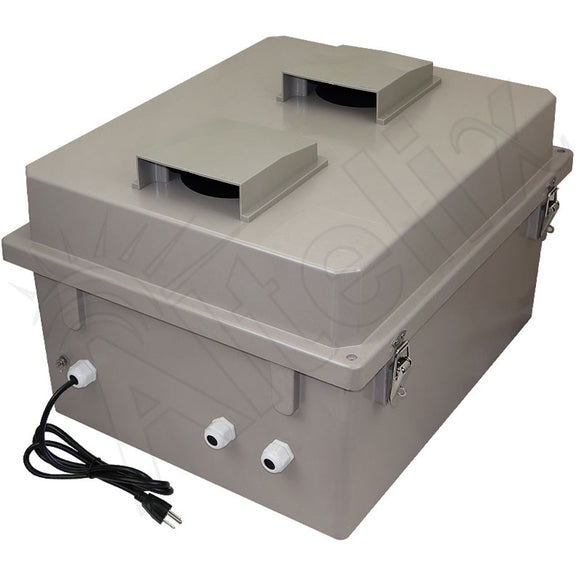

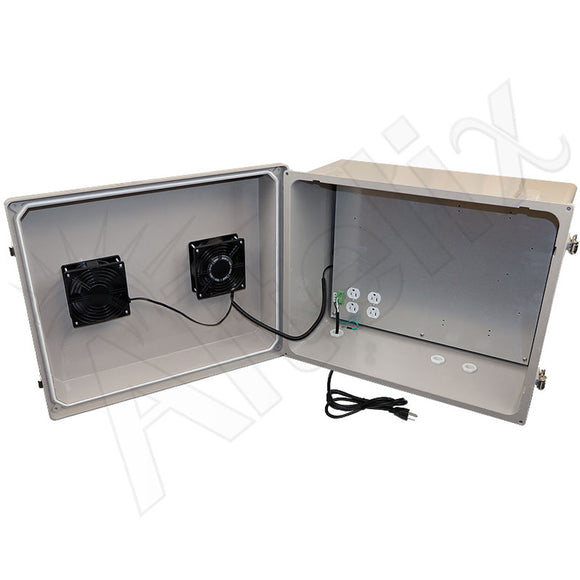

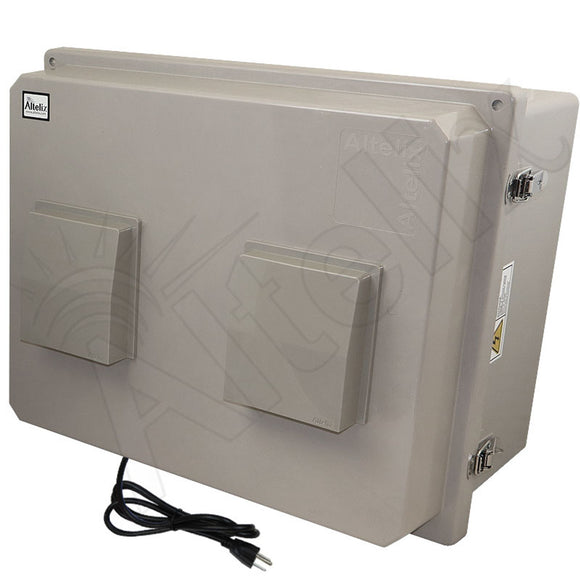

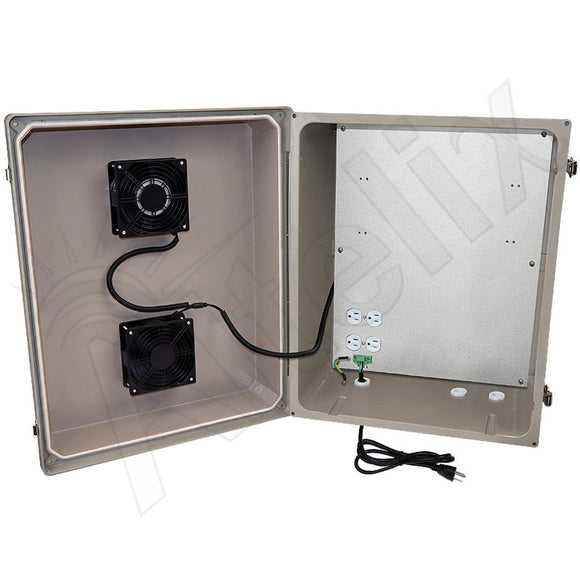

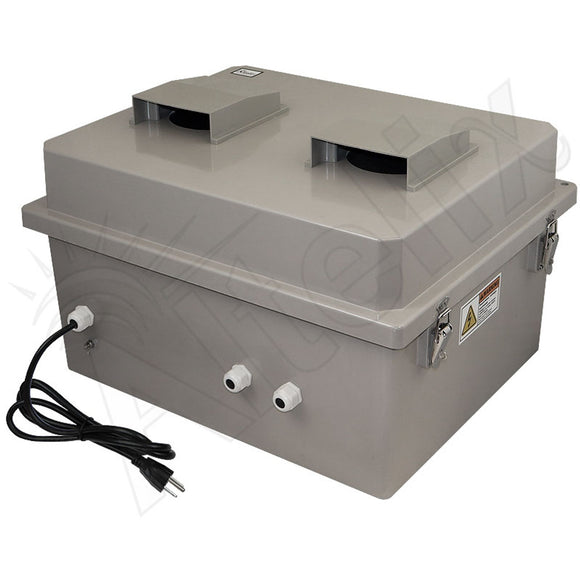

This enclosure features dual 4" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by providing air flow through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space
The NF162012V series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012V/NF201612VFA1C can accommodate a wide range of equipment.

Cable Glands

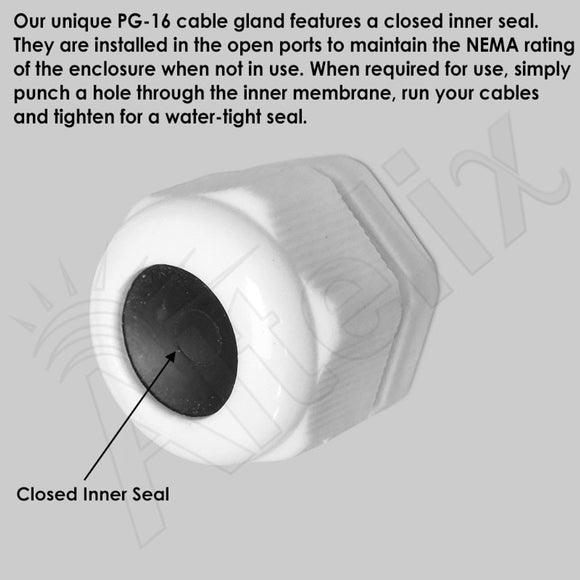

The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting

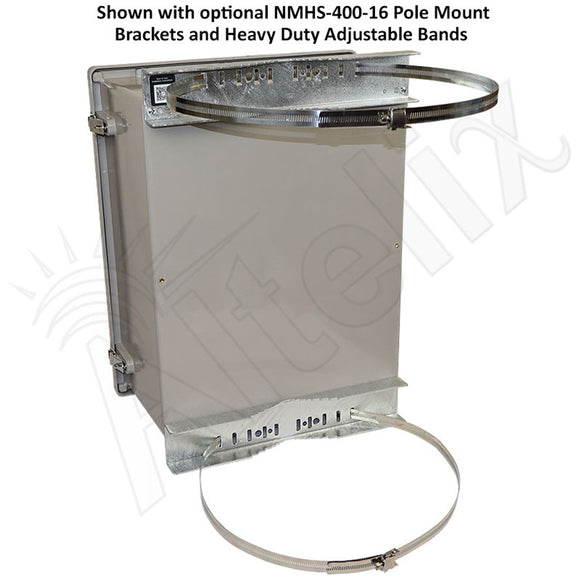

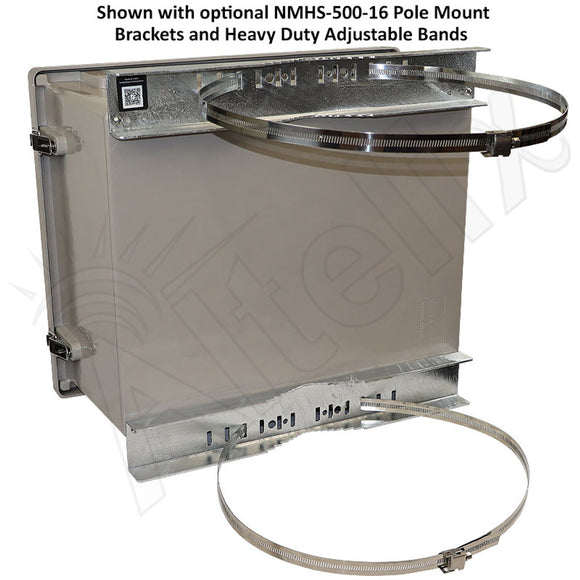

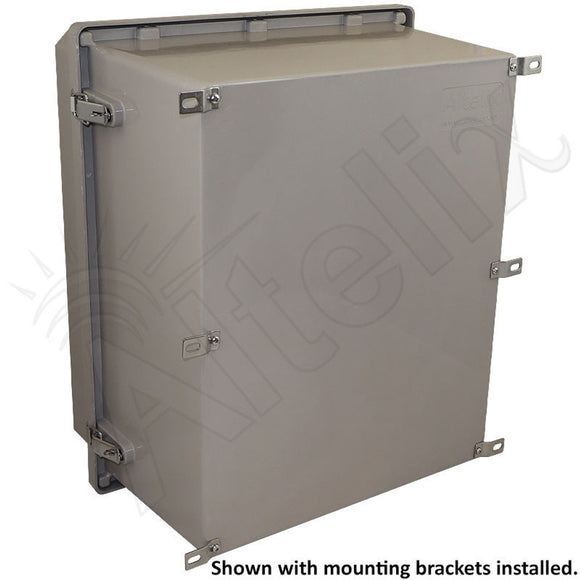

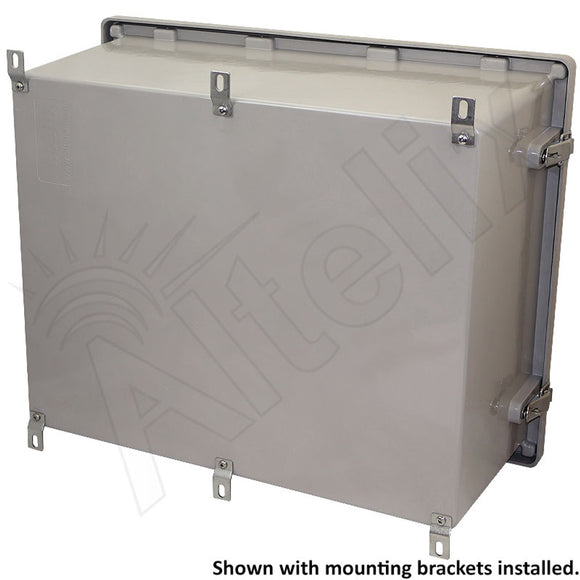

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
