Altelix 20x16x12 Industrial DIN Rail Fiberglass Enclosure NEMA 4X IP66

Altelix 20x16x12 Industrial DIN Rail Fiberglass Enclosure NEMA 4X IP66

Altelix SKU: NF201612-DIN

$303.93

Lead Time: Estimated To Ship In 1 Business Day From Time Of Order Entry

Availability: In Stock As Of 10/18/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • New Larger 20x16x12 Size to Accommodate More Equipment!
  • Steel Din Rail Mounting Brackets with 16 Rail Mounting Positions
  • Includes (3) Steel 35mm Top Hat DIN Rails and Screws
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Includes Cable Glands and (4) Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
 Applications
  • DIN Rail Mounted Equipment
  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Solar Equipment Enclosure
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure



NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

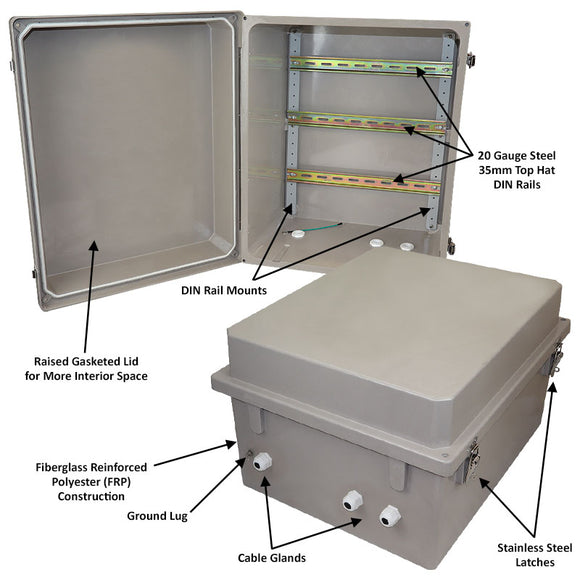

The Altelix NF201612-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 16 DIN rail mounting positions. For convenience, the enclosure also includes three pre-cut steel 35mm top-hat rails and mounting hardware.

Altelix NF201612 Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Increased Interior Space
The NF201612 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612 can accommodate a wide range of equipment.

Also Available in 16”x20”x12” Configuration
This enclosure is also available in a 16”x20”x12” configuration. This is ideal for installing wider horizontally mounted equipment in the enclosure or when vertical installation space for the enclosure is limited. For more information see NF162012-DIN.

Cable Glands
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available
