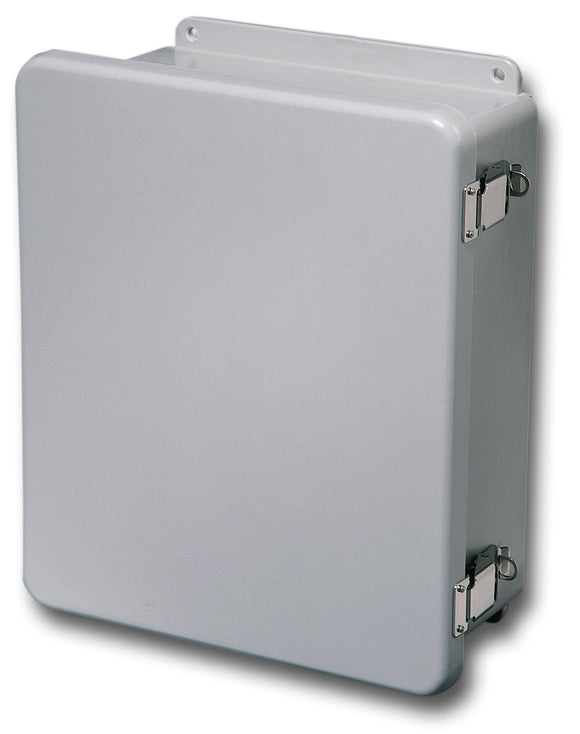

N4X-FG-CHQR Series - Fiberglass Enclosures with Hinged Cover and Quick Release Latch

Adalet

$65.44
Product Information
SKU: N4X-FG-060404CHQR-23843 Weight: 2.5 lb Rating : NEMA-1, NEMA-3, NEMA-4X, NEMA-6P, NEMA-12 Material : Fiberglass



The quick release latch series is designed to house terminal blocks, instrumentation, and electrical controls.  Suitable for indoor or outdoor applications, these enclosures protect against elements such as oil, water, dirt, and dust.

Standard Features

•  Twelve standard sizes available
•  Padlockable quick release latch for quick entry
•  Full length stainless steel hinged cover
•  Integral mounting flange
•  Cover opens full 180°+
•  Mounting bosses with threaded brass inserts for mounting panel installation
•  Poured polyurethane gasket provides water-tight, dust-tight seal
•  Light weight and impact resistant

Design Options

•  Mounting panels
•  Drilled entries and cut-outs available
•  Molded in custom colors
•  Silk screening, paint, and decals

Material

•  Hot compression molded fiberglass reinforced polyester (thermoset)
•  Non-corrosive and UV resistant
•  Smooth surface, no color variations, swirls, or color pockets
•  Non-flame propagating and chemical resistant
•  Color described as light gray



Catalog Spec Sheet



Drawings:

.pdf files .dwg files
N4X-FG-060404CHQR_PDF N4X-FG-060404CHQR_DWG
N4X-FG-060604CHQR_PDF N4X-FG-060604CHQR_DWG
N4X-FG-080604CHQR_PDF N4X-FG-080604CHQR_DWG
N4X-FG-080804CHQR_PDF N4X-FG-080804CHQR_DWG
N4X-FG-100804CHQR_PDF N4X-FG-100804CHQR_DWG
N4X-FG-121005CHQR_PDF N4X-FG-121005CHQR_DWG
N4X-FG-121206CHQR_PDF N4X-FG-121206CHQR_DWG
N4X-FG-140706CHQR_PDF N4X-FG-140706CHQR_DWG
N4X-FG-141206CHQR_PDF N4X-FG-141206CHQR_DWG
N4X-FG-161406CHQR_PDF N4X-FG-161406CHQR_DWG
N4X-FG-181608CHQR_PDF N4X-FG-181608CHQR_DWG
N4X-FG-201608CHQR_PDF N4X-FG-201608CHQR_DWG
