N4X-FG-CHTL Series - Fiberglass Enclosures with Hinged Cover and Twist Latch

Adalet

$69.53
Product Information

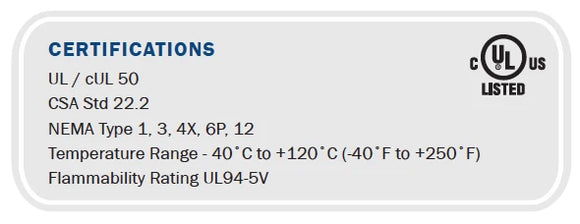

SKU: N4X-FG-060404CHTL-23840 Weight: 2.5 lb Rating : NEMA-1, NEMA-3, NEMA-4X, NEMA-6P, NEMA-12 Material : Fiberglass

Adalet's CHTL Series protects against unwanted elements while providing top-quality durability and safety.

Standard Features

•  Twelve standard sizes available
•  Twist latch for quick entry
•  Full length stainless steel hinged cover
•  Integral mounting flange
•  Cover opens full 180°+
•  Mounting bosses with threaded brass inserts for mounting panel installation
•  Poured polyurethane gasket provides water-tight, dust-tight seal
•  Light weight and impact resistant

Design Options

•  Mounting panels
•  Drilled entries and cut-outs available
•  Molded in custom colors
•  Silk screening, paint, and decals

Material

•  Hot compression molded fiberglass reinforced polyester (thermoset)
•  Non-corrosive and UV resistant
•  Smooth surface, no color variations, swirls, or color pockets
•  Non-flame propagating and chemical resistant

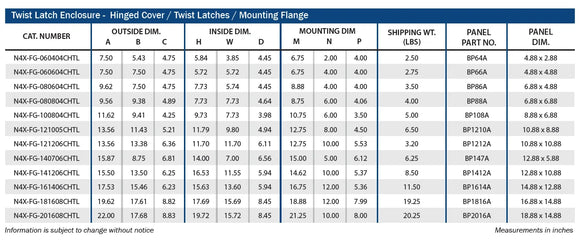

Catalog Spec Sheet

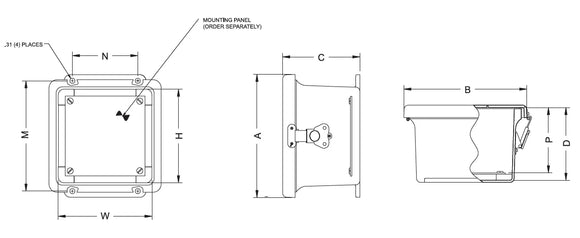

Drawings:

 .pdf files .dwg files
N4X-FG-060404-CHTL_PDF N4X-FG-060404-CHTL_DWG
N4X-FG-060604-CHTL_PDF N4X-FG-060604-CHTL_DWG
N4X-FG-080604-CHTL_PDF N4X-FG-080604-CHTL_DWG
N4X-FG-080804-CHTL_PDF N4X-FG-080804-CHTL_DWG
N4X-FG-100804-CHTL_PDF N4X-FG-100804-CHTL_DWG
N4X-FG-121005-CHTL_PDF N4X-FG-121005-CHTL_DWG
N4X-FG-121206-CHTL_PDF N4X-FG-121206-CHTL_DWG
N4X-FG-140706-CHTL_PDF N4X-FG-140706-CHTL_DWG
N4X-FG-141206-CHTL_PDF N4X-FG-141206-CHTL_DWG
N4X-FG-161406-CHTL_PDF N4X-FG-161406-CHTL_DWG
N4X-FG-181608-CHTL_PDF N4X-FG-181608-CHTL_DWG
N4X-FG-201608-CHTL_PDF N4X-FG-201608-CHTL_DWG
