N4X-FG-LARGE Series - Fiberglass Enclosures with Twist Latch and Padlock Provision

Adalet

$326.78
Product Information

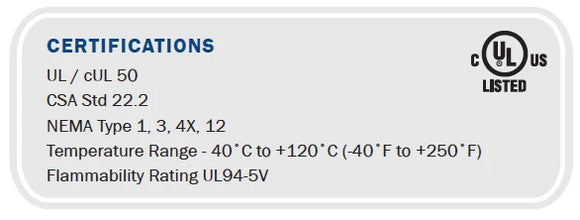

SKU: N4X-FG-201606CH-23378 Weight: 17.0 lb Rating : NEMA-1, NEMA-3, NEMA-4X, NEMA-12 Material : Fiberglass

Protect against elements such as dust, dirt, oil, and water with large control fiberglass enclosures from Adalet.  Suitable for either outdoor or indoor use, this series of enclosures can house electronic/electrical controls, mechanical controls, and instrumentation systems.

Standard Features

•  Ten standard sizes available
•  Twist latch for quick entry
•  Raised cover for additional usable depth
•  Stainless steel hinged cover
•  Integral mounting flange
•  Built in padlock hasp
•  Mounting bosses with threaded brass inserts for mounting panel installation
•  Poured polyurethane gasket provides water-tight, dust-tight seal
•  Light weight and impact resistant

Design Options

•  Mounting panels
•  Drilled entries and cut-outs available
•  Molded in custom colors
•  Silk screening, paint, and decals

Material

•  Hot compression molded fiberglass reinforced polyester (thermoset)
•  Non-corrosive and UV resistant
•  Smooth surface, no color variations, swirls, or color pockets
•  Non-flame propagating and chemical resistant
•  Color described as Light Gray

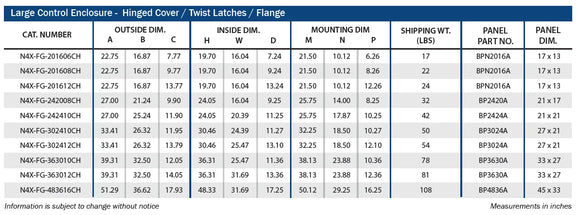

Catalog Spec Sheet

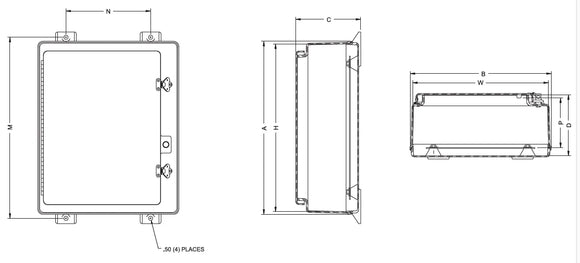

Drawings:

.pdf files .dwg files
N4X-FG-201606CH_PDF N4X-FG-201606CH_DWG
N4X-FG-201608CH_PDF N4X-FG-201608CH_DWG
N4X-FG-201612CH_PDF N4X-FG-201612CH_DWG
N4X-FG-242008CH_PDF N4X-FG-242008CH_DWG
N4X-FG-242410CH_PDF N4X-FG-242410CH_DWG
N4X-FG-302410CH_PDF N4X-FG-302410CH_DWG
N4X-FG-302412CH_PDF N4X-FG-302412CH_DWG
N4X-FG-363010CH_PDF N4X-FG-363010CH_DWG
N4X-FG-363012CH_PDF N4X-FG-363012CH_DWG
N4X-FG-483616CH_PDF N4X-FG-483616CH_DWG
