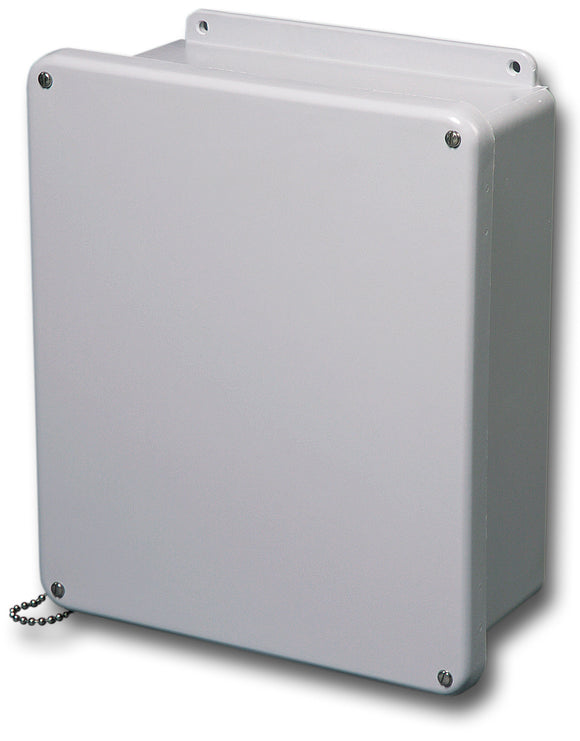

N4X-FG-SC Series - Fiberglass Enclosures with Lift-Off Screw Cover and Stainless Steel Cover Screws - Includes Cover Chain


Product Information
SKU: N4X-FG-060604SC-23337 Weight: 2.75 lb Rating : NEMA-1, NEMA-3, NEMA-4X, NEMA-6P, NEMA-12 Material : Fiberglass

These enclosures and be used outdoors or indoors to protect equipment against dust, dirt, oil, and water.

Standard Features

•  Five standard sizes available
•  Lift off cover design
•  Surface flat stainless steel screws
•  Integral mounting flange
•  Stainless steel beaded cover chain
•  Poured polyurethane gasket provides water-tight, dust-tight seal
•  Light weight and impact resistant

Design Options

•  Mounting panels
•  Drilled entries and cut-outs available
•  Molded in custom colors
•  Silk screening, paint, and decals


•  Hot compression molded fiberglass reinforced polyester (thermoset)
•  Non-corrosive and UV resistant
•  Smooth surface, no color variations, swirls, or color pockets
•  Non-flame propagating and chemical resistant
•  Color described as Light Gray


Catalog Spec Sheet



.pdf files .dwg files
N4X-FG-060404SC_PDF N4X-FG-060404SC_DWG
N4X-FG-060604SC_PDF N4X-FG-060604SC_DWG
N4X-FG-080604SC_PDF N4X-FG-080604SC_DWG
N4X-FG-080804SC_PDF N4X-FG-080804SC_DWG
N4X-FG-100804SC_PDF N4X-FG-100804SC_DWG
N4X-FG-121005SC_PDF N4X-FG-121005SC_DWG
N4X-FG-121206SC_PDF N4X-FG-121206SC_DWG
N4X-FG-140706SC_PDF N4X-FG-140706SC_DWG
N4X-FG-141206SC_PDF N4X-FG-141206SC_DWG
N4X-FG-161406SC_PDF N4X-FG-161406SC_DWG
N4X-FG-181608SC_PDF N4X-FG-181608SC_DWG
N4X-FG-201608SC_PDF N4X-FG-201608SC_DWG
