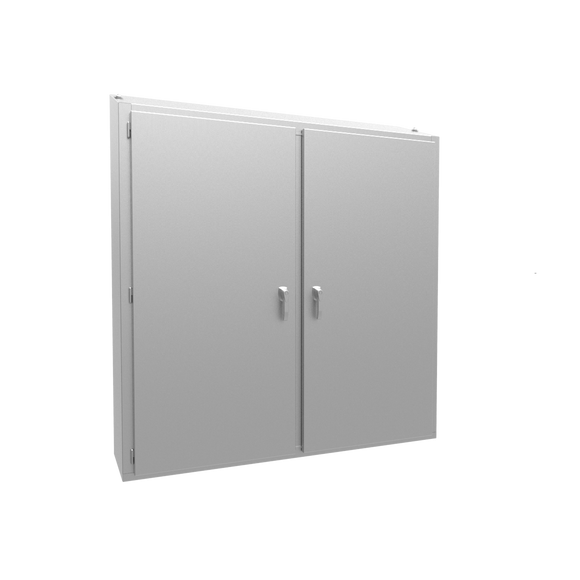

Application

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for larger applications.
• 20¬∞ sloped top prevents water from resting on top of enclosure.

Standards

• UL 508A Type 3R, 12, 4, 4X
• CSA Type¬†3R, 12, 4, 4X
• Complies with
  • NEMA Type¬†3R, 12, 13, 4, 4X
  • IEC 60529, IP66
• Appropriate components are required to maintain these standards.

Construction

• Formed from 12 gauge 304 or 316L stainless steel with smooth, continuously welded seams.
• Flange trough collar (FTC) around door opening excludes liquids and contaminants.
• Heavy duty lifting eyes are anchored into reinforced top corners.
• Removable doors are secured with bullet style, heavy duty, lift off hinges.
• Formed 10 gauge steel inner panel is provided on collar studs.
• Panel supports are provided.
• Center post is removable, providing easy panel installation.
• Heavy duty three point latching mechanism with heavy duty roller ends is provided for ease of door closing.
• Seamless poured-in place gasket.
• Stainless steel door handles complete with padlock hasp.
• A provision for mounting fluorescent lighting is provided.
• A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door.
• A literature pocket is provided for the inside of the door.

Finish

• Door and enclosure are natural stainless steel with a smooth, brushed finish..
• Inner panel is finished in white powder coating.

Accessories

• Wash Down Floor Stand Kit
• Door Stop Kit
• Window Kits
• Climate Control
• Lighting
• General Accessories
