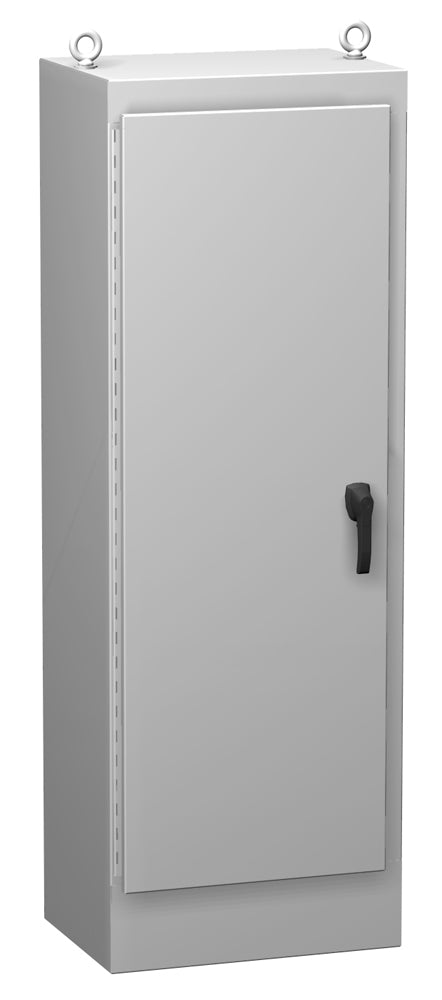

HN4FS Series 304 Stainless Steel Free Standing Enclosures with 3 Point Latch

Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mount­ing or rack mounting of equipment.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
• A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Construction

• Formed 12 gauge 304 stainless steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
• Doors are supported with heavy gauge continuous hinges.
• New 3-pt padlocking door handle.
• Seamless poured-in place gasket.
• A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
• Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.

Finish

• Cover and enclosure are natural stainless steel with a smooth brushed finish.
• Optional inner panels are finished in white powder paint.

Catalog Spec Sheet

Drawings:

HN4FS602418SS

HN4FS722418SS

HN4FS723618SS

HN4FS603624SS
