N4X Breather Drain

N4X Breather Drain

Hammond Manufacturing SKU: BDN4XS16

$90.46

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at enclosurehub@adalet.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

  • Packaged individually.
  • Provides for controlled pressure compensation due to temperature variations (i.e. night/day operation).
  • When mounted to bottom of enclosure, this unique design provides a method of effectively draining moisture from within the enclosure
  • Recommend two plugs per cabinet in opposite locations.
  • Pipe Thread M20 x 1.5 (minimum cutout 20.2 mm / 0.80 inches)
  • Recommended Torque 10 NM
BDN4XN1 BDN4XS16
CSA/A Ex Approvals: Class I, Zone 1, Ex e II Class I, Zone 1, Ex e II
Class I Division 2 Groups ABCD Class I Division 2 Groups ABCD
Class II EFG, Class III Class II EFG, Class III
Ingress Protection: IP66, CSA Enclosure Type NEMA 4X IP66, CSA Enclosure Type NEMA 4X
Impact Resistance: 20Nm (7Nm GF Nylon) N/A

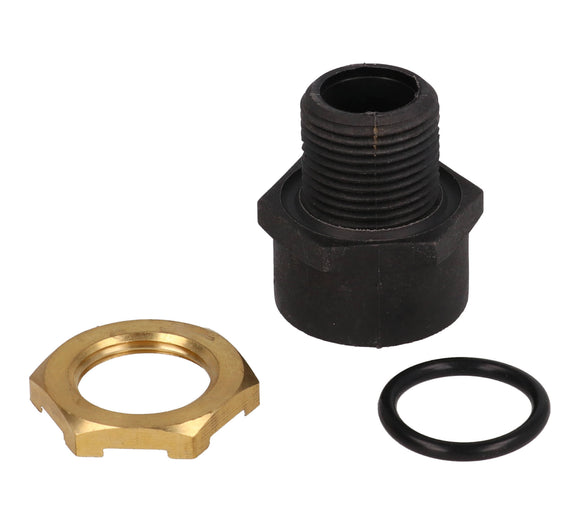

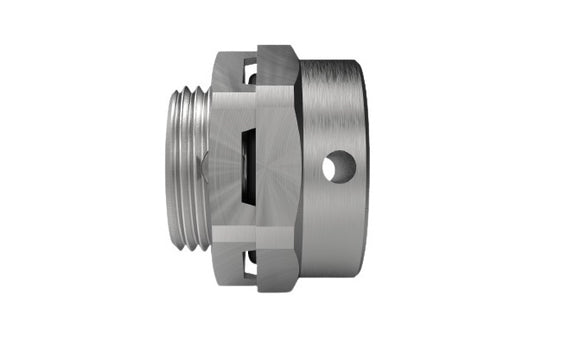

Materials: Durethan BKV 30 N1 30% Glass Filled Nylon 316L Stainless Steel
O Ring - Nitrile O Ring - Nitrile
Fixing nut - Brass Fixing nut - 316L SS
Operating Temp: -50C to +85C -30C to +100C
