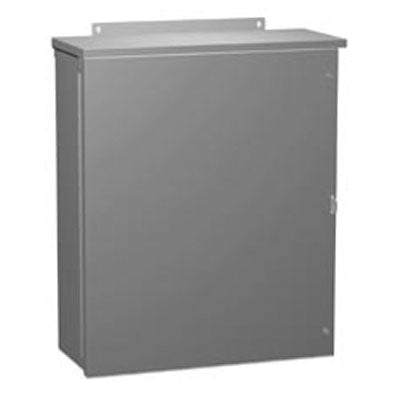

C3R Series Nema 3R Painted Galvanized Steel Enclosures with Hinged Screw Cover and Padlock Hasp C3R HCRMD Series

C3R Series Nema 3R Painted Galvanized Steel Enclosures with Hinged Screw Cover and Padlock Hasp C3R HCRMD Series

Hammond Manufacturing SKU: C3R16126HCR

$140.00

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at enclosurehub@adalet.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Application

  • Designed for use as a wiring/junction box.
  • Provides protection against rain, sleet, snow and dripping water.

Standards

  • UL-50 Type 3R
  • CSA Type 3R
    • Complies with
    • NEMA Type 3R
    • IEC 60529, IP24

Construction

  • Formed and spot welded from 16 or 14 gauge galvanized steel.
  • Drip shield top and seam-free sides, front and back.
  • Stainless steel continuous hinge.
  • Cover fastened with captive plated screws.
  • Padlocking hasp.
  • Collar studs provided for mounting optional panels.
  • External mounting feet.
  • Oil resistant gaskets are permanently secured.

Finish

  • Enclosure and cover are finished inside and out in ANSI 61 gray powder coating.
