Application

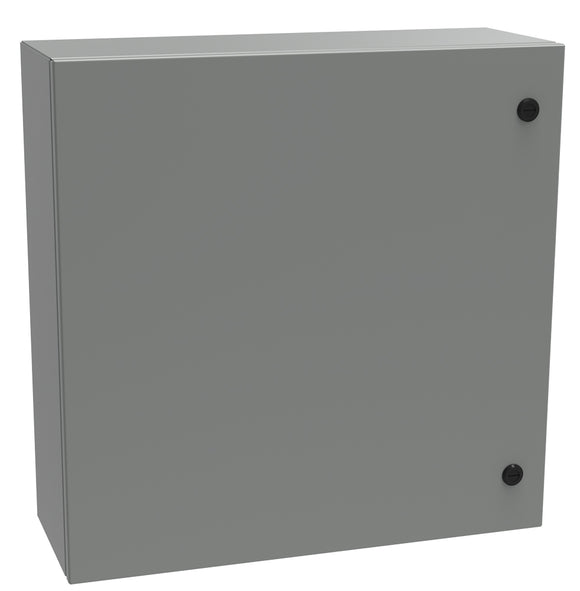

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
• Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
• A wide range of sizes and practical accessories make this product line a complete package.

Standards

• UL 508A Type 3R, 4, and 12
• CSA Type 3R, 4, and 12
• Complies with
  • NEMA Type 3R, 4, and 12
  • IEC 60529, IP66

Construction

• Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge steel.
• Smooth, continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Door latching: Type A has slotted quarter turns, Type B has handle with 3 point latching, Type C has handle with 3 point latching plus additional quarter turns top and bottom.
• Doors may be easily removed for modifications and are interchangeable.
• Seamless poured-in place gasket.
• Collar studs provided for mounting inner panel.
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Bonding stud provided on door and grounding stud installed in enclosure.
• Hinges are constructed from 304 stainless steel.
• Hinge pins are stainless steel.
• Quarter turn latch and multi-point handle (key lockable) are zinc diecast with black epoxy finish.
• Door alignment guide provided on 36" wide enclosures.

Finish

• Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
