Altelix Air Conditioned Enclosure with Heat and Vertical 4U Equipment Rack - Steel Weatherproof NEMA 4X Rated with 120VAC Power Outlets

Altelix Air Conditioned Enclosure with Heat and Vertical 4U Equipment Rack - Steel Weatherproof NEMA 4X Rated with 120VAC Power Outlets

Altelix SKU: NS242416A1C-AZ-RV4U

$1,850.67

Lead Time: Estimated Lead Time is 2-3 Business Days

Availability: In Stock End Of January 2026

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at enclosurehub@adalet.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • 800 BTU air conditioning and 520W heating system with programmable digital temperature controller
  • Externally mounted AC/Heating unit to maximize interior space
  • Maintenance free AC/Heater with no moving components, no compressor, refrigerant or filters
  • Reliable solid state construction with long life span
  • Digital controller features programmable Under/Over temperature alarms
  • Turn-on/Turn-off temperatures for heating and cooling can be programmed separately
  • Includes heavy duty steel 19" vertical 4U equipment rack frame
  • (4) Internal pre-wired 120VAC power outlets with 5 Foot 3-prong power cord
  • Enclosure features heavy duty continuous seam welded 18 gauge steel construction
  • Epoxy polyester textured light gray powder coat finish
  • Dual quarter-turn door latches with key
  • NEMA Type 4, 4X / IP66 Rated
  • Enclosure features 0.500" thick interior insulation to help maintain internal temperatures
  • Optional wall and pole mounts available
 Applications
  • 19" Rack mountable equipment
  • Protects sensitive rack mounted electronics from heat, cold, moisture and dust in remote or urban installations
  • Houses PLCs, HMIs, and other control hardware in harsh factory or processing environments
  • Keeps cameras, DVRs, and networking gear cool and dry in outdoor or high-temperature areas
  • Protects inverters, controllers, and batteries in solar or wind power setups
  • Used in traffic control systems, toll booths, and railway signaling equipment
  • Shields monitoring and control electronics from extreme weather and hazardous conditions
  • Ensures reliable operation of sensors and control systems in wet and corrosive environments
  • Maintains optimal conditions for sensors and data loggers in outdoor research or environmental monitoring
  • Network Ethernet switches and servers
  • Rack mountable audio/video equipment



The Altelix Heated and Air Conditioned Weatherproof NEMA 4X Enclosure is ideal for protecting sensitive rack mountable equipment from harsh environments and tampering. The digitally controlled heating and air conditioning system helps maintain optimal internal temperatures so internally mounted equipment can operate at peak performance. This enclosure is designed for both indoor and outdoor applications.

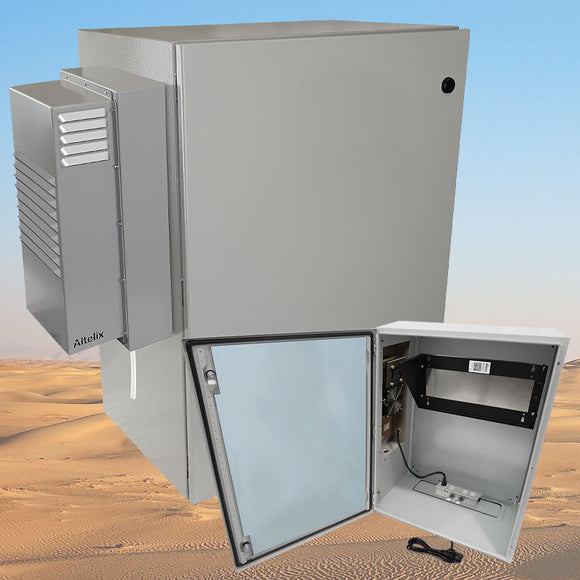

Maintenance Free Heating and Air Conditioning System
The NS322416A1C-AZ-RV4U features a digitally controlled heating and air conditioning system. Mounted externally on the enclosure to maximize interior space, this system provides 800 BTU of cooling and 520W of heating. Operation of this system is done via a programmable digital temperature controller. Heat and air conditioning Turn-On/Turn-Off temperatures can be separately programmed as well as Under/Over temperature alarms. The entire system is housed in a rugged powder coated steel housing and is mounted to the side of the enclosure. Power for this system is provided by one of the four internal 120VAC power outlets. An external drain on the Heat/AC unit is provided to direct any condensation to outside the enclosure.

Designed to be maintenance free, this AC/Heating system features no moving components (except for fan), no compressor, refrigerant or filters to be changed. The reliable solid state construction ensures a long operational life span.

Thermal Insulation
To help maintain internal temperatures, this enclosure features 0.50 inch (12.7mm) thick RF Transparent insulation attached to the interior of the enclosure.

Internal 4U 19" Vertical Equipment Rack Frame
The NS322416A1C-AZ-RV4U features a heavy duty standard 19" vertical 4U equipment rack frame. This heavy duty powder coated 16 gauge steel rack frame is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The vertical orientation makes it ideal to mount longer length equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements.

Installation Note: The max. depth of the 4U vertical rack is 24" (609.6mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

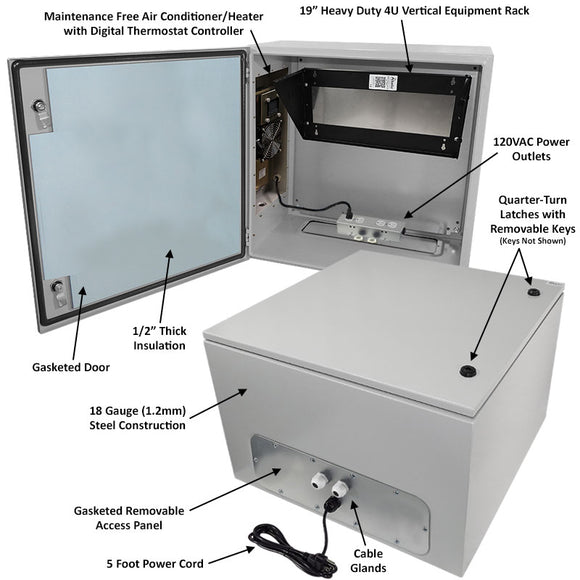

Enclosure Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

Removable Power Module
The NS322416A1C-AZ-RV4U features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Optional heavy duty pole and wall mounting kits as well as a Rohn tower mounting kit are available in the accessories section.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
