The Altelix NS322416D-AZ DC Powered Heated and Air Conditioned Weatherproof NEMA 4X Enclosure is ideal for protecting sensitive equipment from harsh environments and tampering. The digitally controlled heating and air conditioning system helps maintain optimal internal temperatures so internally mounted equipment can operate at peak performance. This enclosure is designed for both indoor and outdoor applications. Available in 12VDC, 24VDC or 48VDC models, this enclosure can be powered from DC solar and battery power sources.

Maintenance Free Heating and Air Conditioning System

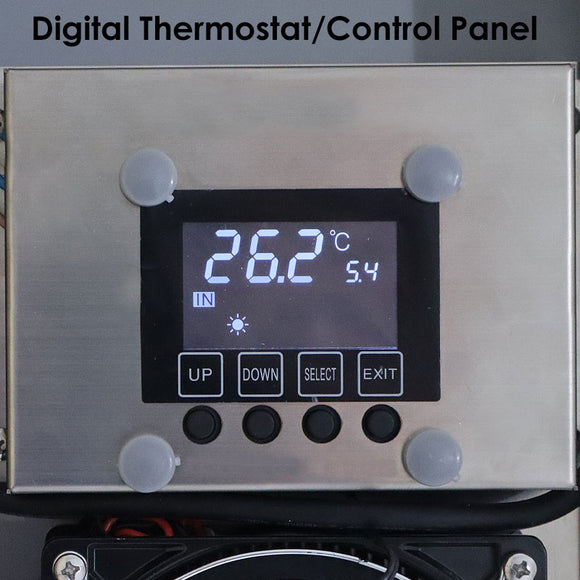

The NS322416D-AZ features a DC powered digitally controlled heating and air conditioning system. Mounted externally on the enclosure to maximize interior space, this system provides 800 BTU of cooling and 520W of heating. Operation of this system is done via a programmable digital temperature controller. Heat and air conditioning Turn-On/Turn-Off temperatures can be separately programmed as well as Under/Over temperature alarms. The entire system is housed in a rugged powder coated steel housing and is mounted to the side of the enclosure. An external drain on the Heat/AC unit is provided to direct any condensation to outside the enclosure.

Designed to be maintenance free, this AC/Heating system features no moving components (except for fan), no compressor, refrigerant or filters to be changed. The reliable solid state construction ensures a long operational life span.

Thermal Insulation
To help maintain internal temperatures, this enclosure features 0.50 inch (12.7mm) thick insulation attached to the interior of the enclosure.

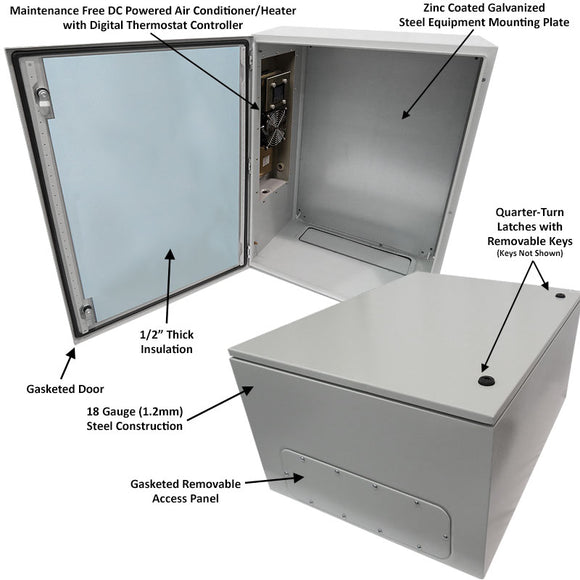

Enclosure Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

Removable Access Panels
The NS322416D-AZ includes a gasketed blank access panel which is ideal for custom applications. Optional access panels are also available which include features such as pre-installed cable glands and MC4 solar power connectors. These optional access panels replace the blank panel included with the enclosure. See the NS Access Panels tab above for all available panels.

Galvanized Steel Equipment Plate
This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Optional heavy duty pole and wall mounting kits as well as a Rohn tower mounting kit are available in the accessories section.

120VAC Models Available
The Altelix AZ series A/C enclosures are also available for 120VAC applications.

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
