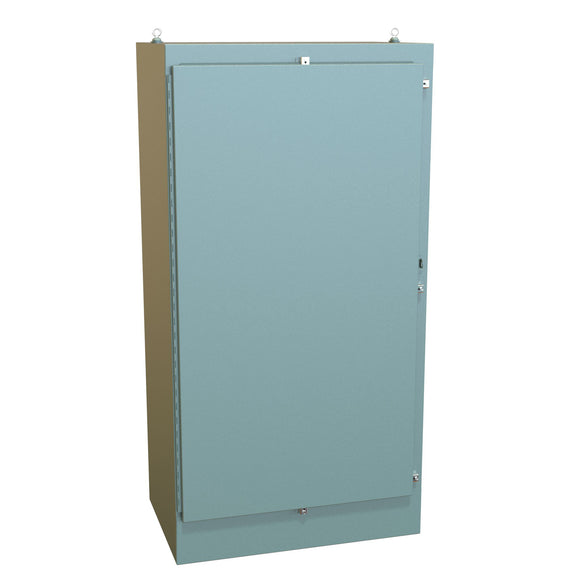

Type 4 Mild Steel Freestanding Enclosure 1418 N4 FS QT Series
Type 4 Mild Steel Freestanding Enclosure 1418 N4 FS QT Series
$2,264.96
Save
$-2,264.96
SKU: 1418N4W18QT
Hammond
Size:
72x25x18
72x25x18
72x31x24
72x37x24
Rating:
NEMA-3R, NEMA-4, NEMA-12
NEMA-3R, NEMA-4, NEMA-12
Material:
Painted Steel
Painted Steel
72x25x18 / NEMA-3R, NEMA-4, NEMA-12 / Painted Steel - $2,264.96
72x31x24 / NEMA-3R, NEMA-4, NEMA-12 / Painted Steel - $2,760.53
72x37x24 / NEMA-3R, NEMA-4, NEMA-12 / Painted Steel - $3,007.52
Description
Application
Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
Standards
UL 508A Type 3R, 4 and 12
CSA Type 3R, 4 and 12
Complies with
NEMA Type 3R, 4, 12 and 3
IEC 60529, IP66
Construction
Formed 12-gauge steel.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Lifting eyes provide for easy enclosure handling.
Doors are supported with heavy gauge continuous hinges.
Doors are secured with heavy-duty stainless-steel clamps.
Seamless poured-in place gasket.
Provision for light kit mounting.
Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
Finish
Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
Optional inner panels are available in white powder coating, or unpainted galvanized steel.
