New and Improved!
Altelix is excited to offer the newly redesigned NP17GYVMFA1C-STK3 enclosure for use with the Starlink® Gen 3 Router. Some of the new features include:

• Dual stainless steel latches
• Multiple mounting options - (4) external mounting feet and internal mounting points
• Deeper enclosure base
• Increased number of multiple sized knock-out holes provided on bottom of enclosure
• Now available with a 50W thermostat controlled heater

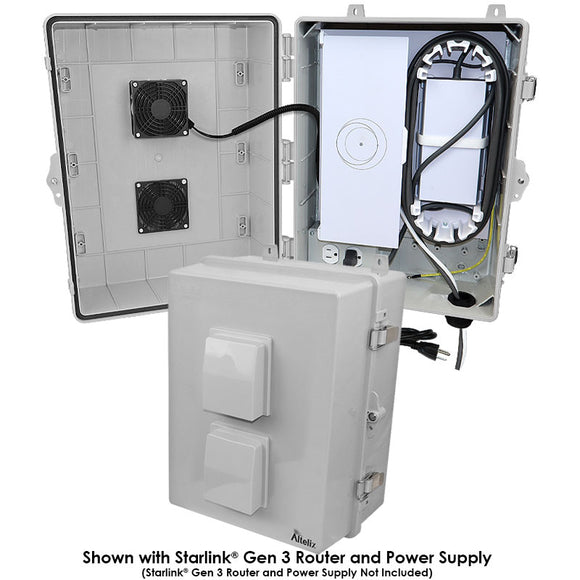

The Altelix Starlink® Gen 3 Enclosure is a weatherproof fan-cooled enclosure designed to provide the ultimate protection for the Starlink® Gen 3 Wi-Fi Router and Power Supply. It is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet.

Multi-Function Mounting Brackets

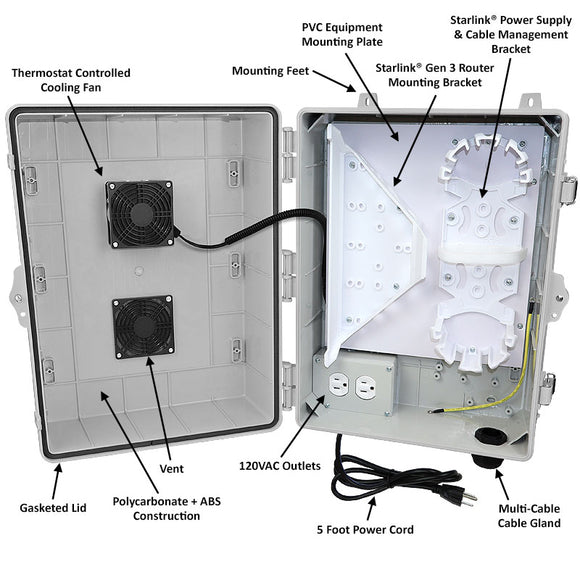

The Altelix Starlink® Gen 3 enclosure features innovated multi-function mounting brackets which are designed to easily mount both the Starlink® Gen 3 Router and Starlink® Power Supply. These mounting brackets also provide an easy-to-use cable management system for all the required cables. A pre-installed 5-port cable gland on the enclosure allows up to (5) pre-terminated cables (Starlink® Cables, Ethernet, etc.) to be easily fed into the enclosure.

Thermostat Controlled Cooling Fan
This enclosure features two 3" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all the power outlets available for the Starlink® Router and power supply.

50W Thermostat Controlled Heater
For all weather operations this enclosure is available with a 50W thermostat controlled heater in addition to the cooling fan. This heater generates a high air-current of warm air due to the design which supports natural convection. The internal design of this heater helps reduce the surface temperatures on the accessible sides of the housing. The heater turns on when the internal temperature reaches 41°F (5°C) and turns off when it rises to 59°F (15°C). The heater is mounted to a DIN rail in the enclosure lid and is wired internally leaving the power outlets available for the Starlink® power supply.

Polycarbonate + ABS Protection Built to Last
Built to last, this enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
