Altelix Weatherproof Audio Video Enclosure with Universal Equipment Mounting and 120 VAC Outlets

Altelix Weatherproof Audio Video Enclosure with Universal Equipment Mounting and 120 VAC Outlets

Altelix SKU: NP17AVHGY-2SA

$617.09

Lead Time: Estimated To Ship In 2-3 Business Days From Time Of Order Entry

Availability: In Stock As of 4/9/25

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at enclosurehub@adalet.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

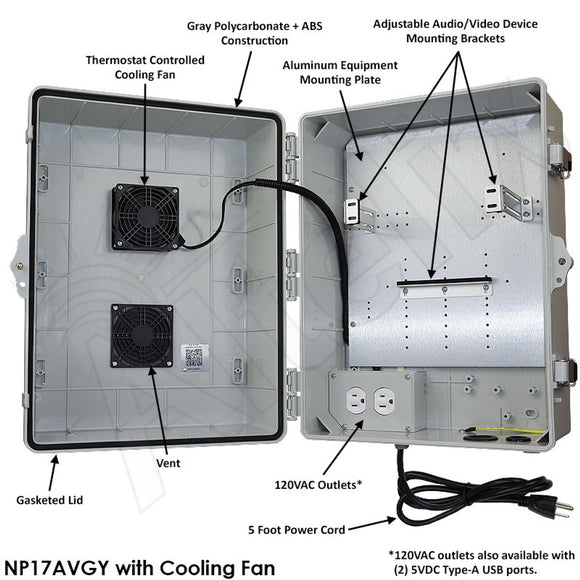

Features
  • New and Improved design provides better versatility and security!
  • Adjustable Universal Equipment Mounting Brackets
  • Thermostat controlled cooling fan to help expel heat
  • Dual vents with rain shields and screens
  • Also available with a DIN rail mounted 50W thermostat controlled heater
  • No electrical wiring required
  • (2) internal pre-wired 120VAC power outlets
  • Optional 120VAC outlet with USB-A and USB-C charging ports available
  • Pre-wired 5 foot 3-prong power cord
  • Durable Polycarbonate + ABS construction
  • Weatherproof and UV Stable, meets NEMA 3R, 3RX and IP24
  • Extra deep gasketed lid with dual stainless steel latches
  • Tamper-Proof locking screw with key and provision for padlock
  • Can be mounted using external feet or internal mounting points
  • Aluminum Equipment Mounting Plate
  • Mirror included in accessory kit to provide visibility to controls and indicator lights on installed equipment
  • Multiple size knock-out holes on bottom of enclosure
  • Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
  • Optional pole mount kits available
 Applications
  • Outdoor or indoor use of Audio/Video & Network Devices
  • Power and Charging of USB Devices*
  • Pool side, backyard audio/video entertainment systems
  • Outdoor hotel and hospitality audio/video entertainment systems
  • Marine audio entertainment systems
  • Protection of Equipment from Theft or Damage
*When used with NP17AV enclosures with USB ports option.

New and Improved!
Altelix is excited to offer the newly redesigned NP17AV enclosure for use with a wide range of Audio/Video and Network devices. Some of the new features include:

  • Dual stainless steel latches
  • Multiple mounting options - (4) external mounting feet and internal mounting points
  • Deeper enclosure base
  • Increased number of multiple sized knock-out holes provided on bottom of enclosure
  • Now available with a 50W thermostat controlled heater

The Altelix NP17AV Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for a wide range of Audio/Video and Network devices including:

  • SONOS® PORT
  • SONOS® Connect:Amp™ (For SONOS® AMP see NP17AVGY-SNS1)
  • Apple Mac mini®
  • Amazon Echo® Link Amp
  • Control4® EA-3 Controller (C4-EA3 and C4-EA3-V2)
  • Crestron® MC3 3-Series Control System®
  • Bluesound® Powernode Streaming Amplifier


Install Your A/V Equipment Securely Outdoors
This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Universal Mounting System
The NP17AV features a versatile adjustable mounting system that allows a wide range of devices to be installed inside the enclosure.

The following illustration shows the minimum and maximum size of devices that can be installed inside the enclosure.

Min. and Max. Device Sizes



Plug and Play Setup
The NP17AV enclosure provides easy plug-n-play installation. Once your equipment is securely mounted inside the enclosure, connect its power cord to the internal 120VAC power outlet. A cable grommet and cable gland on the enclosure allows cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running. Included in the accessory kit, a self-adhesive mirror can be attached to the inside of the enclosure to provide visibility to any controls and indicator lights on the installed equipment.

Cooling Fan Ventilation
The NP17AV enclosure features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets. Rain shrouds on the front door keep rain water from entering the enclosure.

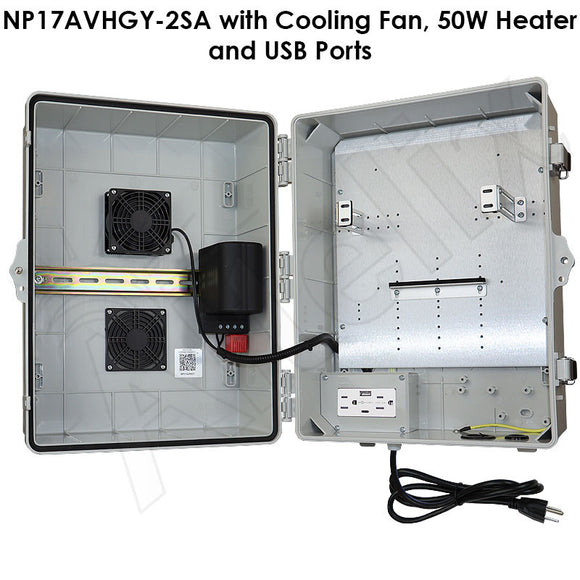

50W Thermostat Controlled Heater
For all weather operation the NP17AVH is available with a 50W thermostat controlled heater in addition to the cooling fan. This heater generates a high air-current of warm air due to the design which supports natural convection. The internal design of this heater helps reduce the surface temperatures on the accessible sides of the housing. The heater turns on when the internal temperature reaches 59°F (15°C) and turns off when it rises to 77°F (25°C). The heater is mounted to a DIN rail in the enclosure lid and is wired internally leaving the power outlets available for the installed equipment.

Optional USB Charging Ports
Available as an option, the NP17AVGY and NP17AVHGY can be purchased with USB-A and USB-C charging ports. These 5VDC 3.6A USB ports are integrated into the 120VAC outlet, so no additional room in the enclosure is required. Note: these ports used to power/charge electronic devices only, no data transfer capability.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Enclosure Mounting Option
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
