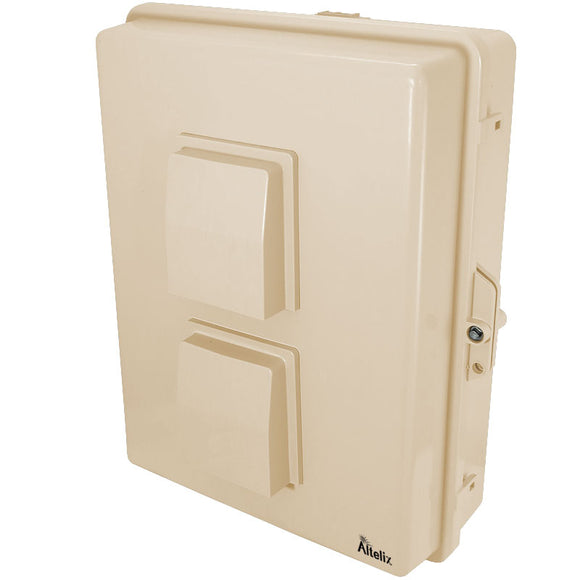

Altelix Weatherproof Enclosure with Cooling Fan, 120VAC Outlets and Power Cord for Wyebot® WIS4200 Access Point

Altelix SKU: NP17AVGY-YBT1

$280.25

Lead Time: ESTIMATED Lead Time of 1-2 Business Days From Time of Order Entry

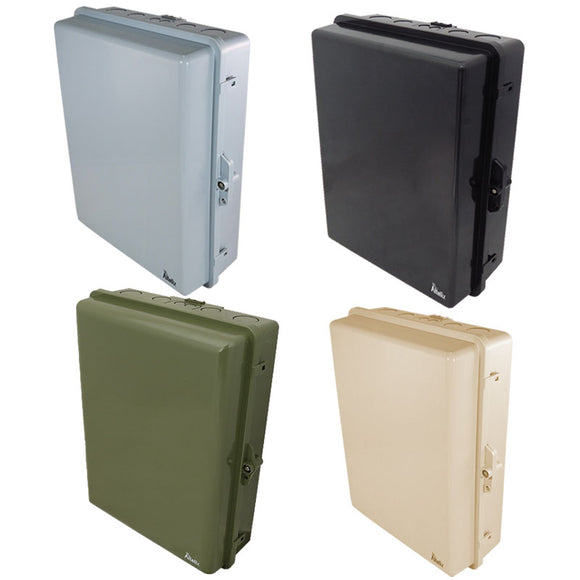

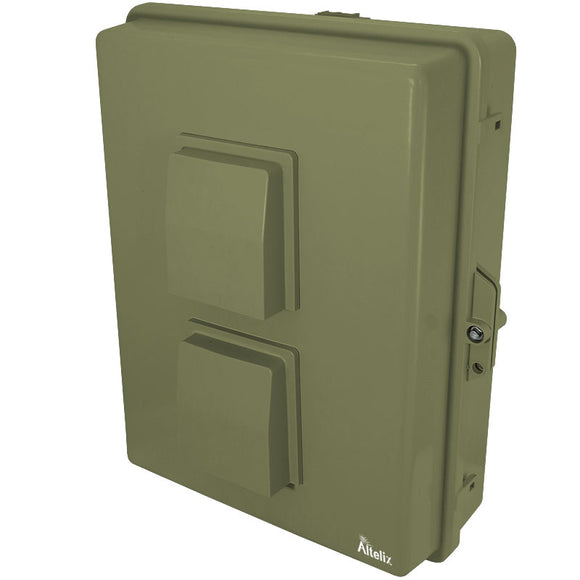

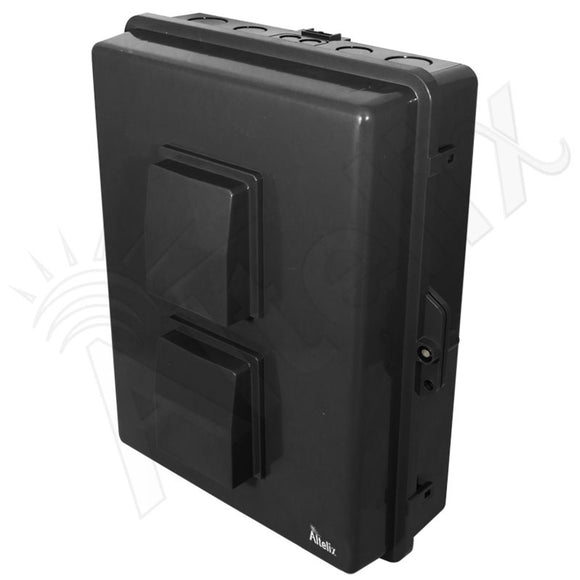

Availability: NP17AVTN-YBT1 (Light Ivory) & NP17AVGY-YBT1 (Gray) Are Out of Stock Until Mid- July. NP17AVGN-YBT1 (Green) & NP17AVBK-YBT1 (Black) Are In Stock As Of 5/2/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

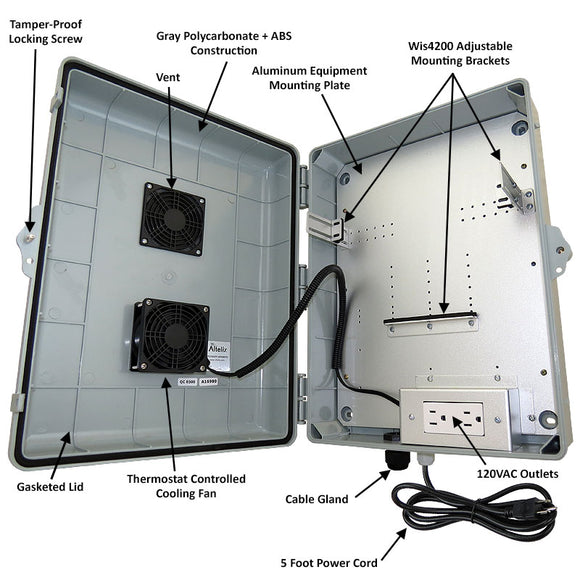

Features
  • Designed to fit the Wyebot¬Æ WIS4200 Access Point
  • Dual 3" Vents and Thermostat Controlled Cooling Fan
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Includes Rugged Aluminum Equipment Mounting Plate and Adjustable Brackets
  • Internal Pre-Wired 120VAC Outlets
  • Pre-wired 5 Foot Power Cord
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
Applications
  • Outdoor Wireless Network Installations
  • Protection of WIS4200 from Theft or Damage



The Altelix NP17AV-YBT1 Enclosure is a weatherproof fan-cooled enclosure designed to provide indoor or outdoor protection for the WyeBot® WIS4200 access point.

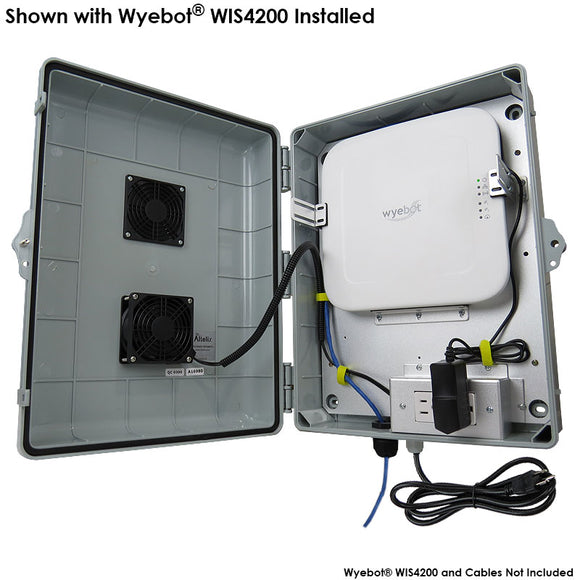

Install Your WyeBot® WIS4200 Securely Outdoors

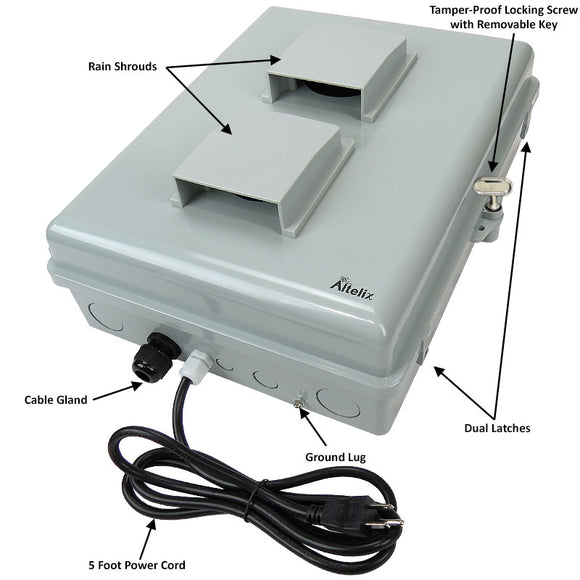

This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock.

WIS4200 Mounting System
The NP17AV-YBT1 features a versatile adjustable mounting system that allows you to easily install the WIS4200 inside the enclosure. This mounting system will not interfere with any of the WIS4200 ports such as Ethernet and power cables.

Plug and Play Setup
The NP17AV-YBT1 enclosure provides easy plug-n-play installation. Once the WIS4200 is securely mounted inside the enclosure, connect its power supply to the internal 120VAC power outlet. A cable gland on the enclosure allows cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running.

Note: If powering the WIS4200 via PoE, the enclosure will still need to be connected to a 120VAC power source for the cooling fan system to operate.

Cooling Fan Ventilation
The NP17AV-YBT1 enclosure features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets. Rain shrouds on the front door keep rain water from entering the enclosure.

Mounting
The NP17AV-YBT1 enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for mounting on poles or fence posts.

Wyebot® is a trademark or registered trademark of Wyebot, Inc.
