Altelix 24x24x16 120VAC 20A Stainless Steel NEMA Enclosure for UPS Power Systems with 19" Wide 6U Rack, Dual Cooling Fans, 20A Power Outlets & Power Cord

$1,775.09

SKU: NX242416VFA1C-20A-R6U Altelix

Features
  • Dual Thermostat Controlled Cooling Fans
  • (4) 120VAC 20A Outlets
  • Pre-Wired 20A Power Cord with 3-Prong Plug
  • Heavy Duty Continuous Seam Welded 18 Gauge 304L Stainless Steel Construction
  • Brushed Natural Finish
  • Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
  • Dual Quarter-Turn Door Latches with Key
  • Bonus Aluminum Bottle Opener Key Now Included!
  • NEMA Type 3R, 3RX / IP24 Rated
Applications
  • 19" Rack Mountable UPS Power Systems
  • Indoor / Outdoor 20A Electrical and Electronic Equipment
  • Rack Mountable 20A Audio/Video Equipment
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Agriculture Processing Facilities
  • Mining Operations and Refineries
  • Food Processing Facilities
  • Commerical Kitchens

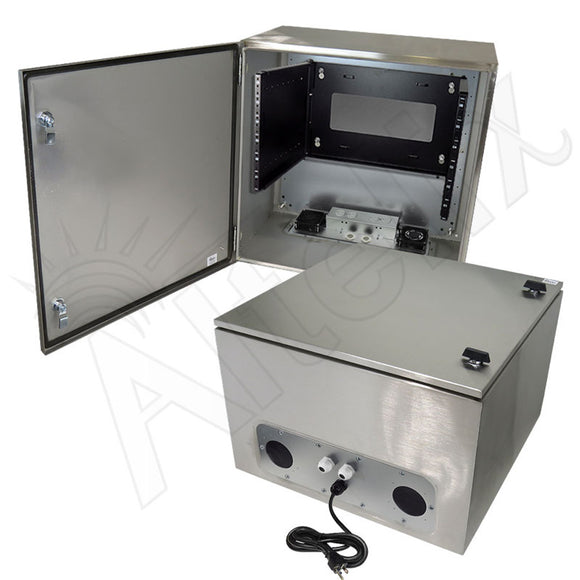

The Altelix NX242416VFA1C-20A-R6U 19" Rack 6U Stainless Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC 20A Power and Equipment Plate is ideal for protecting rack mountable UPS power systems as well as other 20A electronic equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

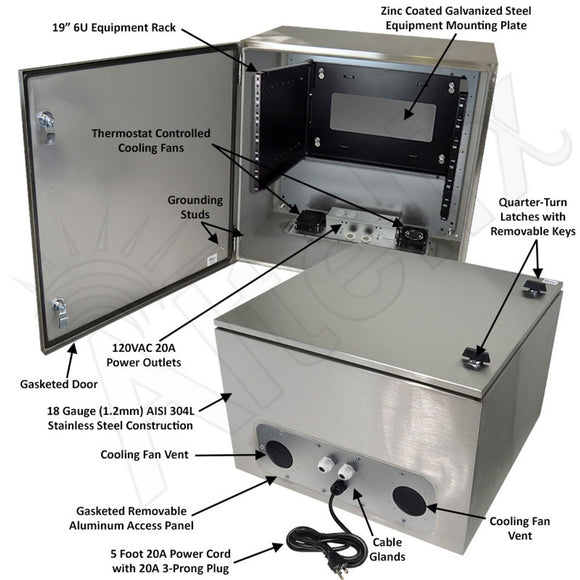

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) AISI 304L stainless steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure. Both the enclosure and door feature a brushed natural finish.

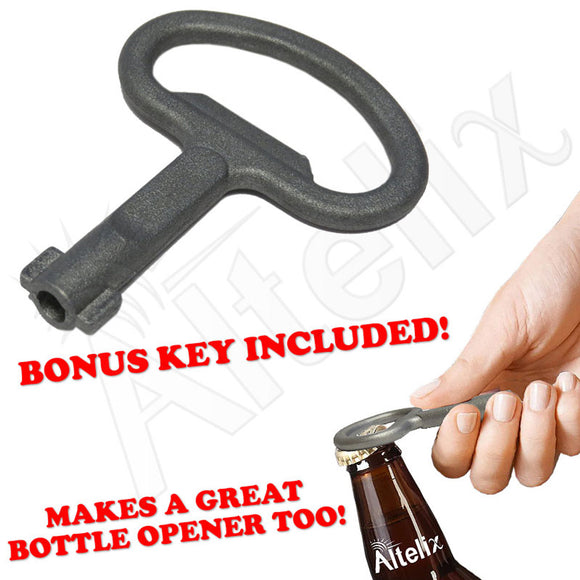

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

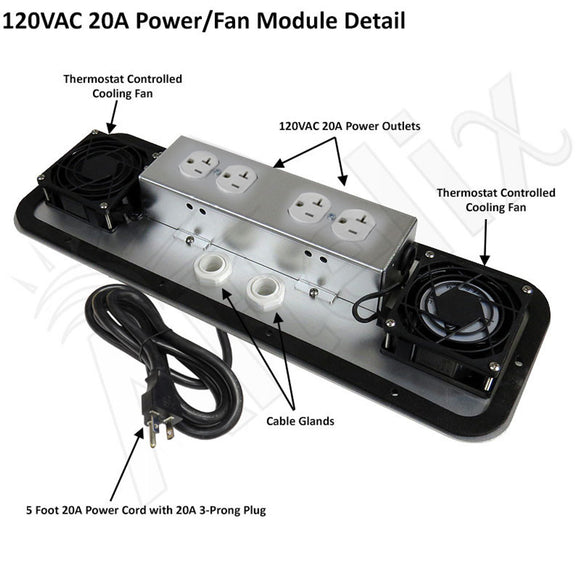

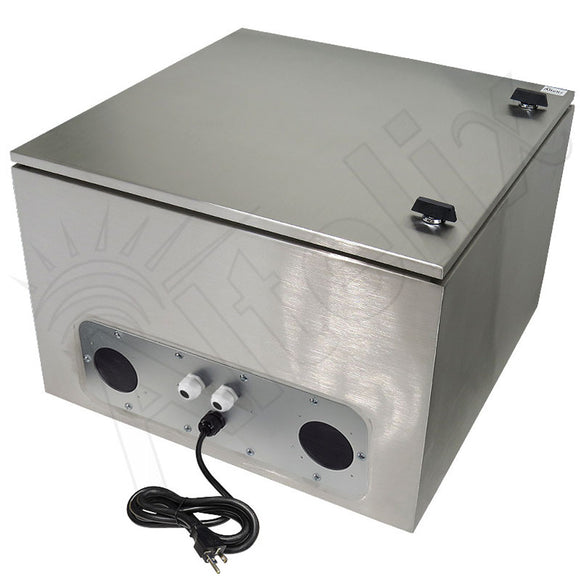

120VAC 20A Removable Power and Fan Module
The NX242416VFA1C-20A-R6U features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC 20A power outlets (4 outlets total) and a pre-wired 20A 5 foot power cord with a 3-prong plug, so no additional wiring is required.

Dual Cooling Fans Ventilation
This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use.

This enclosure is also available with a lower fan turn-on temperature of 85°F (30°C). See NX242416VFA1C-20A-85-R6U.

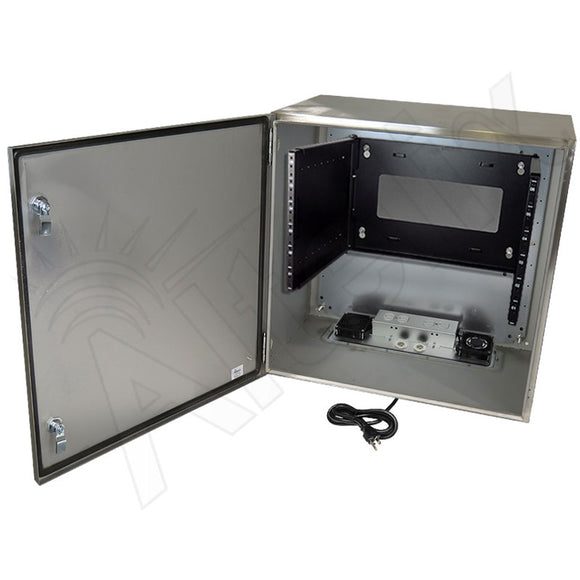

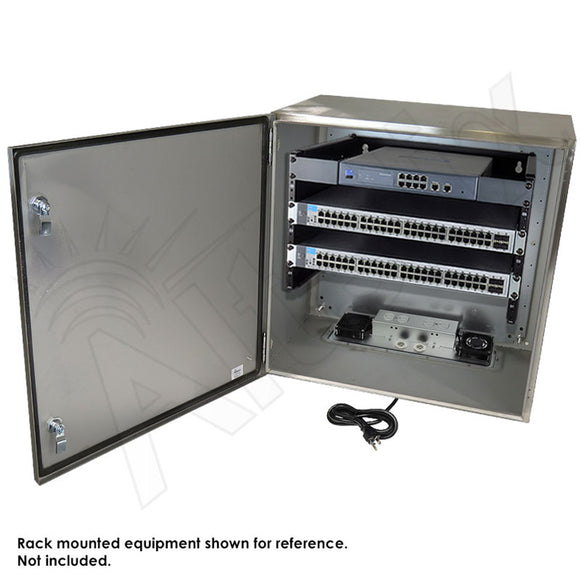

Internal 6U 19" Equipment Rack
The NX242416VFA1C-20A-R6U features a standard 19" 6U equipment rack. It is designed to accommodate most rack mountable UPS power systems. Additional equipment that can be mounted include network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique sire requirements.

Installation Note: The max. depth of the 6U rack is 10" (254mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

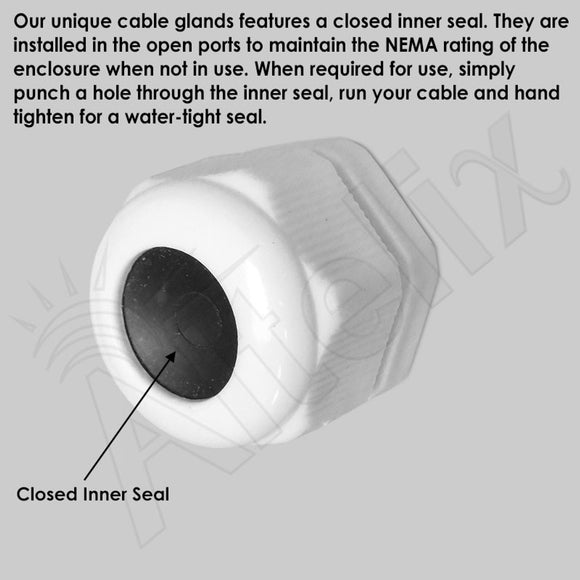

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
