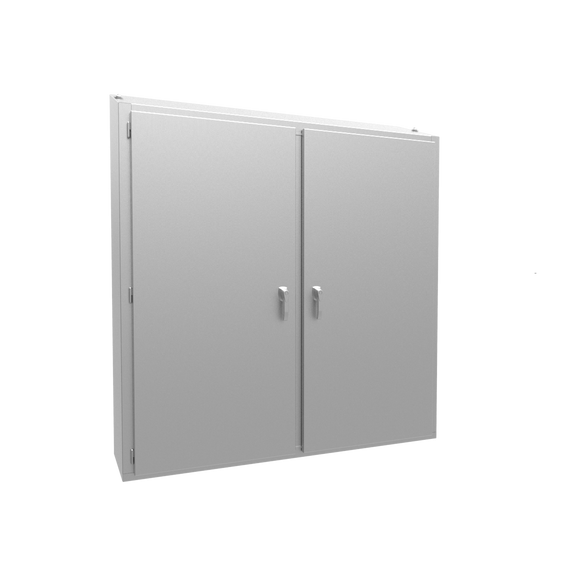

Type 4X Sloped Top Stainless Steel Freestanding 2STFS Series

Hammond Manufacturing SKU: 2STFS747512SS


Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.


  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for larger applications.
  • 20° sloped top prevents water from resting on top of enclosure.


  • UL 508A Type 3R, 12, 4, 4X
  • CSA Type 3R, 12, 4, 4X
  • Complies with
    • NEMA Type 3R, 12, 13, 4, 4X
    • IEC 60529, IP66
  • Appropriate components are required to maintain these standards.


  • Formed from 12 gauge 304 or 316L stainless steel with smooth, continuously welded seams.
  • Flange trough collar (FTC) around door opening excludes liquids and contaminants.
  • Heavy duty lifting eyes are anchored into reinforced top corners.
  • Removable doors are secured with bullet style, heavy duty, lift off hinges.
  • Formed 10 gauge steel inner panel is provided on collar studs.
  • Panel supports are provided.
  • Center post is removable, providing easy panel installation.
  • Heavy duty three point latching mechanism with heavy duty roller ends is provided for ease of door closing.
  • Seamless poured-in place gasket.
  • Stainless steel door handles complete with padlock hasp.
  • A provision for mounting fluorescent lighting is provided.
  • A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door.
  • A literature pocket is provided for the inside of the door.


  • Door and enclosure are natural stainless steel with a smooth, brushed finish..
  • Inner panel is finished in white powder coating.


304 S.S. 316 S.S. Enclosure Panel
Part Number Part Number H1 H2 W D H W
2STFS747512SS 2STFS747512S16 74.13 79.49 75.13 12.13 68.00 68.00
2STFS747518SS 2STFS747518S16 74.13 79.49 75.13 18.13 68.00 68.00
2STFS747524SS 2STFS747524S16 74.13 79.49 75.13 24.13 68.00 68.00
