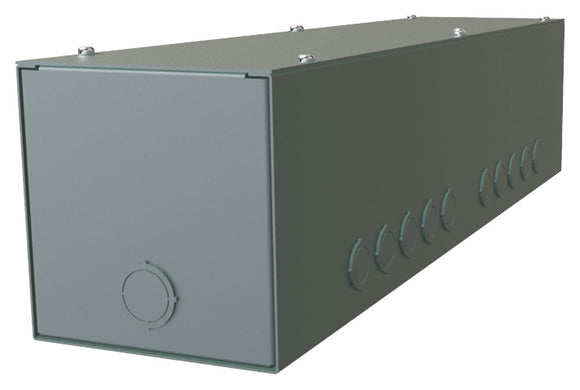

Type 1 Gutter Trough CGT Series

Type 1 Gutter Trough CGT Series

$20.20

SKU: CGT1244 Hammond Manufacturing

Description

Application

  • Designed for use as a junction or pull box.

Standards

  • UL870 Type 1
  • cUL Type 1
  • Complies with
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge steel
  • Mounting holes on back of enclosure
  • Flat cover is secured with screws
  • Two grounding point embosses on enclosure body

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.

Part Details

Click part number for details (e.g., CAD files, assembly instructions, ship weight)

Units shown: inch. Switch units to: mm

Enclosure
Part No. H D L
CGT1244 4.00 4.00 12.00
CGT1266 6.00 6.00 12.00
CGT1844 4.00 4.00 18.00
CGT1866 6.00 6.00 18.00
CGT2444 4.00 4.00 24.00
CGT2466 6.00 6.00 24.00
CGT3644 4.00 4.00 36.00
CGT3666 6.00 6.00 36.00
CGT4844 4.00 4.00 48.00
CGT4866 6.00 6.00 48.00
