Home
Wireway & Trough

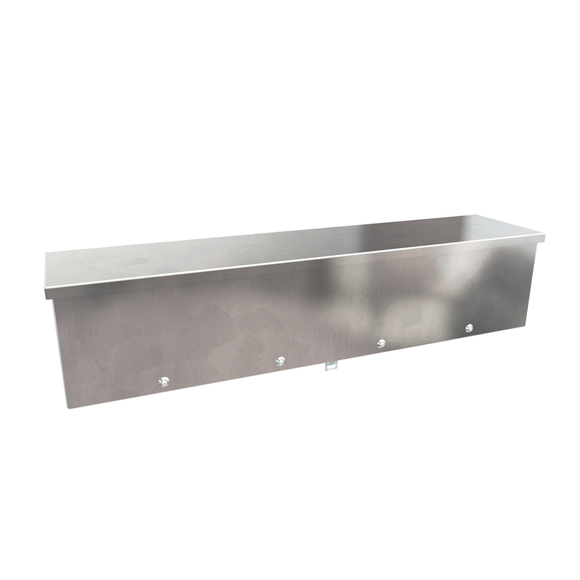

Type 3R Galvanized Wiring Trough C3RWTG Series
Type 3R Galvanized Wiring Trough C3RWTG Series
$27.64
Save
$-27.64
SKU: C3RWT412G
Hammond
Size:
4x4x12
4x4x12
4x4x18
4x4x24
4x4x36
4x4x48
4x4x60
4x4x72
6x6x12
6x6x18
6x6x24
6x6x36
6x6x48
6x6x60
6x6x72
8x8x12
8x8x24
8x8x36
8x8x48
8x8x60
8x8x72
8x8x96
8x8x116
10x10x24
10x10x36
10x10x48
10x10x60
10x10x72
10x10x96
10x10x116
12x12x24
12x12x36
12x12x48
12x12x60
12x12x72
12x12x84
12x12x96
12x12x116
Rating:
NEMA-3R
NEMA-3R
Material:
Galvanized Steel
Galvanized Steel
4x4x12 / NEMA-3R / Galvanized Steel - $27.64
4x4x18 / NEMA-3R / Galvanized Steel - $42.25
4x4x24 / NEMA-3R / Galvanized Steel - $50.86
4x4x36 / NEMA-3R / Galvanized Steel - $73.54
4x4x48 / NEMA-3R / Galvanized Steel - $93.06
4x4x60 / NEMA-3R / Galvanized Steel - $116.35
4x4x72 / NEMA-3R / Galvanized Steel - $139.74
6x6x12 / NEMA-3R / Galvanized Steel - $44.29
6x6x18 / NEMA-3R / Galvanized Steel - $71.31
6x6x24 / NEMA-3R / Galvanized Steel - $69.47
6x6x36 / NEMA-3R / Galvanized Steel - $94.61
6x6x48 / NEMA-3R / Galvanized Steel - $125.81
6x6x60 / NEMA-3R / Galvanized Steel - $142.59
6x6x72 / NEMA-3R / Galvanized Steel - $171.32
8x8x12 / NEMA-3R / Galvanized Steel - $74.51
8x8x24 / NEMA-3R / Galvanized Steel - $114.99
8x8x36 / NEMA-3R / Galvanized Steel - $139.19
8x8x48 / NEMA-3R / Galvanized Steel - $169.75
8x8x60 / NEMA-3R / Galvanized Steel - $198.45
8x8x72 / NEMA-3R / Galvanized Steel - $226.88
8x8x96 / NEMA-3R / Galvanized Steel - $308.03
8x8x116 / NEMA-3R / Galvanized Steel - $388.97
10x10x24 / NEMA-3R / Galvanized Steel - $174.54
10x10x36 / NEMA-3R / Galvanized Steel - $197.16
10x10x48 / NEMA-3R / Galvanized Steel - $222.01
10x10x60 / NEMA-3R / Galvanized Steel - $279.12
10x10x72 / NEMA-3R / Galvanized Steel - $315.43
10x10x96 / NEMA-3R / Galvanized Steel - $420.70
10x10x116 / NEMA-3R / Galvanized Steel - $524.99
12x12x24 / NEMA-3R / Galvanized Steel - $240.66
12x12x36 / NEMA-3R / Galvanized Steel - $255.76
12x12x48 / NEMA-3R / Galvanized Steel - $273.24
12x12x60 / NEMA-3R / Galvanized Steel - $313.87
12x12x72 / NEMA-3R / Galvanized Steel - $365.16
12x12x84 / NEMA-3R / Galvanized Steel - $426.00
12x12x96 / NEMA-3R / Galvanized Steel - $486.95
12x12x116 / NEMA-3R / Galvanized Steel - $614.39
Description
Application
Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.
Standards
UL870 Type 3R
CSA Type 3R
Complies with
NEMA Type 3R
IEC 60529, IP24
Construction
Formed and spot welded from 14 or 16 gauge galvanized steel
Drip shield top design protects the enclosure against rain, snow or sleet
Embossed mounting holes on back of enclosure
Slip on removable front cover is secured with screws
Padlocking hasp
To fully comply with UL870 - 2008 requirements a bonding stud is provided on the cover and a ground stud is provided in the enclosure
A #10 AWG - 12" grounding strap with crimped on ring terminals is also provided to comply with UL requirements
Finish
Unpainted galvanized steel.
