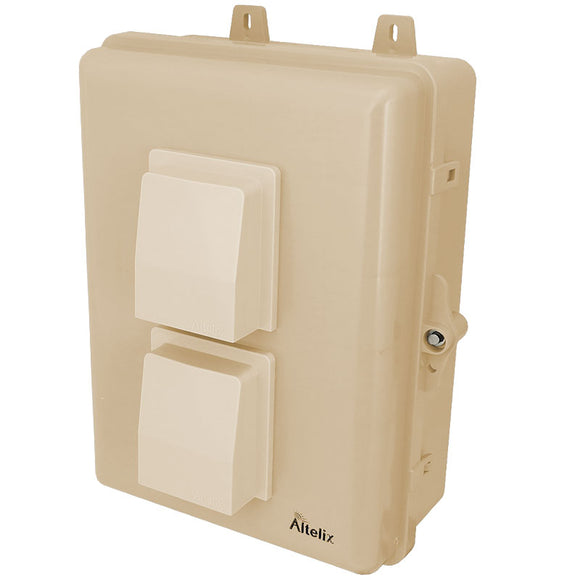

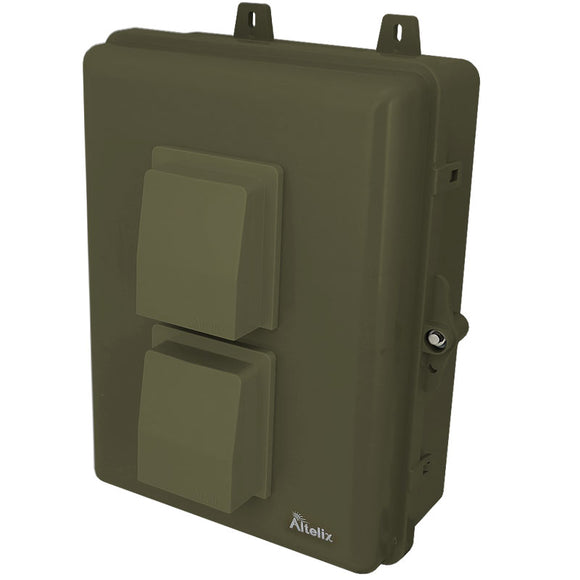

Altelix 12x9x5 PC+ABS Weatherproof Vented Utility Box NEMA Enclosure with Hinged Door

Altelix 12x9x5 PC+ABS Weatherproof Vented Utility Box NEMA Enclosure with Hinged Door

Altelix SKU: NP120905V

$119.72

Lead Time: ESTIMATED Lead Time of 1-2 Business Days' Time of Order Entry

Availability: Out Of Stock As Of 8/16/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.



Features
  • Two (2) 2¬º" Vents with Rain Shields and Screens
  • Includes Cable Grommets Zip Ties, Cable Management Straps and Wall Mounting Hardware
  • Meets NEMA 3R, 3RX and IP24
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • External Dimensions: 13.1 x 10.2 x 5.9 Inches (334 x 259 x 151 mm)
  • Internal Dimensions: 9.4 x 7.5 x 3.7 Inches (239 x 190 x 95 mm)
  • Optional Pole Mount Kit Available
 Applications
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Demarc Enclosure
  • Low Voltage Wiring Junction Box
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi Gear
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment

Vented Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP120905V features two 2¼" inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting small devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Complete with Cable Grommets and Wire Management Straps
This enclosure includes 4 weatherproof cable grommets. Simply punch out the seal and run your cables. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, plastic wire management loops, door locking key and more.

Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it be mounted to poles and fence posts up to 9.5 inches in diameter.

*Interior dimensions represent space available for equipment. See drawing for additional details.
Material Polycarbonate + ABS
Available Colors Gray, Light Ivory, OD Green
Outer Dimensions 13.1 x 10.2 x 5.9 Inches
(334 x 259 x 151 mm)
Inner Dimensions* 9.4 x 7.5 x 3.7 Inches
(239 x 190 x 95 mm)
Weight 2.2 lbs. (1.0 kg)
Ratings Meets or Exceeds NEMA 3R, 3RX and IP24
Flame Rating Meets UL94-V0
