Ordering Information: An equipment mounting plate is NOT included with this new model. Additional models are available with metallic and non-metallic plates. See below for more information.
New and Improved!

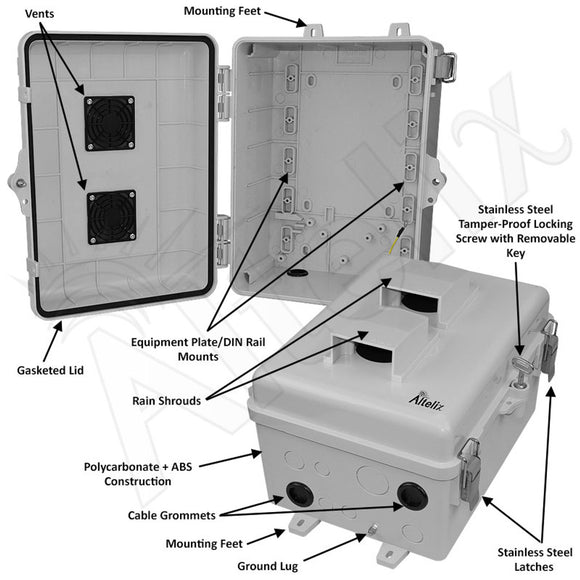

Altelix is excited to offer the newly redesigned NP120907 series enclosures. Some of the new features include:
- Dual stainless steel latches
- Multiple mounting options - (4) external mounting feet and internal mounting points
- Deeper enclosure base
- Increased number of multiple sized knock-out holes provided on bottom of enclosure
- Raised bosses in base for use with optional mounting plates and DIN rail kits

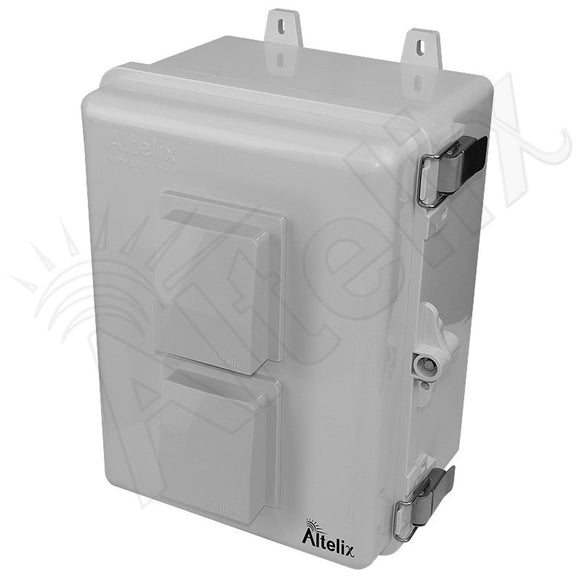

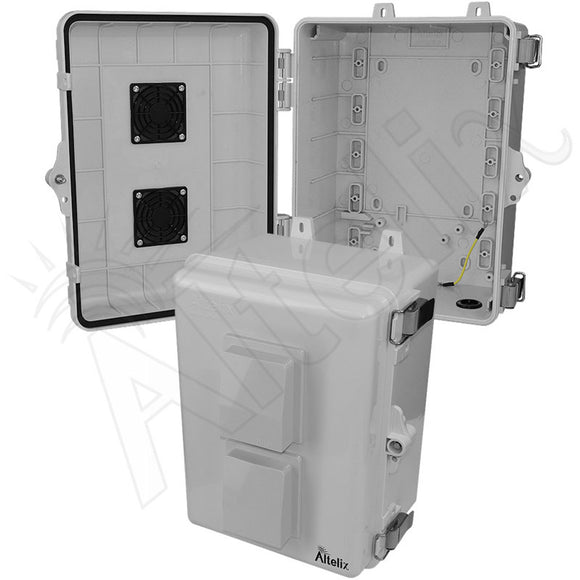

The Altelix NP120907V NEMA enclosure is ideal for protecting devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries. It features an extra deep lid providing additional depth.
Ventilation

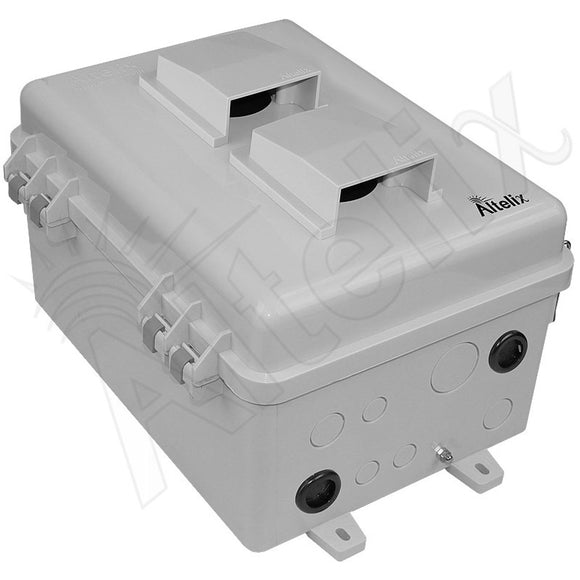

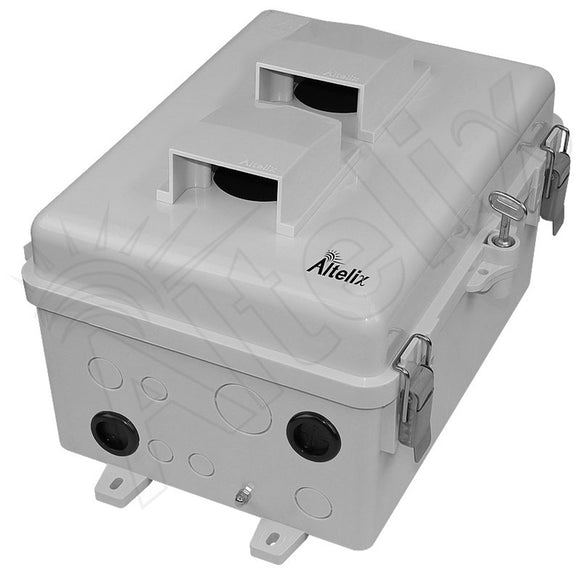

The NP120907V features two vents with rain shields to help expel heat from inside the enclosure. Screens on the inside of the vents can be removed and cleaned as required.
Equipment Mounting Options

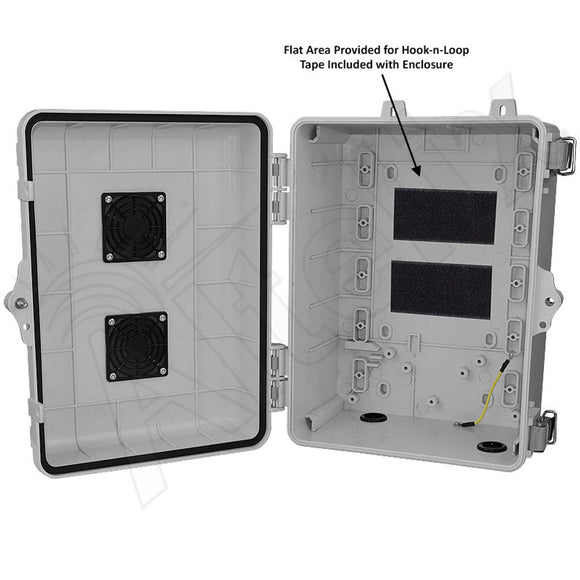

This enclosure provides multiple ways to install equipment. Raised bosses located in the base of this enclosure can be used to mount an equipment plate. These same bosses can also be used to install up to five 35mm Top Hat DIN Rail kits available from Altelix. A large flat section is also provided in the base for use with the hook-n-loop tape included in the accessory kit.
Note: this enclosure is also available with an aluminum equipment mounting plate (see NP120907VP) or a non-metallic PCV equipment mounting plate (see NP120907VM).
RF Transparent Design
The NP120907V is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.
Secure Your Equipment
These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Complete with Cable Grommets and Wire Management Accessories

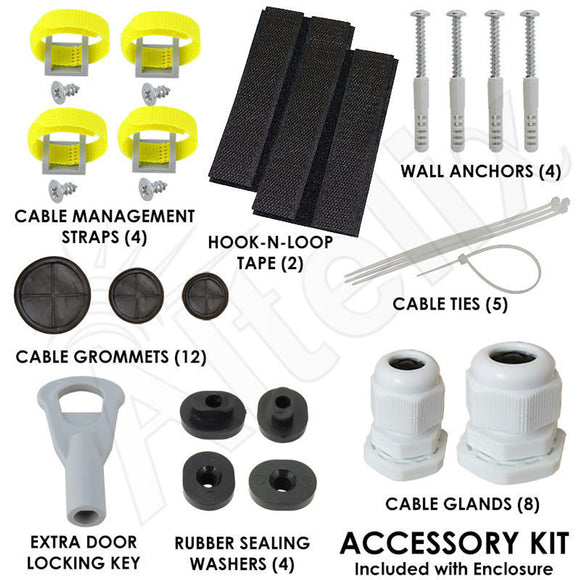

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options

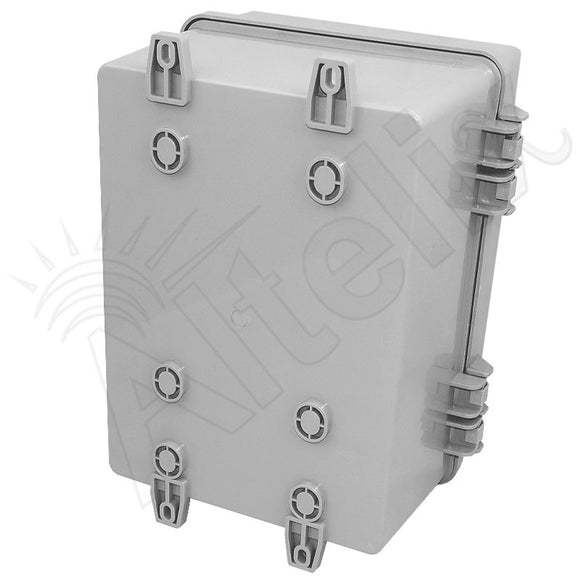

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Material | PC+ABS Polycarbonate / ABS Blend |
Color | Gray |

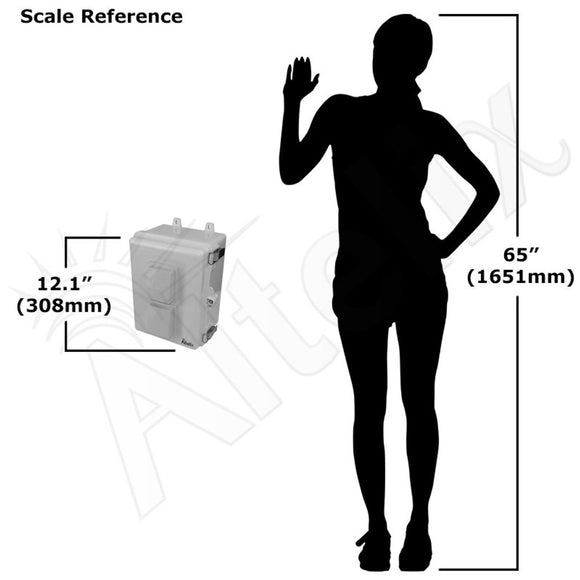

Outer Dimensions (Height x Width x Depth) |
13.0 x 10.2 x 8.2 Inches (332 x 259 x 208 mm) |
Inner Dimensions* (Height x Width x Depth) |
10 x 7.1 x 5.6 inches (254 x 180 x 142 mm) |
Weight | 3.8 lbs. (1.7 kg) |
Ratings | NEMA Type 3R, 3RX / IP24 |
Flame Rating | Meets UL94-V0 |
Industry Certifications | CE |
Knockout Sizes (Diameter) | (3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm) |
*Interior dimensions represent maximum space available for equipment. |
