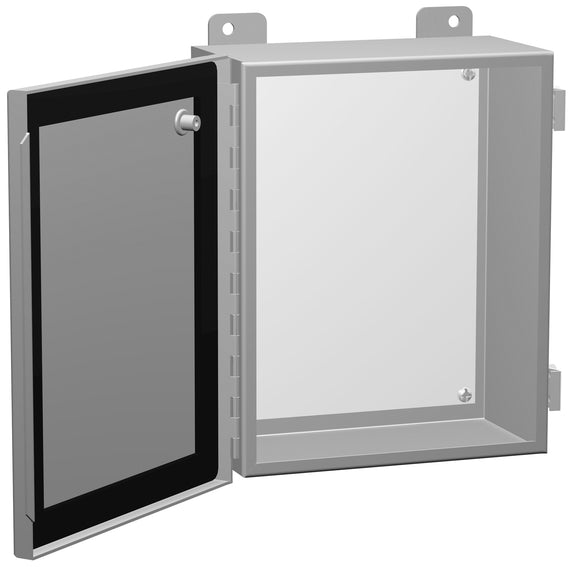

1418 N4 Series - Painted Mild Steel Enclosures with Continuously Hinged Clamped Cover - Includes Inner Mounting Panel

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.  Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Construction

• Formed 14 gauge steel bodies and doors.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Door and body stiffeners are provided in the larger enclosures for extra rigidity.
  Welded brackets provide for enclosure mounting.
• Formed lip on door and enclosure exclude flowing liquids and contaminants.
• Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
• Door is secured with easily operated stainless steel clamps.
• Provision for padlocking.
• Seamless poured-in place gasket.
• A removable 12 gauge inner panel is included.
• Collar studs are provided for mount­ing inner panels.
• A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
• A literature pocket is provided for the inside of the door.

Finish

• Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
• Removable inner panel is finished in white powder coating.



Catalog Spec Sheet



Drawings:

1418N4B6                    1418N4G6                    1418N4CR6

1418N4C6                    1418N4D6                    1418N4AR6

1418N4H6                    1418N4E6                    1418N4J6

1418N4F6                    1418N4K6                    1418N4L6

1418N4B8                    1418N4C8                    1418N4D8

1418N4ER8                 1418N4E8                     1418N4J8

1418N4KR8                 1418N4F8                     1418N4K8

1418N4KK8                 1418N4L8                     1418N4M8

1418N4O8                   1418N4P8                     1418N4S8

1418N4T8                    1418N4C10                  1418N4E10

1418N4K10                  1418N4M10                 1418N4R10

1418N4S10                  1418N4T10                  1418N4E12

1418N4K12                  1418N4L12                  1418N4M12

1418N4P12                  1418N4S12                  1418N4K16

1418N4M16                  1418N4S16                 1418N4T16
