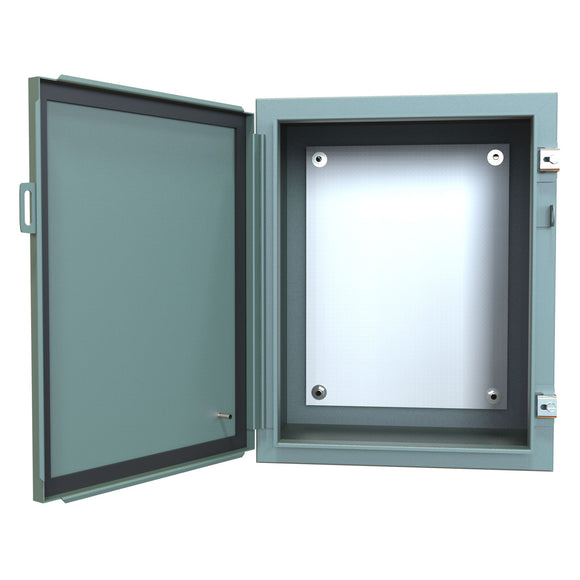

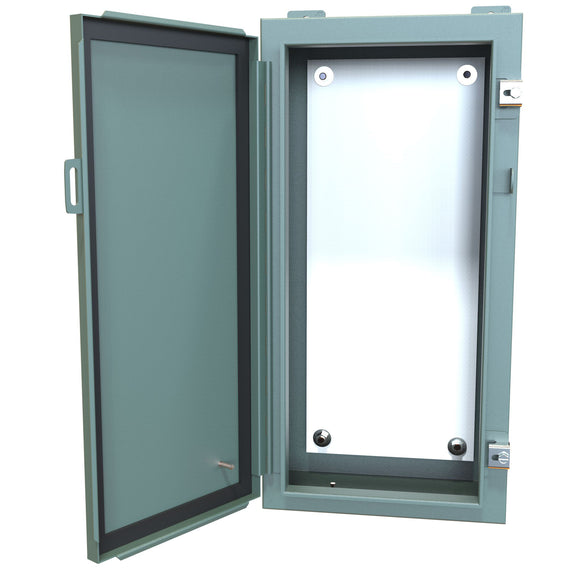

1418 Series - Painted Steel Enclosures with Continuous Hinge and Clamped Cover - Includes Inner Panel image

1418 Series - Painted Steel Enclosures with Continuous Hinge and Clamped Cover - Includes Inner Panel

Hammond Manufacturing

$207.72
Product Information
SKU: 1418A6 Weight: 34.0 lb Rating : NEMA-12, NEMA-13 Material : Painted Steel



Application

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • Provides a degree of protection from falling dirt, dust, oil and water.



Construction

  • Formed 14 gauge steel bodies and doors.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Door and body stiffeners are provided in the larger enclosures for extra rigidity.
    Welded brackets provide for enclosure mounting.
  • Formed lip on door and enclosure exclude flowing liquids and contaminants.
  • Continuously hinged door may be removed by pulling the hinge pin.
  • Door is secured with easily operated stainless steel clamps.
  • Provision for padlocking.
  • Oil resistant gaskets are permanently secured.
  • A removable 12 gauge inner panel is included.
  • Collar studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
  • A literature pocket is provided for the inside of the door.

    Finish

    • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
    • Removable inner panel is finished in white powder coating.



    Catalog Spec Sheet
