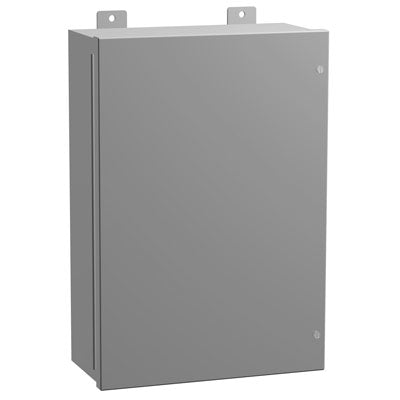

Hammond 1418J Series - Painted Mild Steel Enclosures with Continuously Hinged Screw Cover - Includes Inner Mounting Panel

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.  Provides a degree of protection from falling dirt, dust, oil and water.

Construction

• Formed from 14 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Door and body stiffeners are provided in the larger enclosures for extra rigidity.
• Welded brackets provide for enclosure mounting.
• Continuously hinged cover is secured with plated screws, threaded into sealed wells.
• Oil resistant gaskets are permanently secured.
• A removable 12 gauge inner panel is included.
• Collar studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
• A literature pocket is provided for the inside of the door.

Finish

• Cover and enclosure are phosphat­­ized and finished in ANSI 61 gray recoatable powder coating.
• Removable inner panel is finished in white powder coating.



Catalog Spec Sheet



Drawings:

1418JB7                    1418JC7                    1418JD7

1418JE7                    1418JJ7                     1418JF7

1418JK7                    1418JL7                     1418JC9

1418JD9                   1418JE9                     1418JJ9

1418JK9                   1418JF9                     1418JM9

1418JL9                   1418JO9                     1418JP9

1418JJ11                  1418JL11                   1418JS11

1418JK13                 1418JM13
