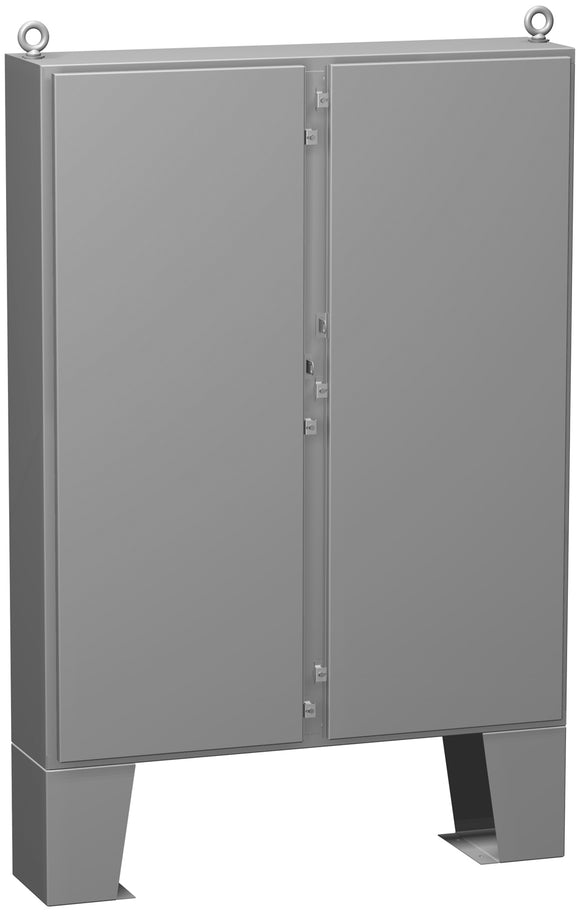

1422 N4 FM Series - Painted Steel Double-Door Enclosures with Clamped Cover and Floor-Mounting Feet - Includes Inner Mounting Panel

Hammond Manufacturing

$2,282.99
Product Information
SKU: 1422N4B10F Weight: 475.0 lb Rating : NEMA-3R, NEMA-4, NEMA-12 Material : Painted Steel

Application

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Construction

  • Enclosures are formed 12 or 10 gauge steel as noted.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Body stiffeners are provided in the larger enclosures for extra rigidity.
  • Heavy duty lifting eyebolts are provided with reinforcing support angles.
  • Center post is removable for easy installation of the inner panel.
  • Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
  • Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
  • Doors are secured with heavy duty stainless steel clamps.
  • Provision for padlocking.
  • 12" floor stands are welded to the enclosure.
  • Seamless poured-in place gasket.
  • Provision for light kit mounting.
  • A removable 10 gauge inner panel is included.
  • Panel supports are provided for easy panel installation.
  • Collar studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
  • A literature pocket is provided for the inside of the door.

Finish

  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
  • Removable white inner panel is finished in white powder coating.



Catalog Spec Sheet



Drawings:

1422N4B10F

1422N4D12F

1422N4E12F

1422N4F12F

1422N4F24F
